Iron Age grate part no.: MA5-20I21
TDS grate part no.: IA-MIN-0520-BF

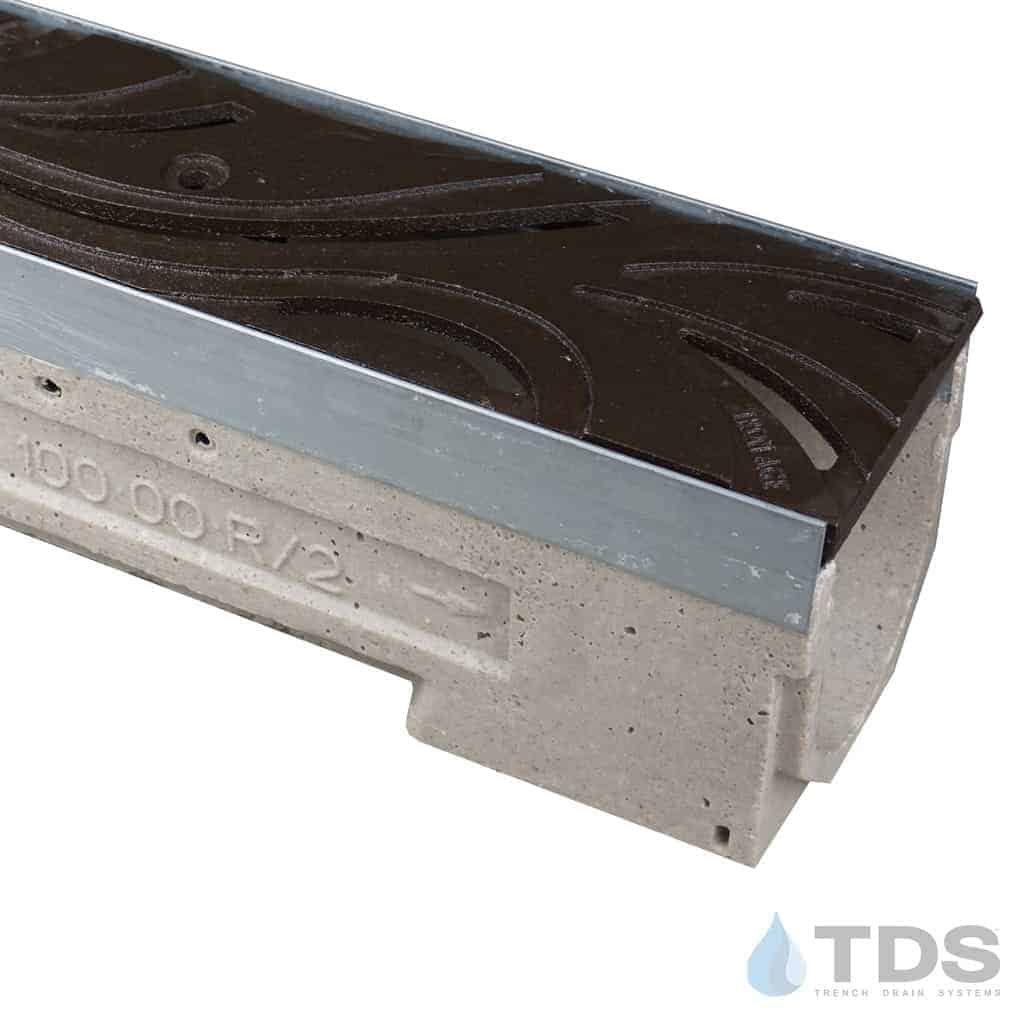

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100K channel with integral galvanized steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws. Installation hardware is included.
Ulma's U100K channel fits Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm. This kit has the Minnione pattern, which is available
in either the raw casting or Baked on Oil Finish (BoOF).
