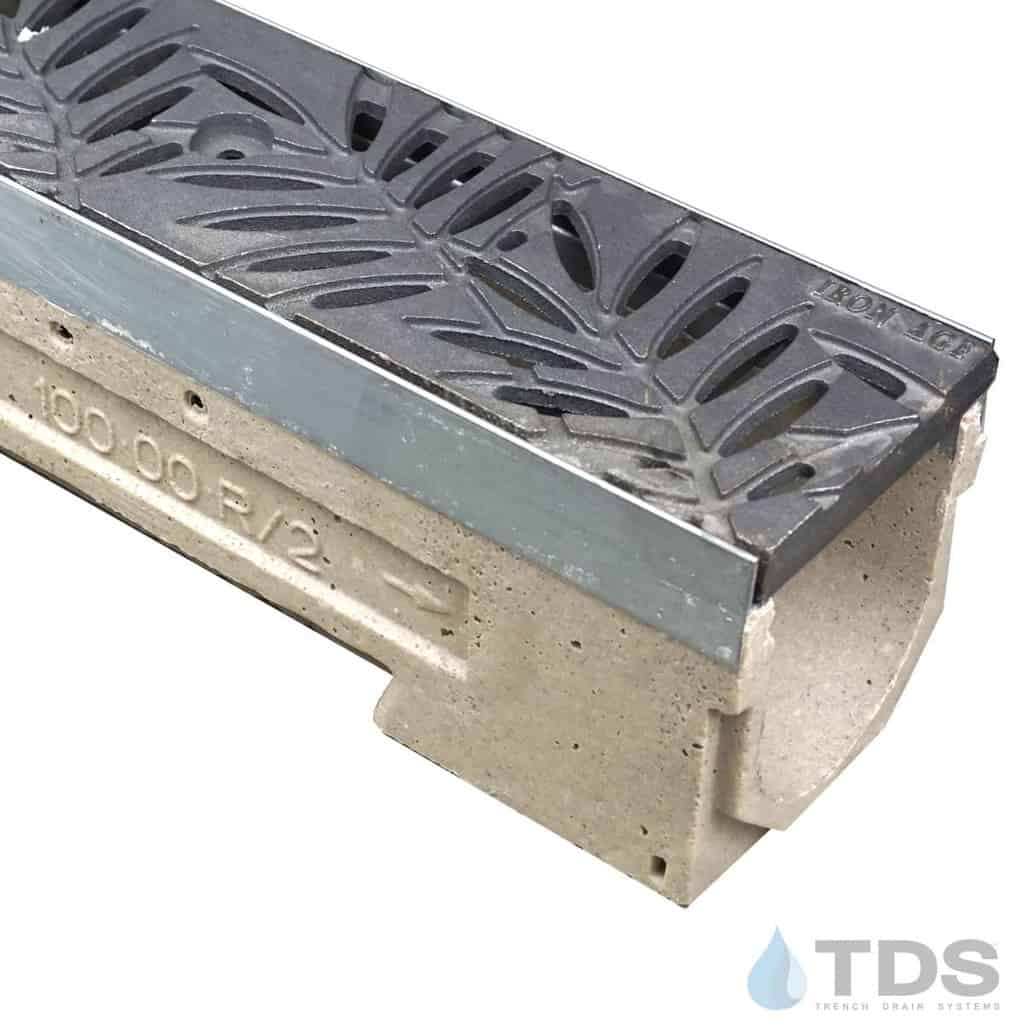

ULMA U100K Drainage Kit with Iron Age Locust Grate | Natural

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: U100K

Grate Load Class: Class B

Grate Pattern: LOCUST

Grate Pattern Style: NATURE

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Iron Age grate part no.: LA5-20I21
TDS grate part no.: IA-LOC-0520

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% Pre-sloped channels to collect rain water in 1 meter long units. Locking system consists of locking bar CS 100 and screws.

Decorative cast iron trench grate designed to fit the ULMA drain system and others. The Locust pattern is available in either the raw casting or Baked on Oil Finish (BooF).
