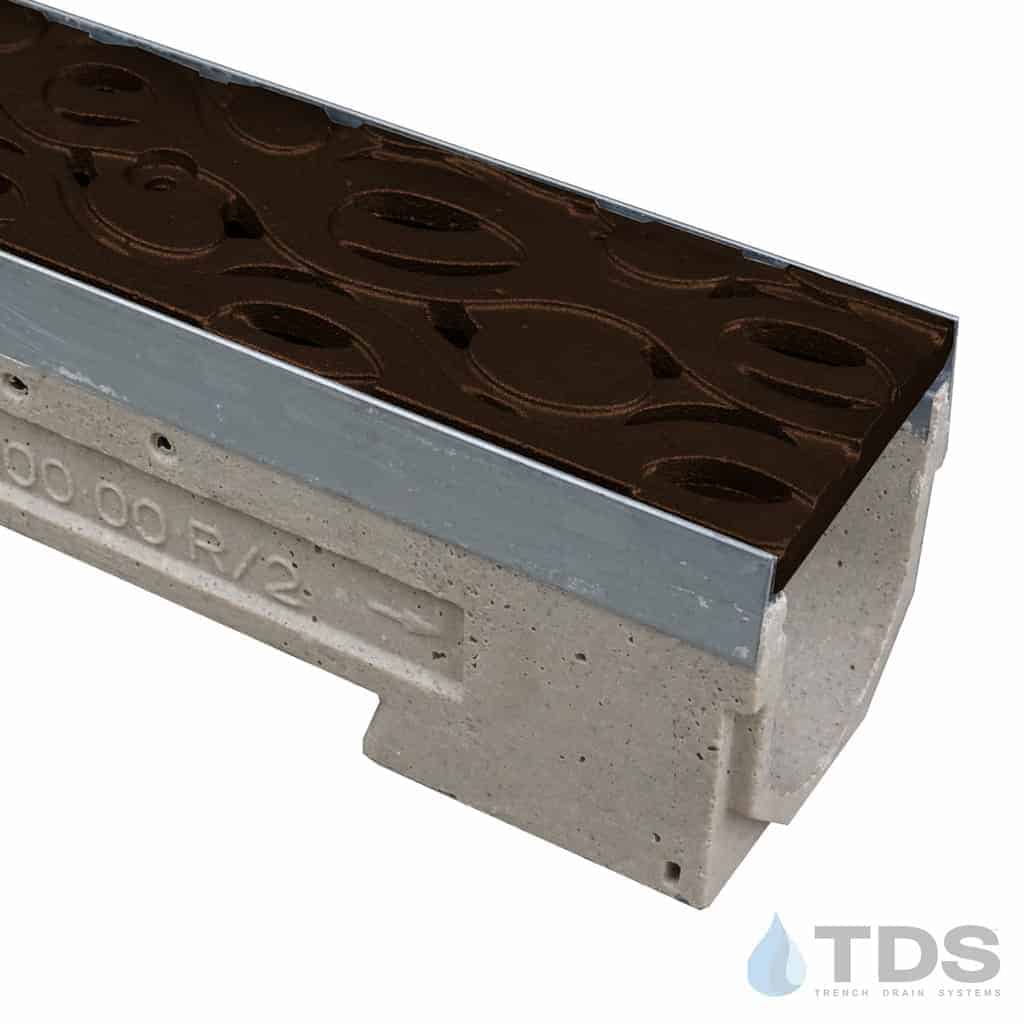

ULMA U100K Drainage Kit with Iron Age Janis Grate | Baked on Oil Finish

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: ULMA and Iron Age Designs

System: U100K

Grate Load Class: Class B

Grate Pattern: JANIS

Grate Pattern Style: ABSTRACT

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Iron Age part no.: IA5-20I21
TDS grate part no.: IA-JAN-0520-BF

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100K channel with integral galvanized steel edging.  It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm.  Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws.  Installation hardware is included.

Ulma's U100K channel fits Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm.  This kit has the Janis pattern, which is available

in either the raw casting or Baked on Oil Finish (BooF).
