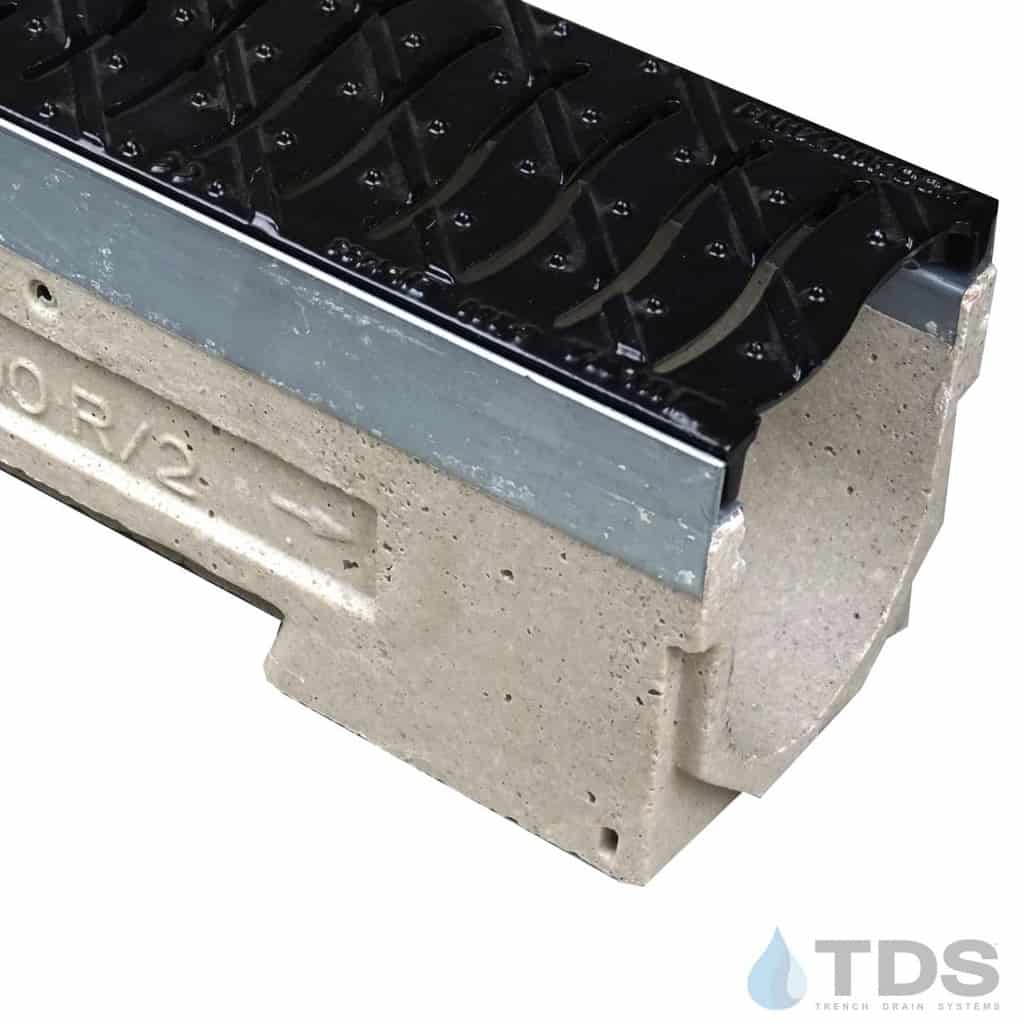

ULMA U100K Drainage Kit with 480 Ductile Iron Heel-Proof Grate

ULMA U100K Drainage Kit with 480 Ductile Iron Heel-Proof Grate

  • U100KM-FNHX100KCCM-1 cast iron heel-proof grate polymer concrete galv edge ULMA channel
1 1

Drainage Kits

U1K-480-01

ULMA grate part no.: FNHX100KCCM TDS grate part no.: 480
$417.06 USD
$0.00 USD $417.06 USD
Sale Sold out
Kit Meter Length
View full details

Additional Information

  • Grate Width: 4.81"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: ULMA
  • System: U100K
  • Grate Load Class: C
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Galvanized
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

ULMA grate part no.: FNHX100KCCM
TDS grate part no.: 480

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rainwater in 1 meter long units. The locking system consists of a locking bar CS 100 and screws.
