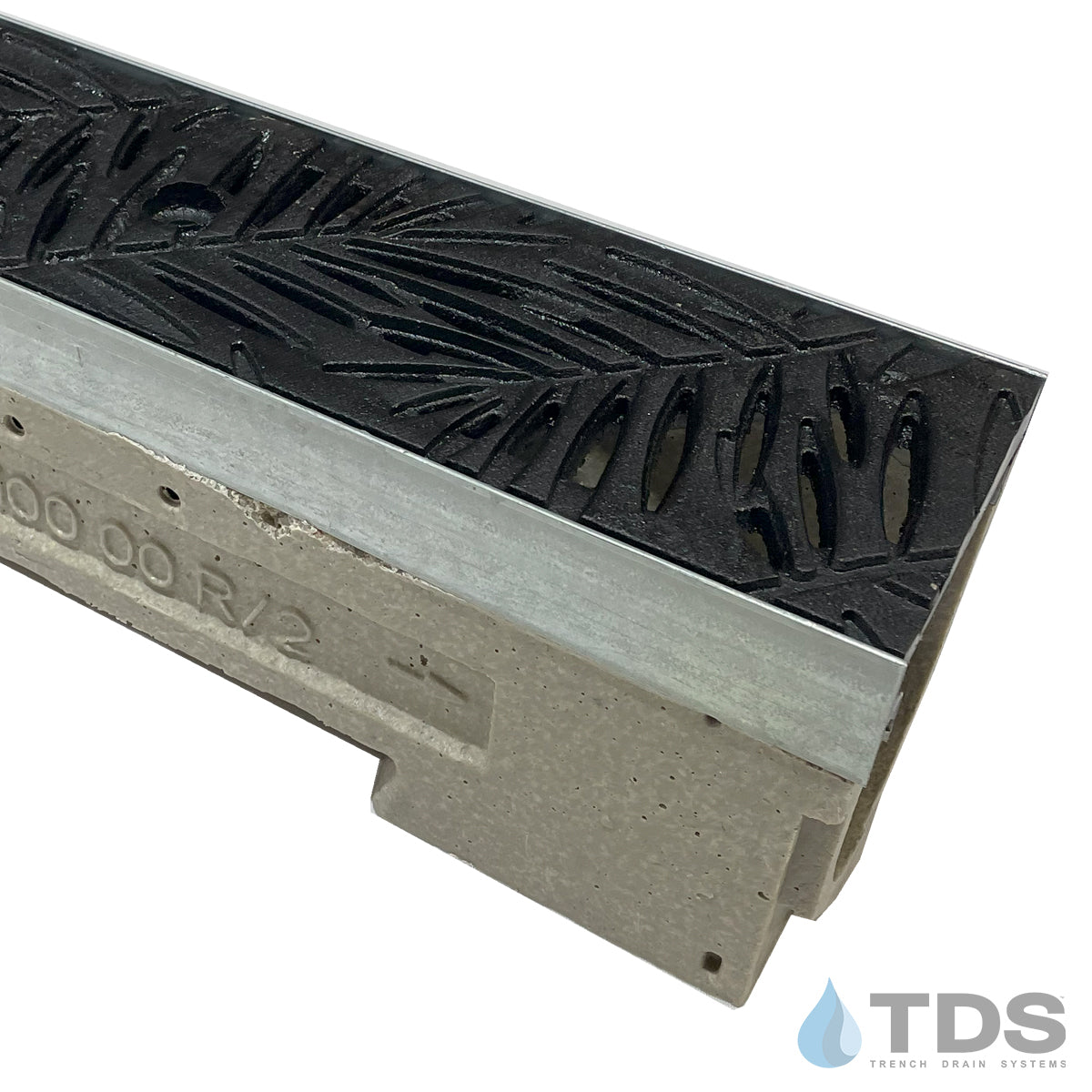

ULMA U100K Drainage Kit w/ TDS Bronze Age Fern Ductile Iron Grate-RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100K

Grate Load Class: Class C

Grate Pattern: FERN

Grate Pattern Style: NATURE

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rainwater in 1-meter long units. The locking system consists of a locking bar CS 100 and screws.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Specification Sheet for BA-FERN-0520

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

Grating is also available in a Baked-on Oil Finish. Request your quote today!
