ULMA U100K Drain Channel with Galvanized Edging w/o Grate

ULMA U100K Drain Channel with Galvanized Edging w/o Grate

Skip to product information
1 of 1

Drainage Kits

SKU:U1K-EXT

Regular price $69.59 USD
Regular price $0.00 USD Sale price $69.59 USD
Sale Sold out
Kit Meter Length
View full details

Additional Information

  • Grate Width: 4.81"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Galvanized Steel
  • Manufacturer: ULMA
  • System: U100K
  • Grate Load Class: B
  • Grate Pattern: Argo
  • Grate Pattern Style: Abstract
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Galvanized
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

Grates are sold separately for this particular kit.

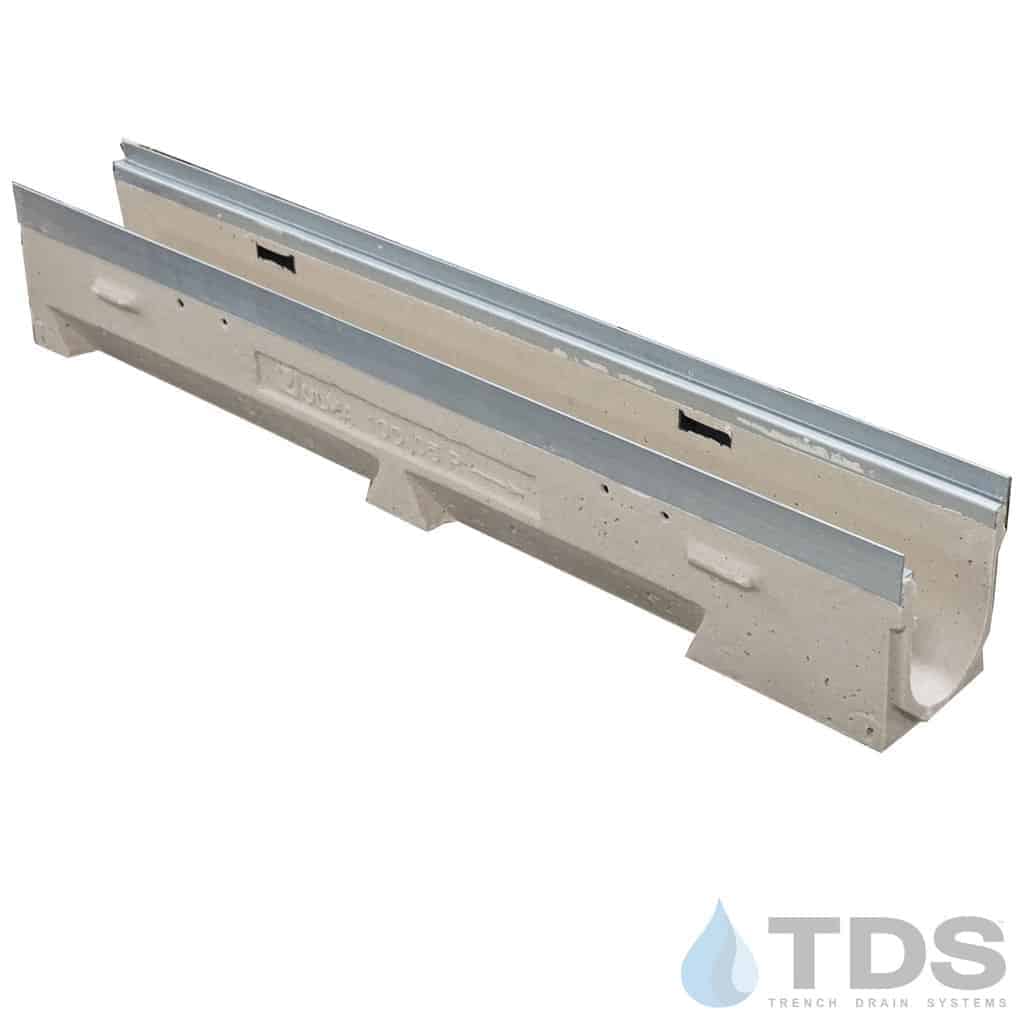

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100K channel with integral galvanized steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws (sold separately). Installation hardware and end caps are included.

Ulma U100K channel schematic diagram
ULMA U100K Channel Dimensions

ULMA's U100K channel is compatible with ULMA grates as well as many Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm.
