ULMA MV+200K w/ 661 Ductile Iron 9X20 Slotted Grate Class E

ULMA MV+200K w/ 661 Ductile Iron 9X20 Slotted Grate Class E

Skip to product information
1 of 4

Drainage Kits

SKU:MV+200K-661-EXT

Each kit includes:
  • Channels with galvanized edge
  • Grates
  • Installation Chairs
  • End Cap/ End Outlet (not included on half meter option)
Regular price $260.81 USD
Regular price $0.00 USD Sale price $260.81 USD
Sale Sold out
Kit Meter Length
View full details

Additional Information

  • Grate Width: 9.00"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: ULMA
  • System: MV+200K
  • Grate Load Class: E
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Galvanized
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Transportation

Description

Each kit includes:

  • Channels with galvanized edge
  • Grates
  • Installation Chairs
  • End Cap/ End Outlet (not included on half meter option)

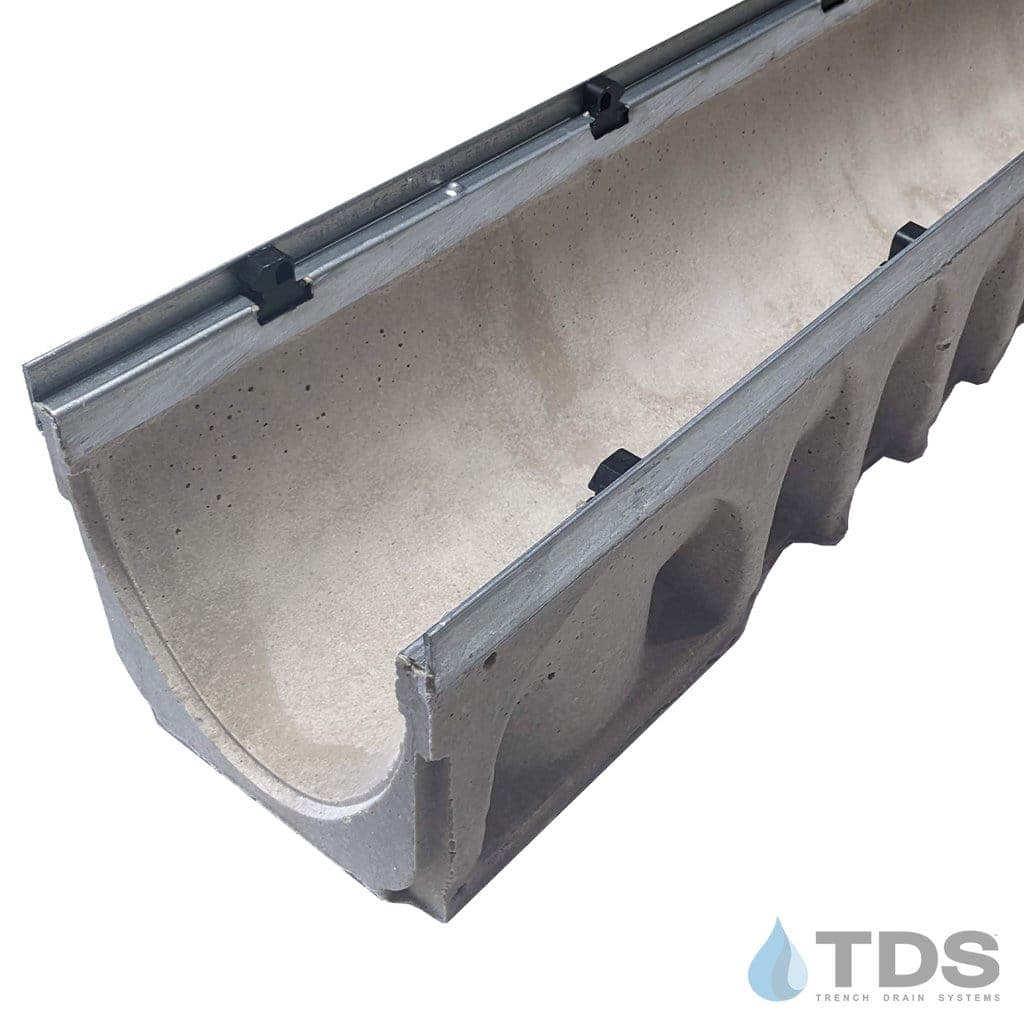

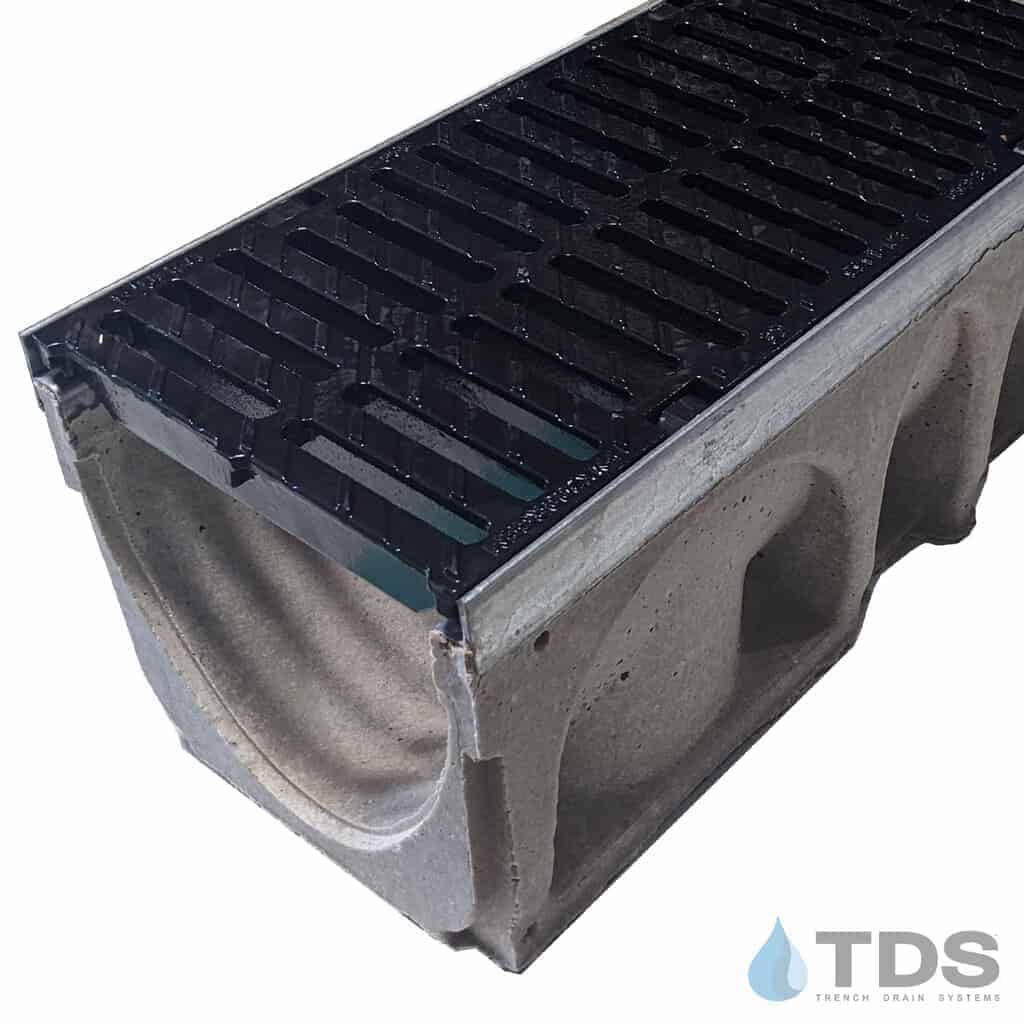

ULMA MultiV+200 linear drainage system with stainless edging and 661 slotted heel-proof and ADA-compliant ductile iron grate is an ideal water management system for heavy load traffic. This trench drain system is made with a self-cleaning V-shaped polymer concrete base designed to move water and debris away quickly.

Each 1-meter channel provides a .5% slope. An external width of 9.29" (236mm), internal width of 7.87" (200mm), and variable heights make this drain channel suitable for a variety of applications including parking lots, and commercial, or pedestrian traffic areas.

Each kit includes:

  • Channels with galvanized edge
  • Grates
  • Installation Chairs
  • End Cap/ End Outlet (not included on half meter option)

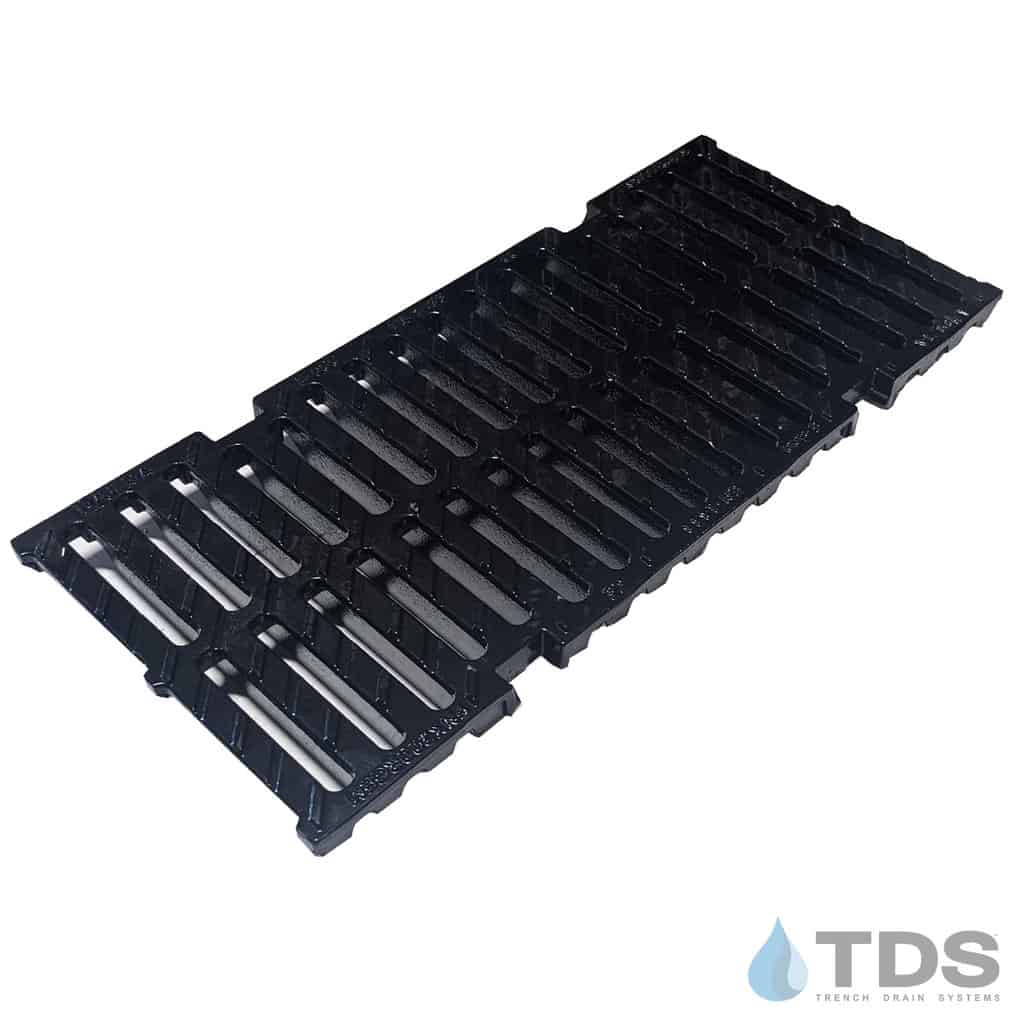

Grating

  • ULMA 661 - (9" Wide)
  • Ductile Iron Slotted - (Load Class D400, EN1433 standard)

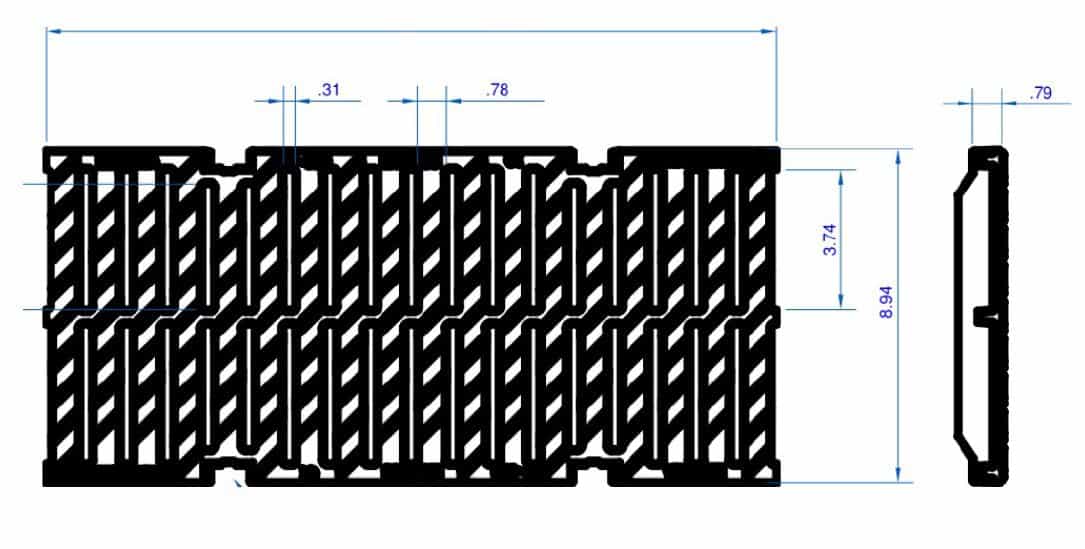

  • Actual Dimensions: 8.93″ [227 mm] x 19.60″ [498 mm] x .78″ [20 mm]
  • Water Flow Area: 920 cm²/lm
  • Rapidlock® system

Specification Sheet for ULMA 661 / FNX200RGEM
