ULMA MV+200KX w/ 658 HP Ductile Iron 9X20 Slotted Grate Class C

Grate Width: 9.00"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA

System: MV+200KX

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

Each kit includes:

• Channels with stainless edging
• Grates
• Installation Chairs
• End Cap/ End Outlet (not included on half meter option)

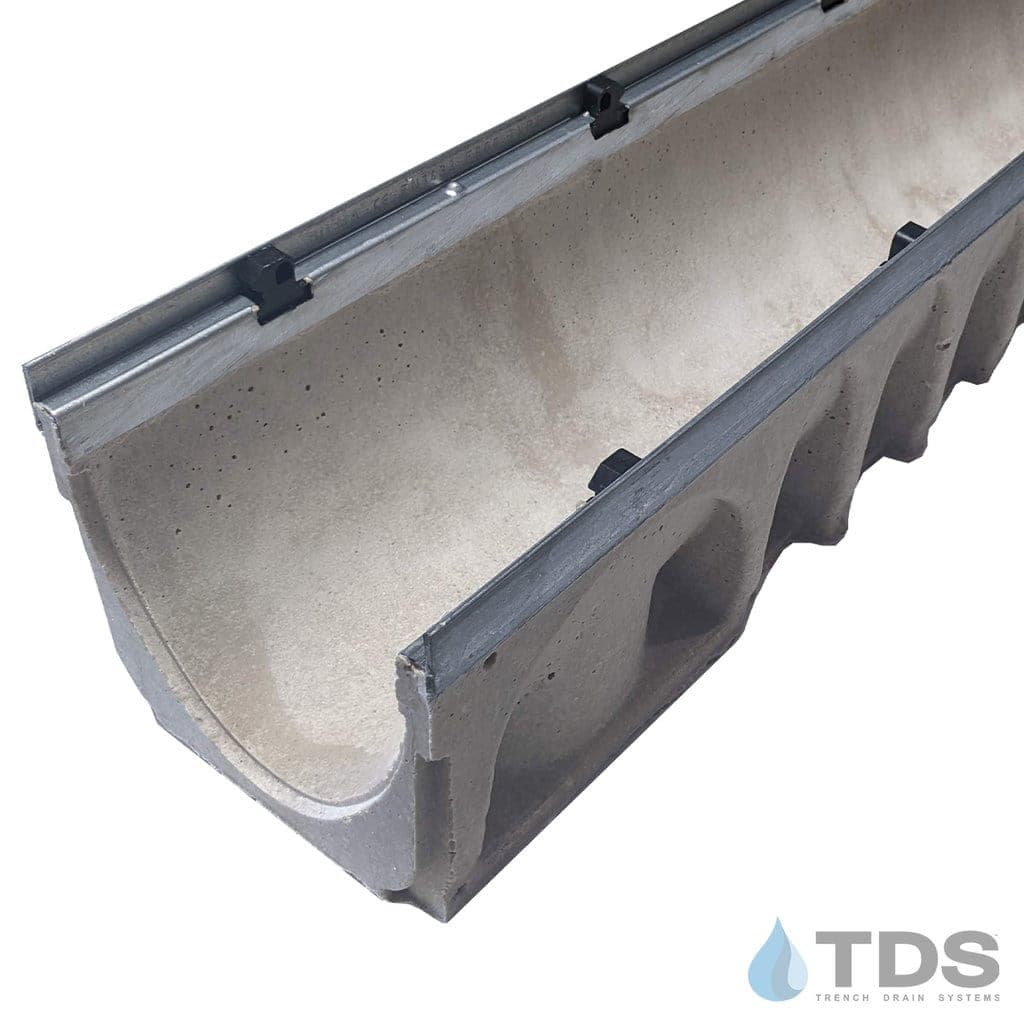

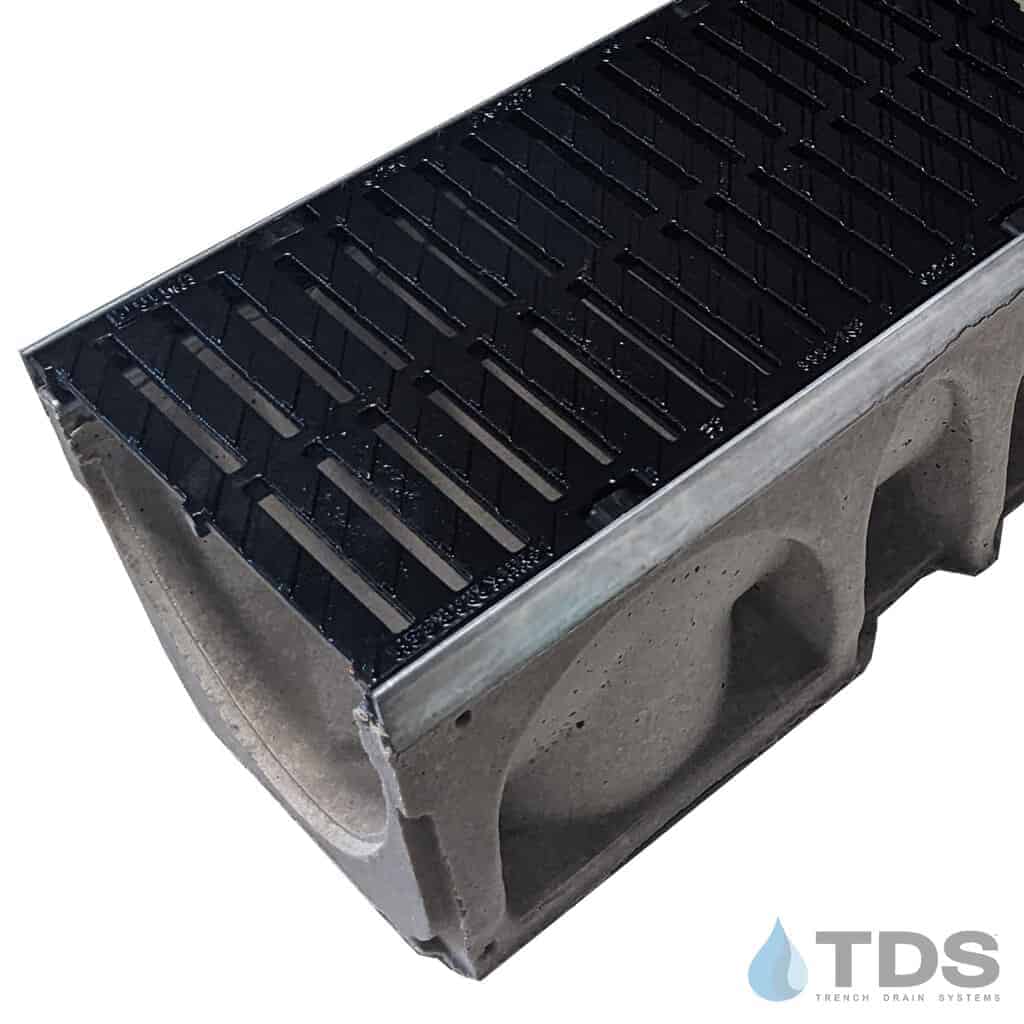

ULMA MultiV+200 linear drainage system with stainless edging and 658 slotted heel-proof ductile iron grate is an ideal water management system for light commercial traffic. This trench drain system is made with a self-cleaning V-shaped polymer concrete base designed to move water and debris away quickly.

Each 1-meter channel provides a .5% slope. An external width of 9.29" (236mm), internal width of 7.87" (200mm) and variable heights make this drain channel suitable for a variety of applications including parking lots, commercial, or pedestrian traffic areas.

Each kit includes:

• Channels with stainless edging
• Grates
• Installation Chairs
• End Cap/ End Outlet (not included on half meter option)

Grating

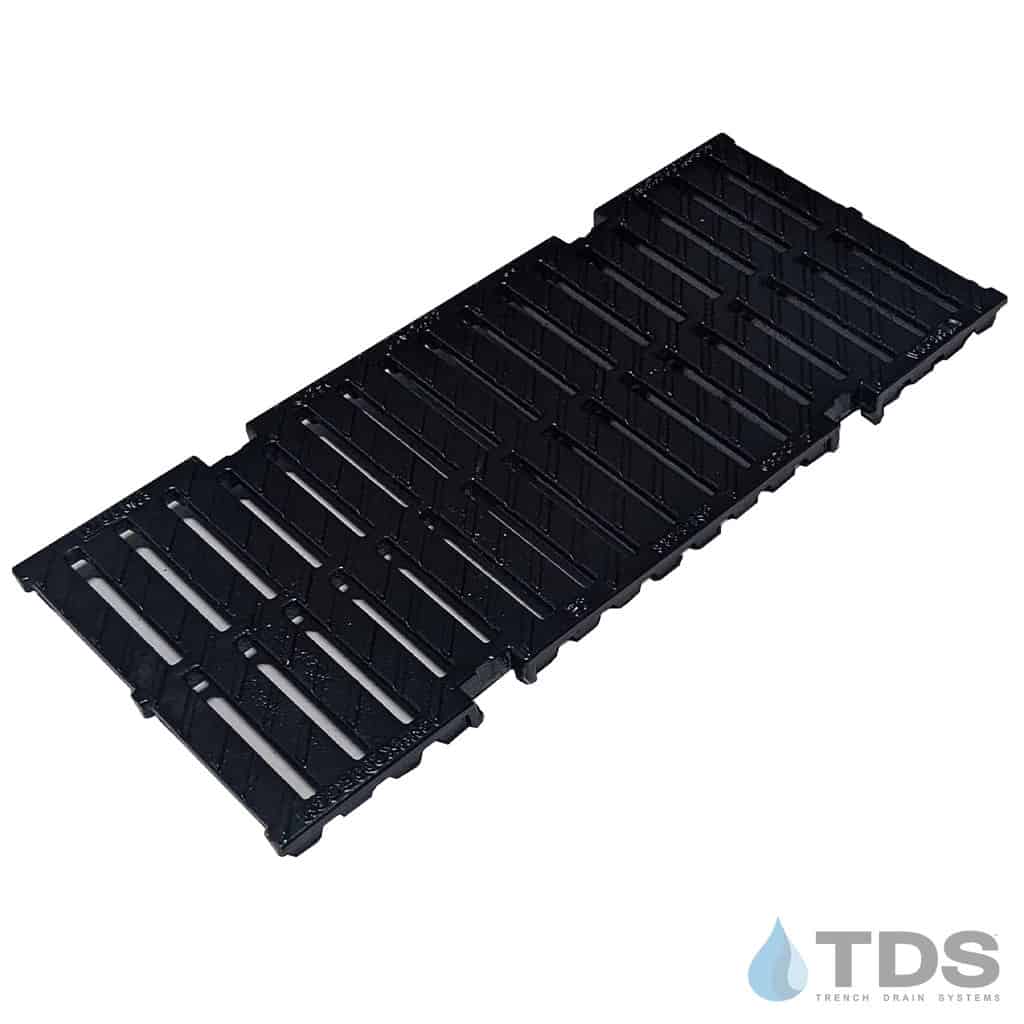

• ULMA 658 - (9" Wide)
• Ductile Iron Heelproof Slotted - (Load Class C250, EN1433 standard)

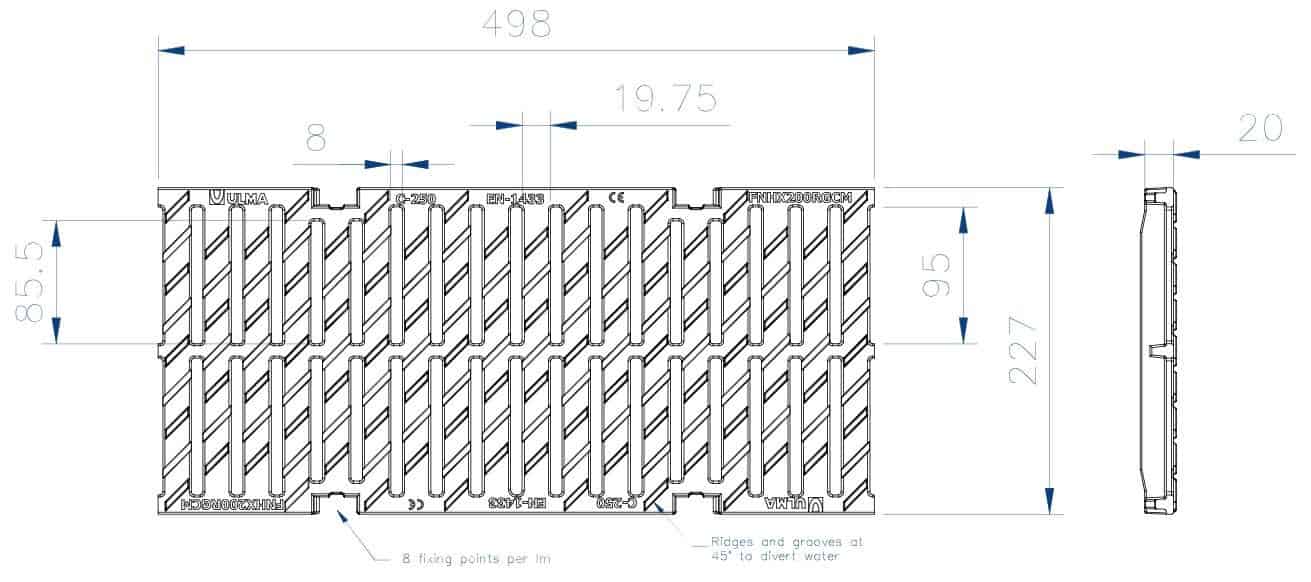

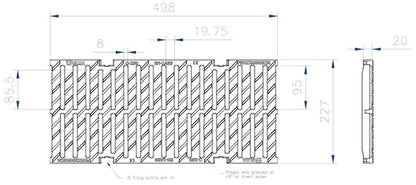

• Actual Dimensions: 8.93″ [227 mm] x 19.60″ [498 mm] x .78″ [20 mm]
• Water Flow Area: 535 cm²/lm
• Rapidlock® system

Specification Sheet for ULMA 658 / FNHX200RGCM
