Kit includes channel(s), Class B grates, Installation hardware and solid end caps

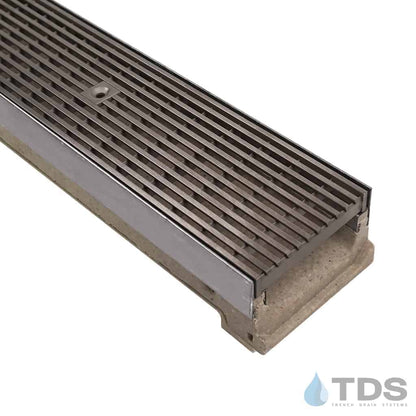

This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging. It has an external width of 130mm (5.12"), an internal width of 100mm (3.94"), and is supplied with an overall height of 80mm (3.15"). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included. Outlets are through the bottom of the channel. Each channel has one 4" diameter knock-out (Drill-out).
This kit includes the 316L Stainless Steel Wedge Wire Grate, which measures 122mm (4.80") wide and 997.84mm (39.29") in length. This ADA-compliant grate has a Load Class B rating for footways, pedestrian and comparable areas, car parks or parking decks where only occasional vehicular access is likely. Ideal for corrosive environments such as pools, spas, kennels, zoos, breweries, wineries, and food processing facilities. Grate locking devices are included.
