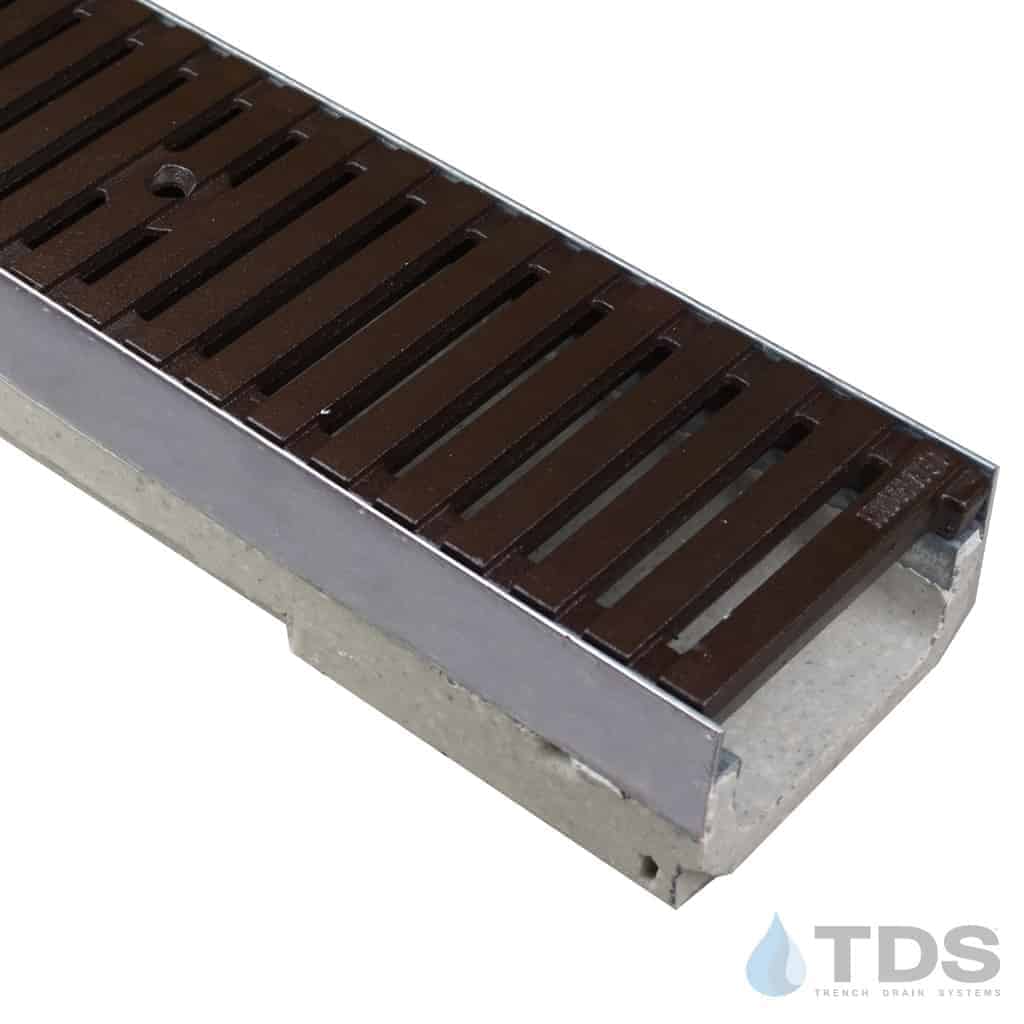

ULMA M100KX with Iron Age Regular Joe grate
Available in Raw & BoOF
Installation hardware and solid end caps are included.
This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging. It has an external width of 130mm (5.12″), an internal width of 100mm (3.94″) and is supplied with an overall height of 80 mm (3.15″). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included. Outlets are through the bottom of the channel. Each channel has one 4″ diameter knock-out (Drill-out).
This kit includes decorative cast iron trench grates designed to fit the ULMA system and others. Iron Age Regular Joe grates are 122mm (4.8″) wide and 498mm (19.6″) long. They are available in either the raw casting or Baked on Oil Finish (BooF).
