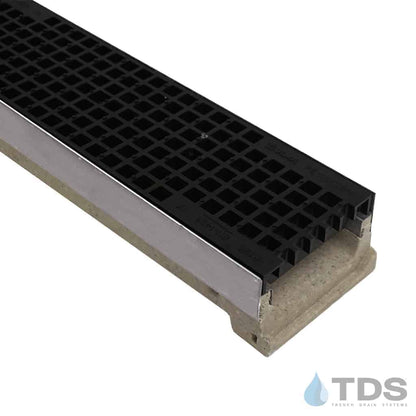

ULMA M100KX Kit with 497 / PE100KCBM Mesh Polypropylene Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Black

Manufacturer: ULMA

System: M100KX

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

LMA M100KX shallow polymer concrete channels with the ADA mesh polypropylene grates.

Installation hardware and solid end caps are included.

This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging. It has an external width of 130mm (5.12"), an internal width of 100mm (3.94") and is supplied with an overall height of 80 mm (3.15"). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included.  Outlets are through the bottom of the channel. Each channel has one 4" diameter knock-out (Drill-out).

This kit includes decorative cast iron trench grates designed to fit the ULMA system and others. ADA compliant Mesh Polypropylene Grate is 122mm (4.8") wide and 498mm (19.6") long.
