ULMA M100KX Kit with 495 / PNH100KCAM-GRIS ADA Heel-Proof Poly Grate -GRAY

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: ULMA

System: M100KX

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)

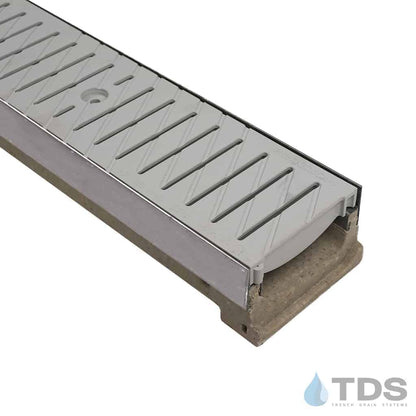

This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging for a smooth look and lateral protection. It has an external width of 130mm (5.12"), an internal width of 100mm (3.94") and is supplied with an overall height of 80mm (3.15"). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included.  Outlets are through the bottom of the channel. Each channel has one 4" diameter knock-out (Drill-out).

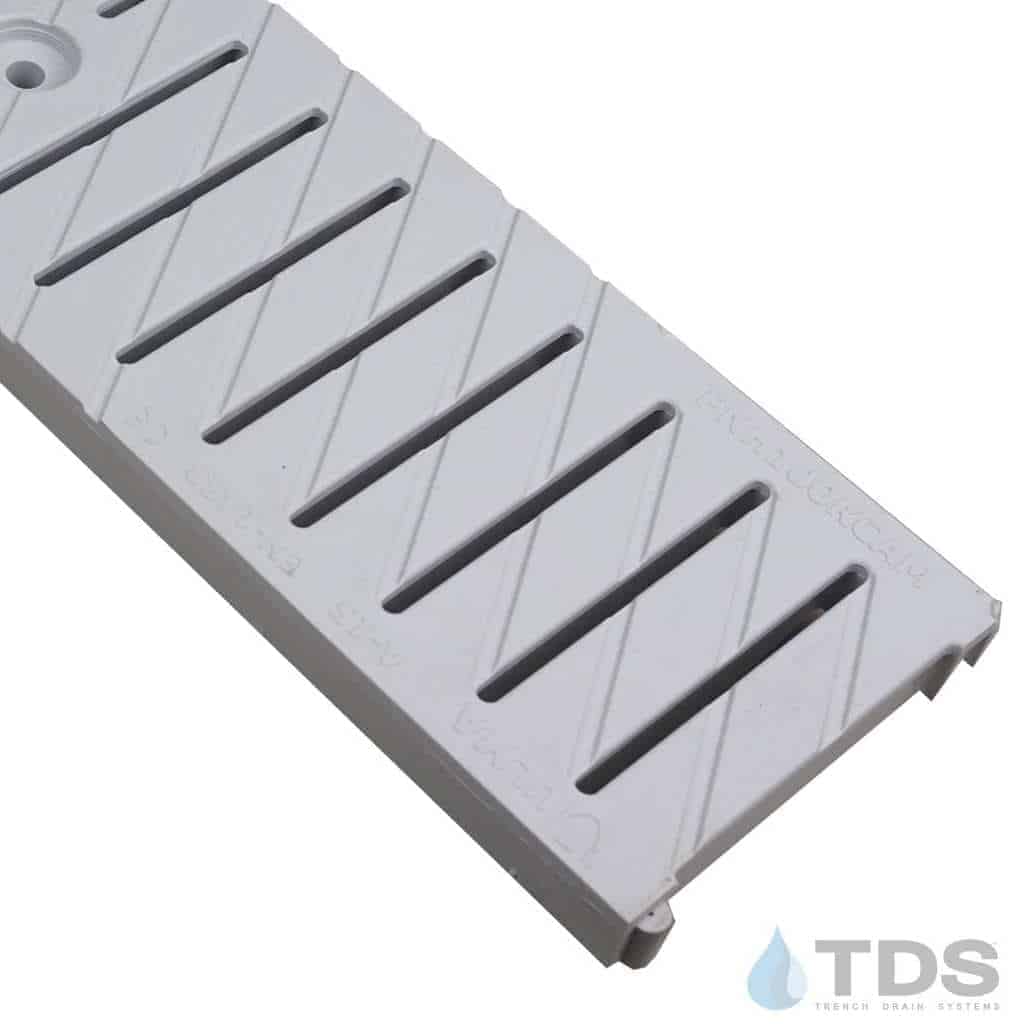

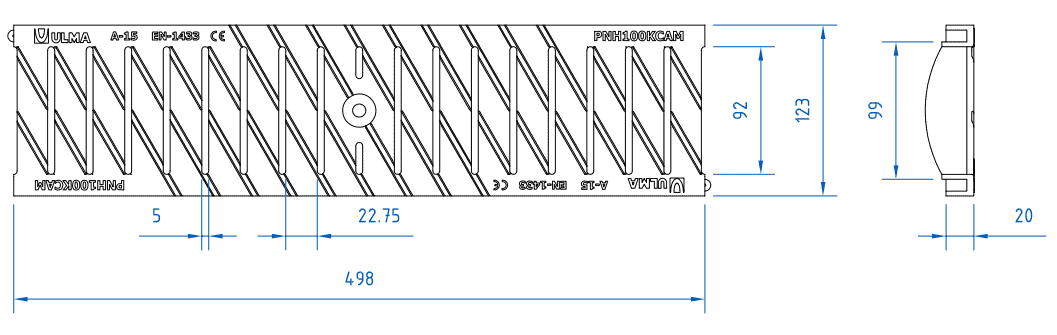

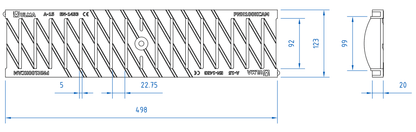

ULMA has a wide variety of drain gratings for its 100mm (3.94") wide channels. This kit includes the ADA Heel-Proof Polypropylene Grate Black/Grey (ULMA Number PNH100KCAM). This grate is 123mm (4.84") wide and 500mm (19.6") in length. Two grates are required for each one-meter ULMA channel. Grates are available in black (494) or grey (495), and have a Load Class A rating.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
