ULMA M100KX Kit w/ Iron Age Heel Proof Regular Joe Grate

ULMA M100KX Kit w/ Iron Age Heel Proof Regular Joe Grate

Skip to product information
1 of 1

Drainage Kits

SKU:M1KX-IA-JOE-HP-BF-12

ULMA M100KX with Heel Proof Iron Age Regular Joe grates Installation hardware and solid end caps are included.
Regular price $7,820.38 USD
Regular price $0.00 USD Sale price $7,820.38 USD
Sale Sold out
Kit Meter Length
View full details

Additional Information

  • Grate Width: 4.81"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish
  • Manufacturer: ULMA, Iron Age
  • System: M100KX
  • Grate Load Class: B
  • Grate Pattern: Regular Joe
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Stainless
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

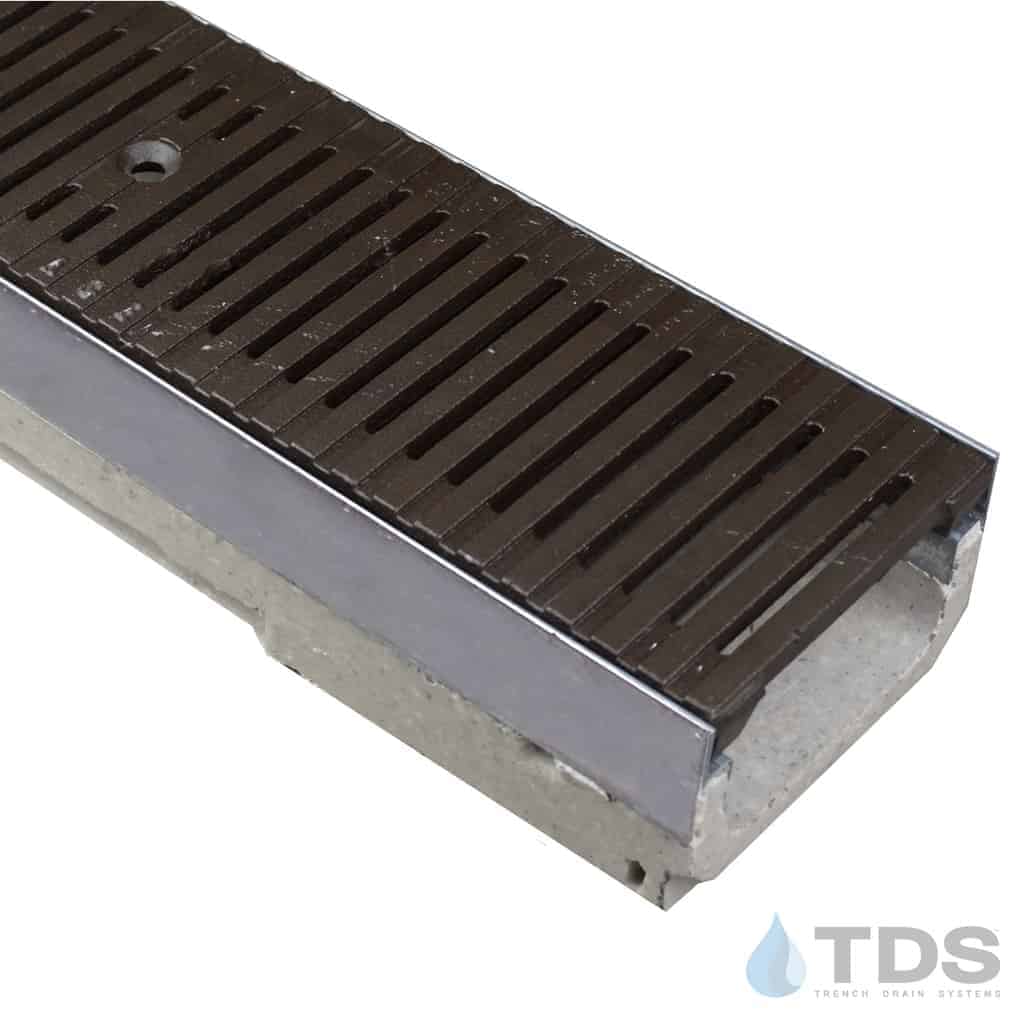

ULMA M100KX with Heel Proof Iron Age Regular Joe grates

Installation hardware and solid end caps are included.

This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging. It has an external width of 130mm (5.12″), an internal width of 100mm (3.94″) and is supplied with an overall height of 80 mm (3.15″). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included. Outlets are through the bottom of the channel. Each channel has one 4″ diameter knock-out (Drill-out). Grates are heel proof in the Baked on Oil Finish.

M100K schematic

This kit includes decorative cast iron trench grates designed to fit the ULMA system and others. Iron Age Heel Proof Regular Joe grates with BoOF are 122mm (4.8″) wide and 498mm (19.6″) long.

Iron Age Heel Proof Regular Joe
