ULMA M100KX Kit w/Iron Age Heel Proof Mission Bay Grate | RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: M100KX

Grate Load Class: Class B

Grate Pattern: MISSION BAY

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

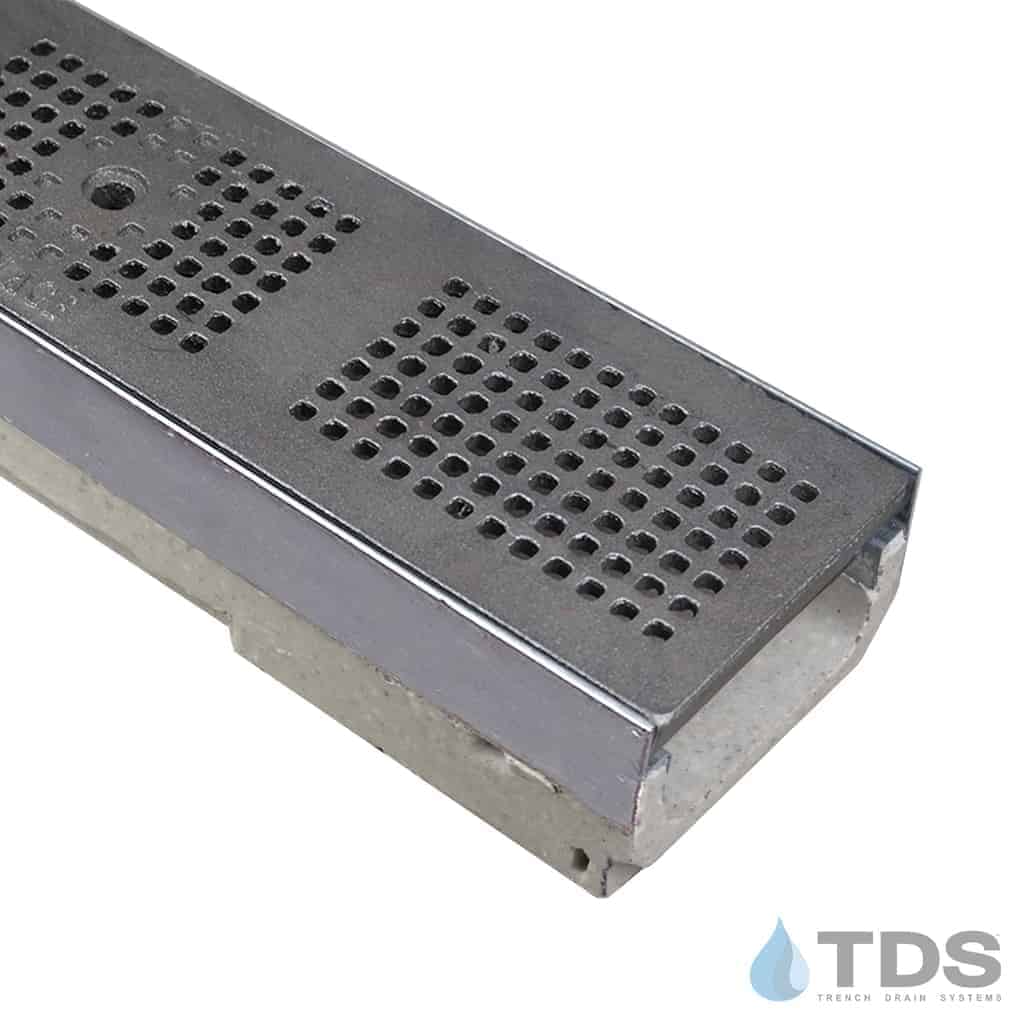

ULMA M100KX channel with Iron Age Mission Bay grate, Load Class B

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

ULMA M100KX Polymer concrete Linear Drainage Channel with Stainless Steel edge. External width 130 mm; Internal width 100 mm and overall height 60 mm to collect rainwater in 1 meter long units and stainless steel edge.

ULMA's M100KX channel fits Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm. This kit has the Mission Bay pattern, which is available in either the raw casting or Baked on Oil Finish (BoOF).

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
