ULMA M100KX Kit w/Iron Age Argo Grate | RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: M100KX

Grate Load Class: Class B

Grate Pattern: ARGO

Grate Pattern Style: ABSTRACT

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

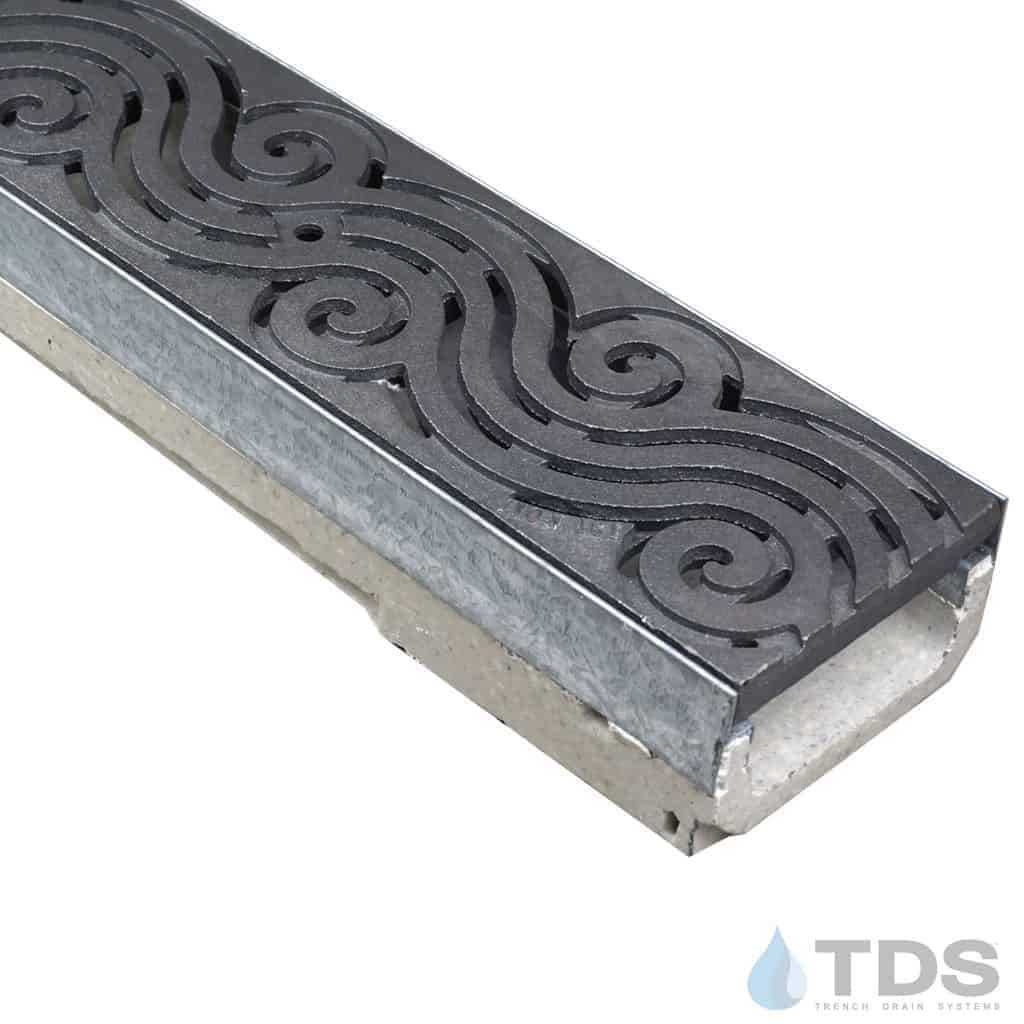

ULMA M100KX with Iron Age Heel-Proof Argo grate

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging.  It has an external width of 130mm (5.12″), an internal width of 100mm (3.94″) and has an overall height of 80 mm (3.15″).

Channels are 1 meter in length and have a neutral slope. The locking system consists of a locking bar CS100 and hex head screws. Installation hardware and solid end caps are included.  Outlets are through the bottom of the channel.  Each channel has one 4″ diameter knock-out (Drill-out).

This kit includes decorative cast iron trench grates designed to fit the ULMA system and others. Iron Age Argo Heel-Proof grates are 122mm (4.8″) wide and 498mm (19.6″) long. They are available in either the raw casting or Baked on Oil Finish (BoOF).

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
