ULMA M100K W/Iron Age Minnione Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: ULMA and Iron Age Designs

System: M100K

Grate Load Class: Class B

Grate Pattern: MINNIONE

Grate Pattern Style: ABSTRACT

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

ULMA M100K W/Iron Age Minnione Grate

Polymer concrete Linear Drainage Channel ULMA, type M100: External width 130 mm; Internal width 100 mm and overall height 60 mm to collect rain water in 1 meter long units. Locking system consists of 2 screws per meter.

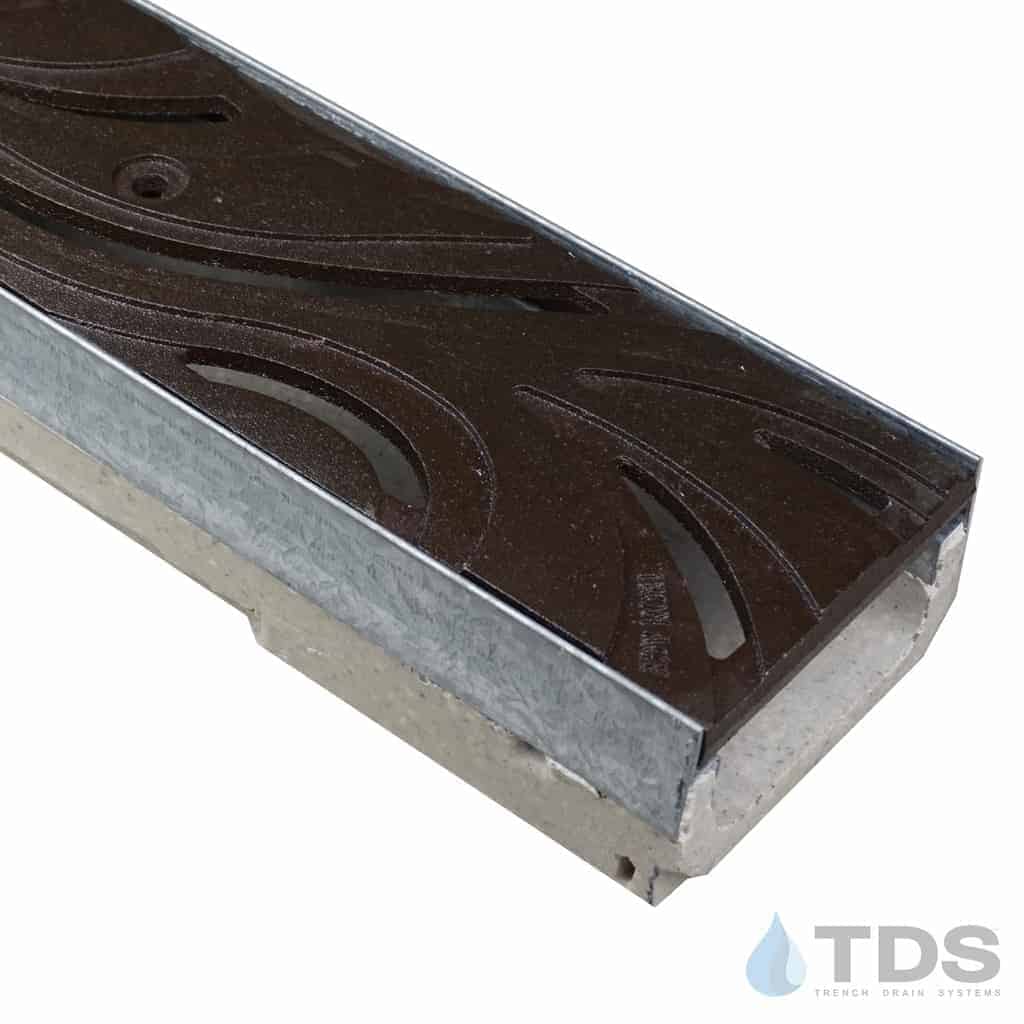

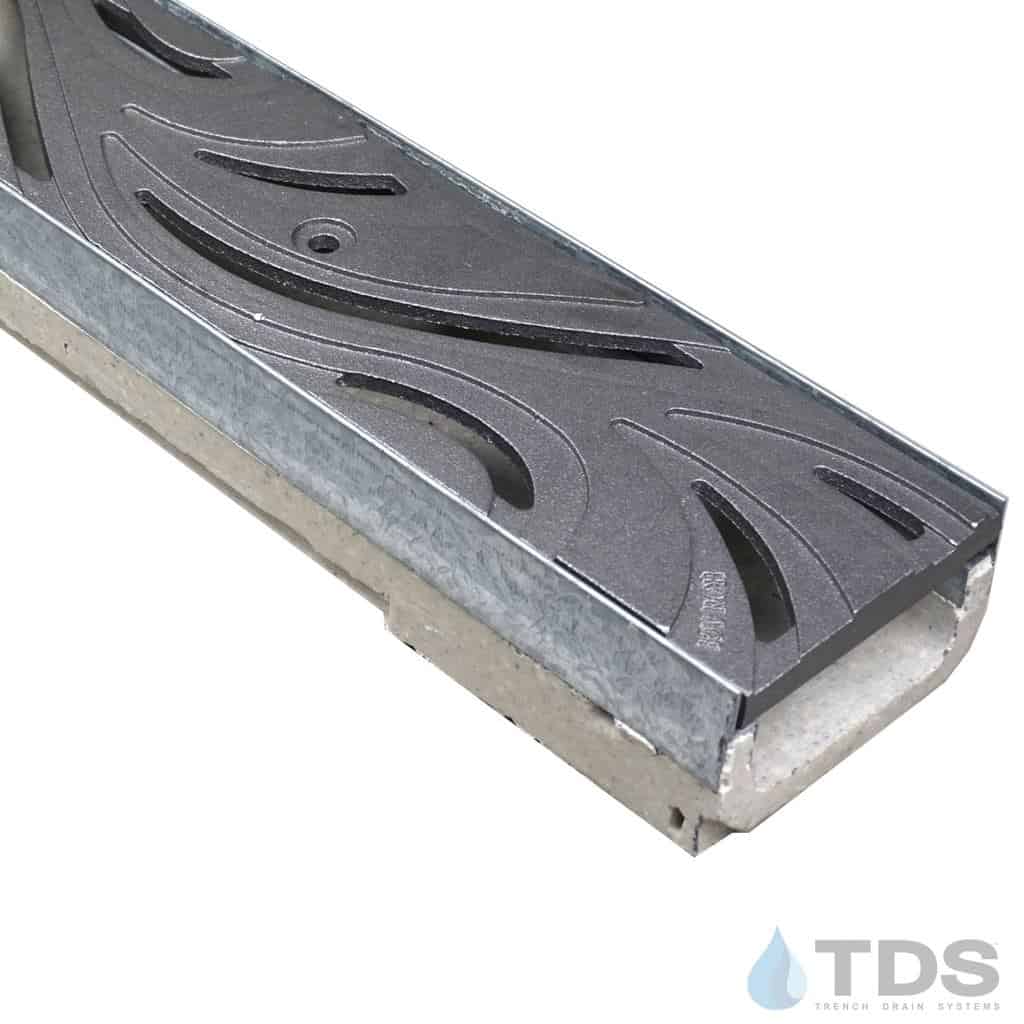

Decorative cast iron trench grate designed to fit the ULMA system and others.  The Minnione pattern is available in either the raw casting or Baked on Oil Finish (BooF).

What is Baked On Oil Finish (BooF)? Click Here to learn more.

M1K-MIN-01 M1K-MIN-02 M1K-MIN-03 M1K-MIN-04 M1K-MIN-05 M1K-MIN-12 M1K-MIN-01-BF M1K-MIN-02-BF M1K-MIN-03-BF M1K-MIN-04-BF M1K-MIN-05-BF M1K-MIN-12-BF
