ULMA M100K W/Iron Age Argo Grate

ULMA M100K W/Iron Age Argo Grate

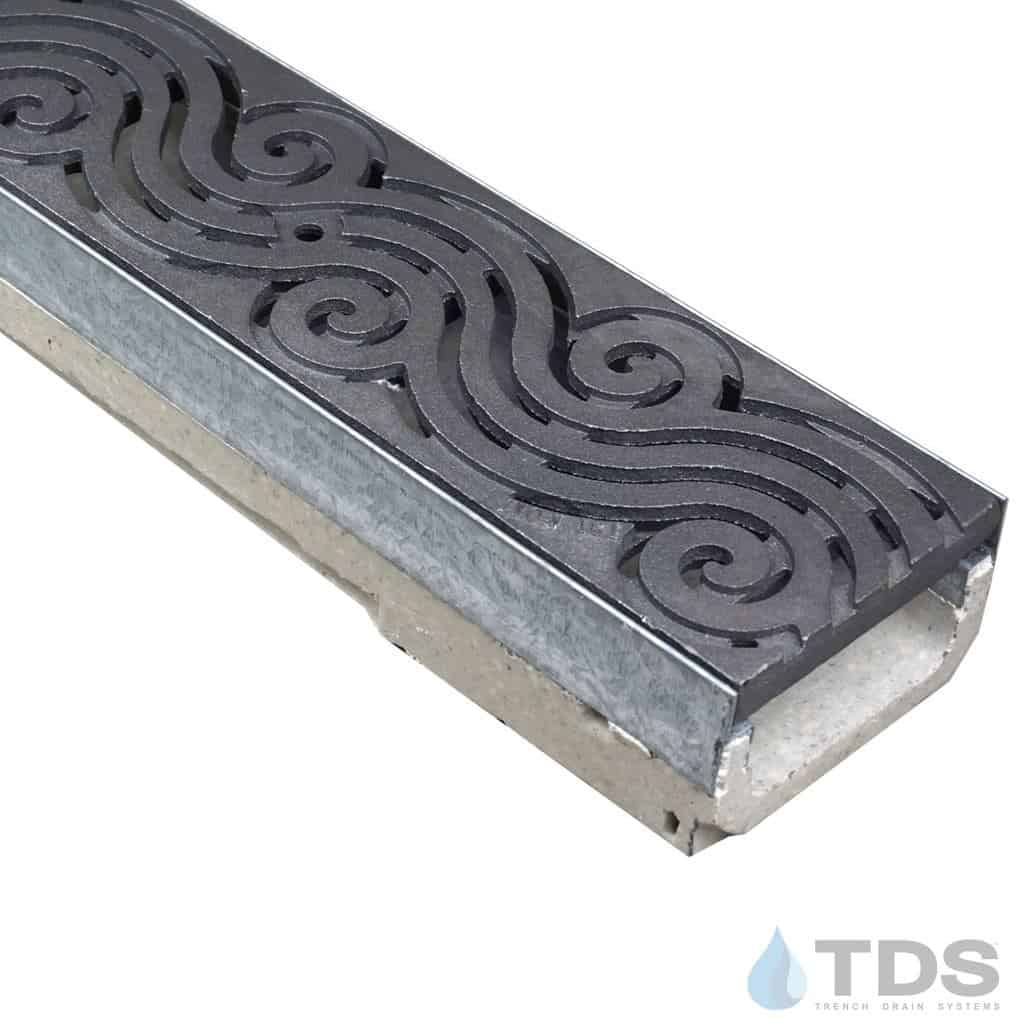

  • M100K-Argo Iron Age deco cast iron raw grate polymer concrete galv edge ULMA channel

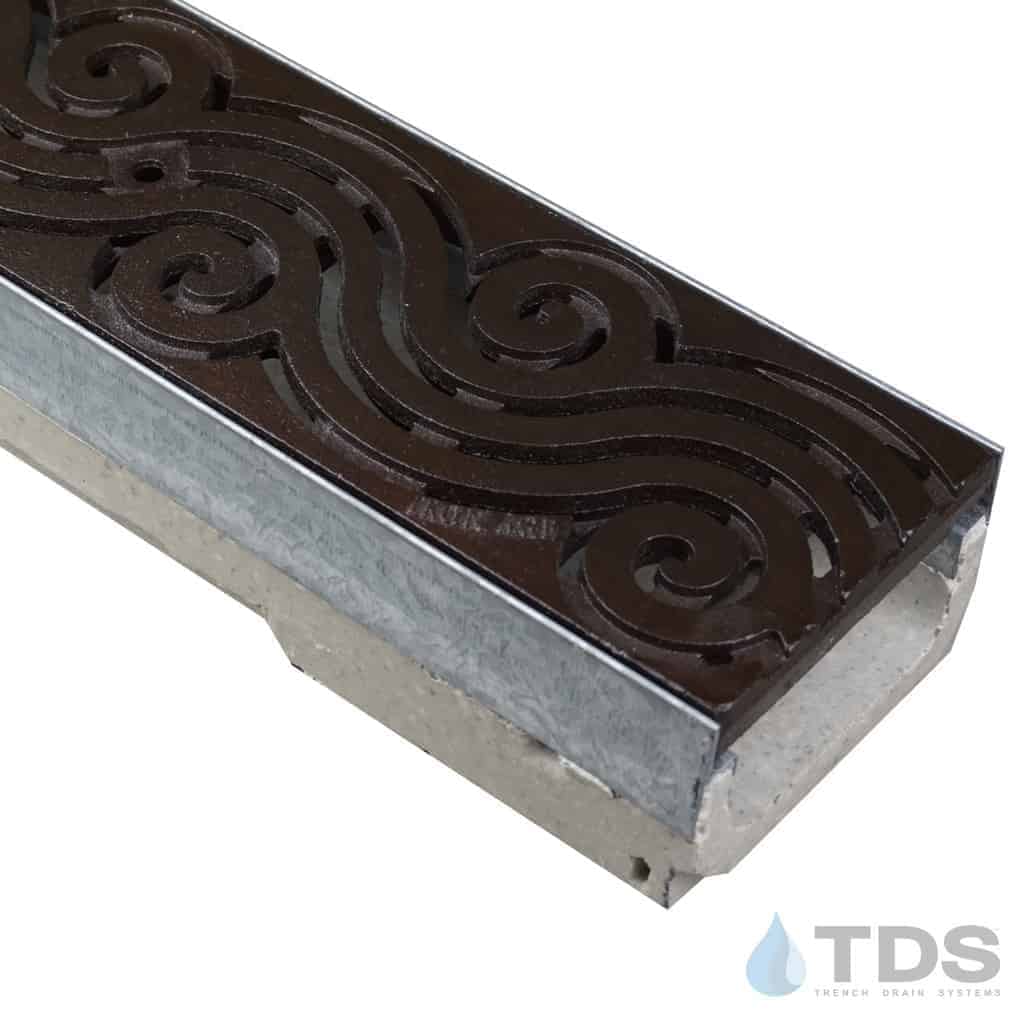

  • M100K-Argo-boof ironage deco cast iron shallow polymer concete ULMA channel galv edge
1 2

Drainage Kits

M1K-IA-ARGO-HP-BF-12

ULMA M100K W/Iron Age Argo Grate
$6,880.11 USD
$0.00 USD $6,880.11 USD
Sale Sold out
Kit Meter Length
Finish Type
View full details

Additional Information

  • Grate Width: 4.81"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish
  • Manufacturer: ULMA, Iron Age
  • System: M100K
  • Grate Load Class: B
  • Grate Pattern: Argo
  • Grate Pattern Style: Abstract
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Galvanized
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

ULMA M100K W/Iron Age Argo Grate

Polymer concrete Linear Drainage Channel ULMA, type M100: External width 130 mm; Internal width 100 mm and overall height 60 mm to collect rain water in 1 meter long units. Locking system consists of 2 screws per meter.

IA-Argo-0520-Cast-Iron-Ironage-Deco-Grate

Decorative cast iron trench grate designed to fit the ULMA system and others.  Argo pattern is available in either the raw casting or Baked on Oil Finish (BooF). The Argo grate for the ULMA system is a heel proof grate with no opening greater than 1/4″.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
