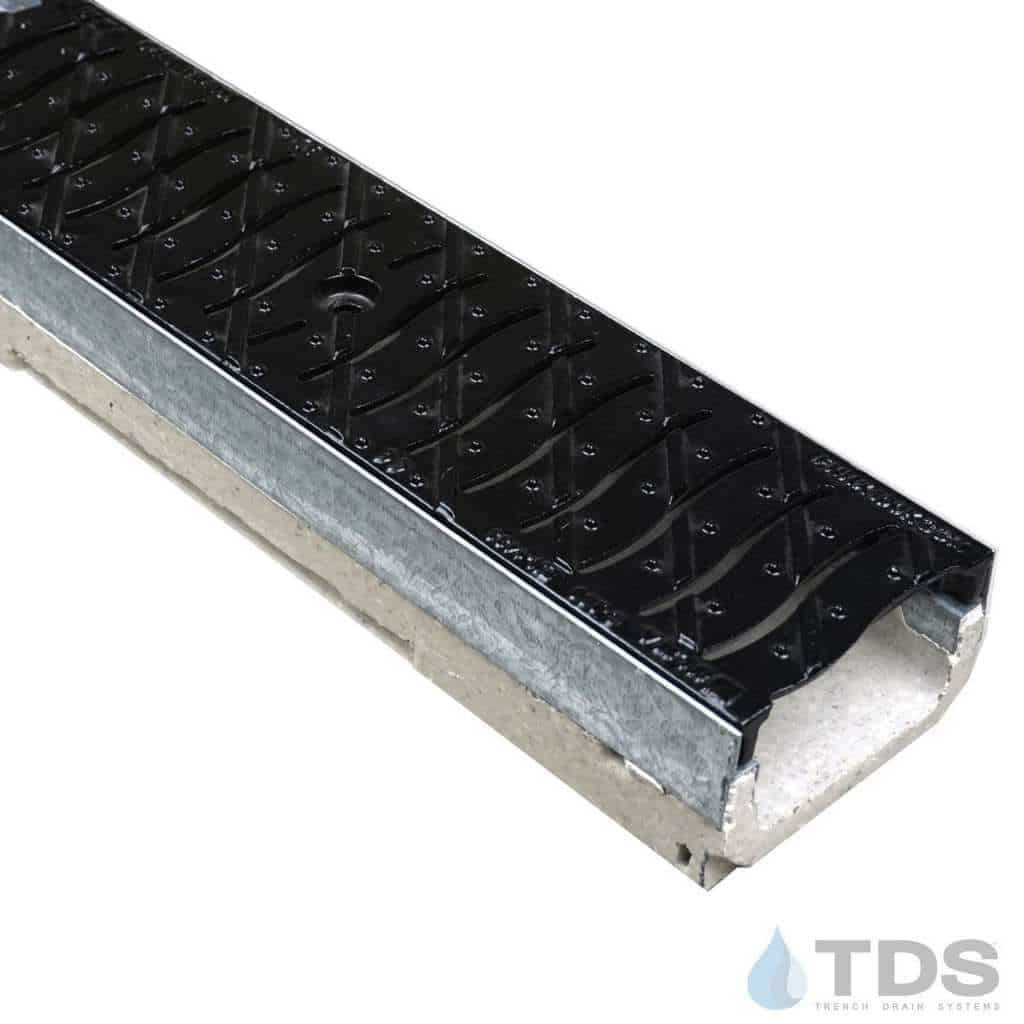

ULMA M100K W/Ductile Iron Heel-proof Wave Grate (1/2 M) Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA

System: M100K

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

ULMA M100K w/ Heel-proof Ductile Wave C Class

Polymer concrete Linear Drainage Channel ULMA, type M100: External width 130 mm; Internal width 100 mm and overall height 60 mm to collect rain water in 1 meter long units. Locking system consists of 2 screws per meter.

Ductile Iron Slotted Grate (1/2M) Class C

M1K-480-01 M1K-480-02 M1K-480-03 M1K-480-04 M1K-480-05 M1K-480-12

12
