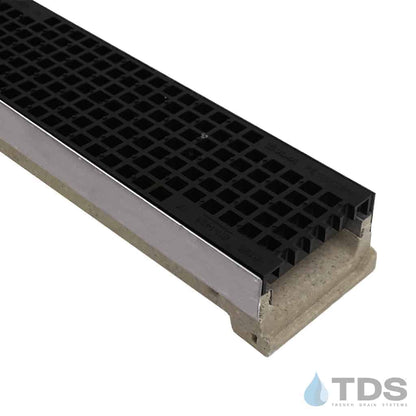

ULMA M100K with ADA Mesh Polypropylene Grates
Installation hardware and solid end caps are included.
This shallow polymer concrete trench drain kit uses the ULMA Type M100K channel with integral galvanized steel edging. It has an external width of 130mm (5.12″), an internal width of 100mm (3.94″) and is supplied with an overall height of 80mm (3.15″). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included. Outlets are through the bottom of the channel. Each channel has one 4″ diameter knock-out (Drill-out).
ULMA has a wide variety of drain gratings for its 100mm (3.94″) wide channels. This kit includes ADA Mesh Polypropylene. This grate is 124mm (4.89″) wide and 998mm (39.29″) in length. Load Class A.
ADA Mesh Polypropylene Grate
