ULMA M100K Kit with 495 / PNH100KCAM-GRIS Polypropylene ADA Heel Proof Grate – GRAY

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: ULMA

System: M100K

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

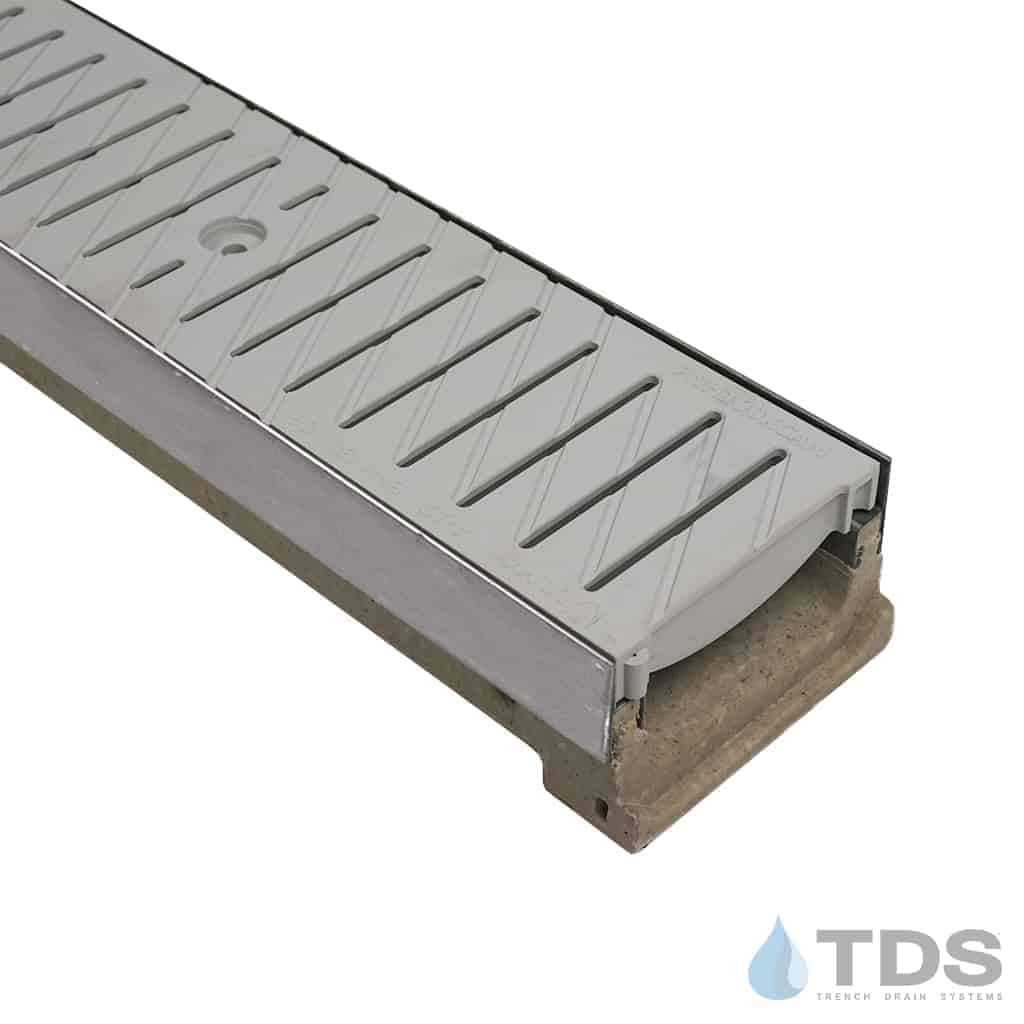

ULMA M100K w/ ADA Heel-proof Polypropylene Grate in Black or Grey, Load Class A

Polymer concrete Linear Drainage Channel ULMA, type M100: External width 130 mm; Internal width 100 mm and overall height 60 mm to collect rain water in 1 meter long units. Channel has Galvanized edging for a clean look and lateral protection. Locking system consists of 2 screws per meter.

ULMA has a wide variety of drain gratings for its 100mm (3.94") wide channels. This kit includes the ADA Heel-Proof Polypropylene Grate Black/Grey (ULMA Number PNH100KCAM). This grate is 123mm (4.84") wide and 500mm (19.6") in length. Two grates are required for each one-meter ULMA channel. Grates are available in black (494) or grey (495), and have a Load Class A rating.
