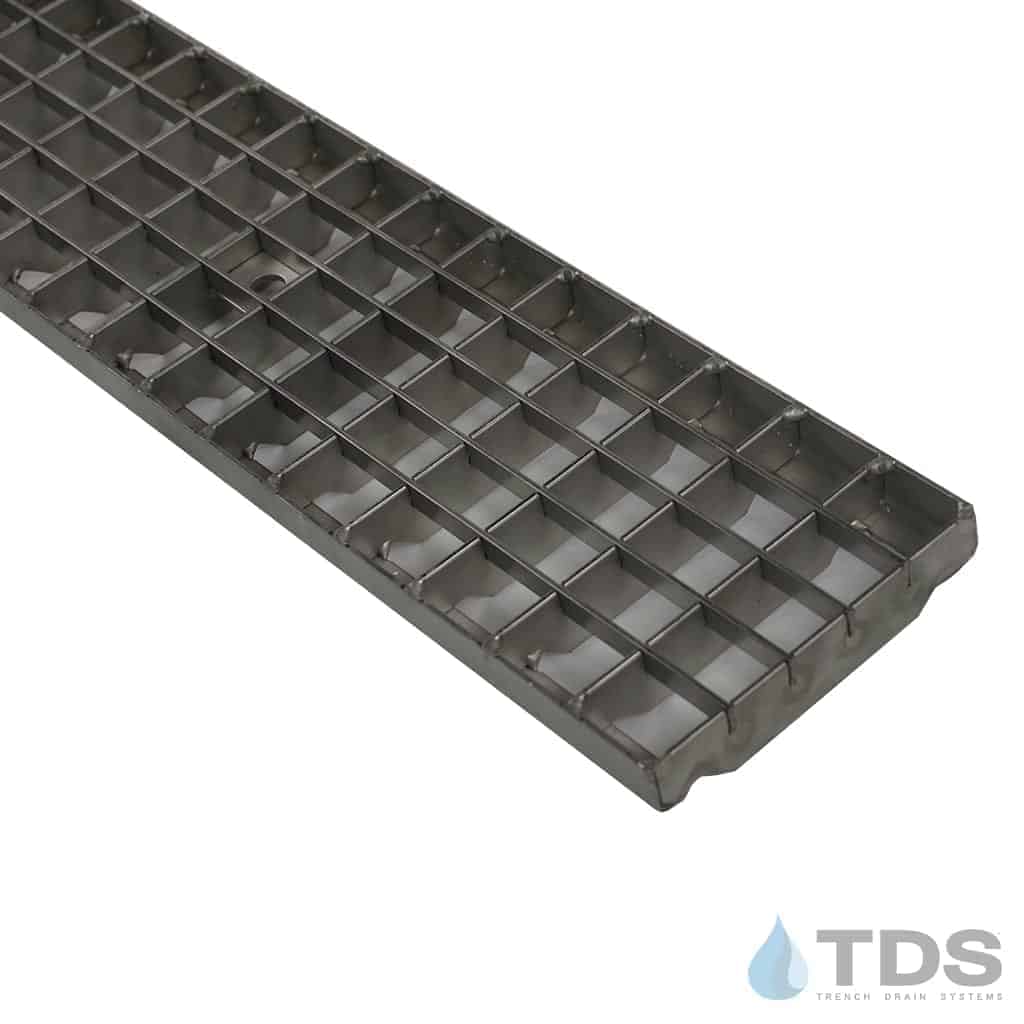

ULMA IEX100KCBM / 433 Class B Mesh Stainless Steel 124mm x 0.5M Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

433 Mesh Stainless Steel Grate (0.5M), Load Class B

MPN: IEX100KCBM
Actual Dimensions: 0.75″ [20mm] x 4.88″ [124mm] x 19.60″ [498mm]
Large project? Request a Quote

ULMA has a wide variety of drain grating for their 100mm wide channels. This 433 grate is a stainless steel mesh grate (ULMA Number IEX100KCBM) which measures 124mm wide x 0.5M long x 20mm high. Two grates are required for each meter ULMA channel and is an excellent alternative to your MEArin 100 grates. This grating has a load class B.

Need this grate in a 1M length? CLICK HERE

Locking device sold separately:

• The LD100X-1 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-1 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
