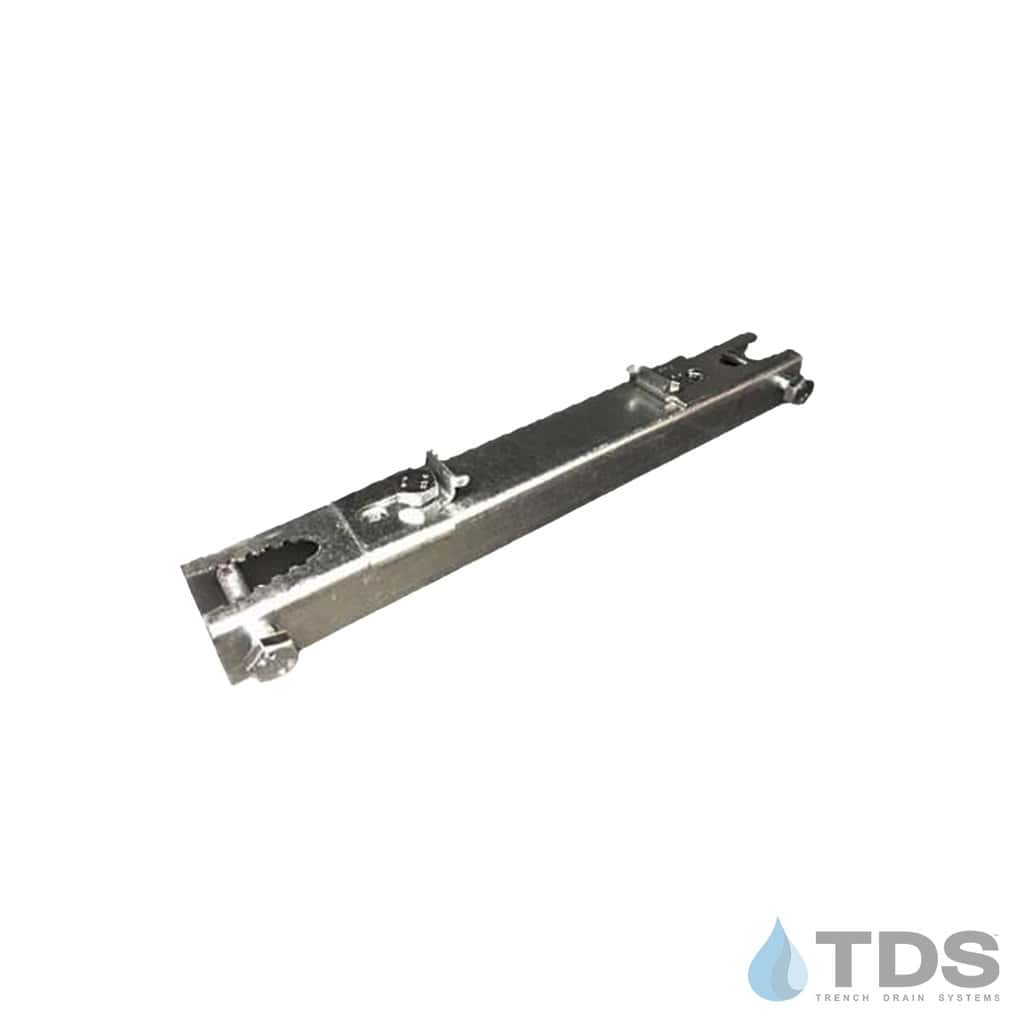

ULMA ID200 Installation Chair

Grate Width: 9.00"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: ULMA

System: MultiV+200D, MV+200K, and MV+200KX

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Ductile Iron, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

Simplifies the installation of ULMA MultiV+200 Polymer concrete channels

Made to fit ULMA:

• MV+200

The ULMA installation bracket ID200 assists with setting the MutiV+200 precast trench drain system. Installation chairs support the ends of the channels, align and lock the joint rigidly together, and prevent the channels from floating. Adjusting channel elevation on the rebar is easy with the ULMA installation bracket.

Used under the joints of channels to suspend the system with areas on each side that allow for the attachment of rebar.

Install chairs are sold individually.

Compatible with:

• MV+200
