ULMA HYDROPLUS with Iron Age PA5-20I21 / IA-PAR-0520 Paradise BoOF Cast Iron Grate Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: ULMA and Iron Age Designs

System: HYDROPLUS

Grate Load Class: Class B

Grate Pattern: PARADISE

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Paradise Cast Iron Grate - BoOF Finish (Baked on Oil Finish) Qty.2 grates per channel
  • Specification Sheet
• Qty.1, closed end inlet cap (HYDRO-CE) per kit
• Qty.1, open end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100-3) and two screws per 1M channel section

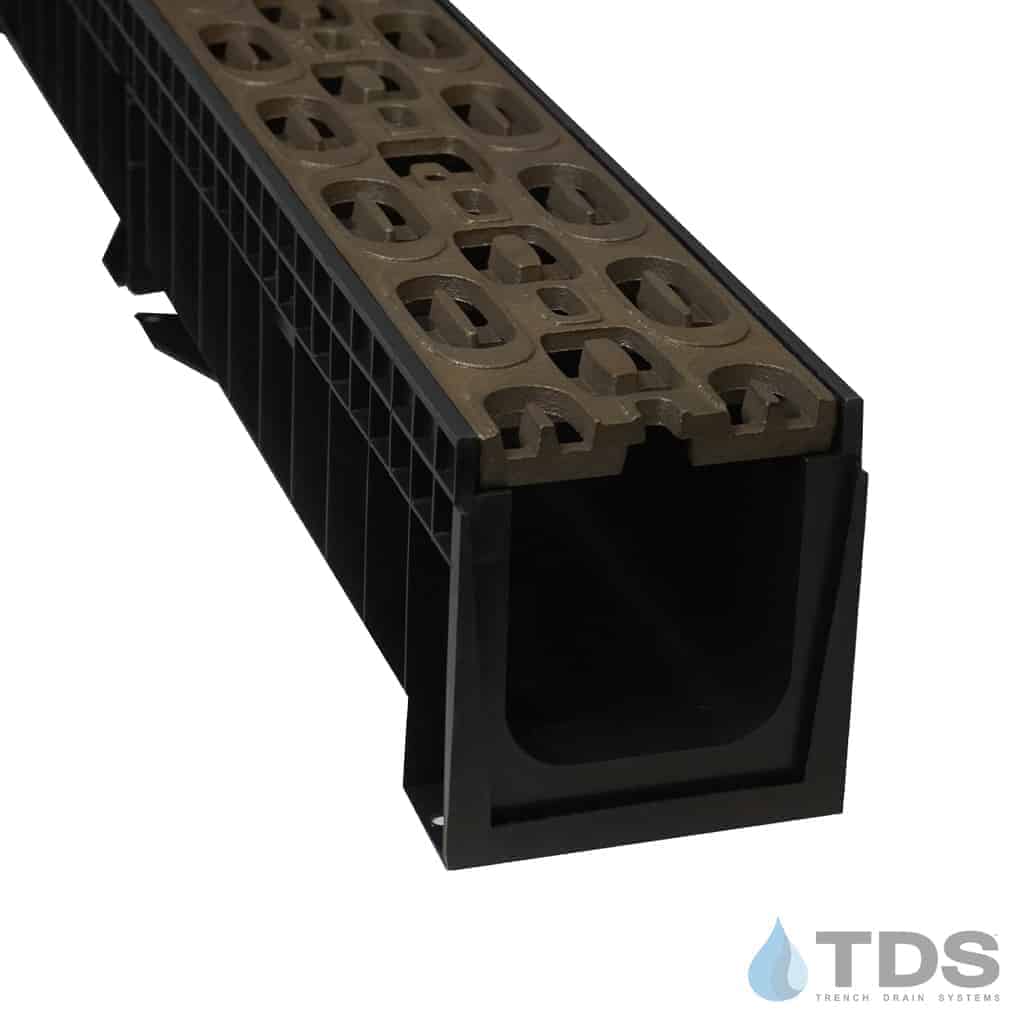

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Paradise Cast Iron - BoOF Finish (Baked on Oil Finish) Grate (IA-PAR-0520) is rated as a Load Class B, and measures 19.6 in X 4.80 in. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

Please allow an additional 2 weeks for delivery of BoOF products.

Paradise IA-PAR-0520 Grate Specification Sheet
