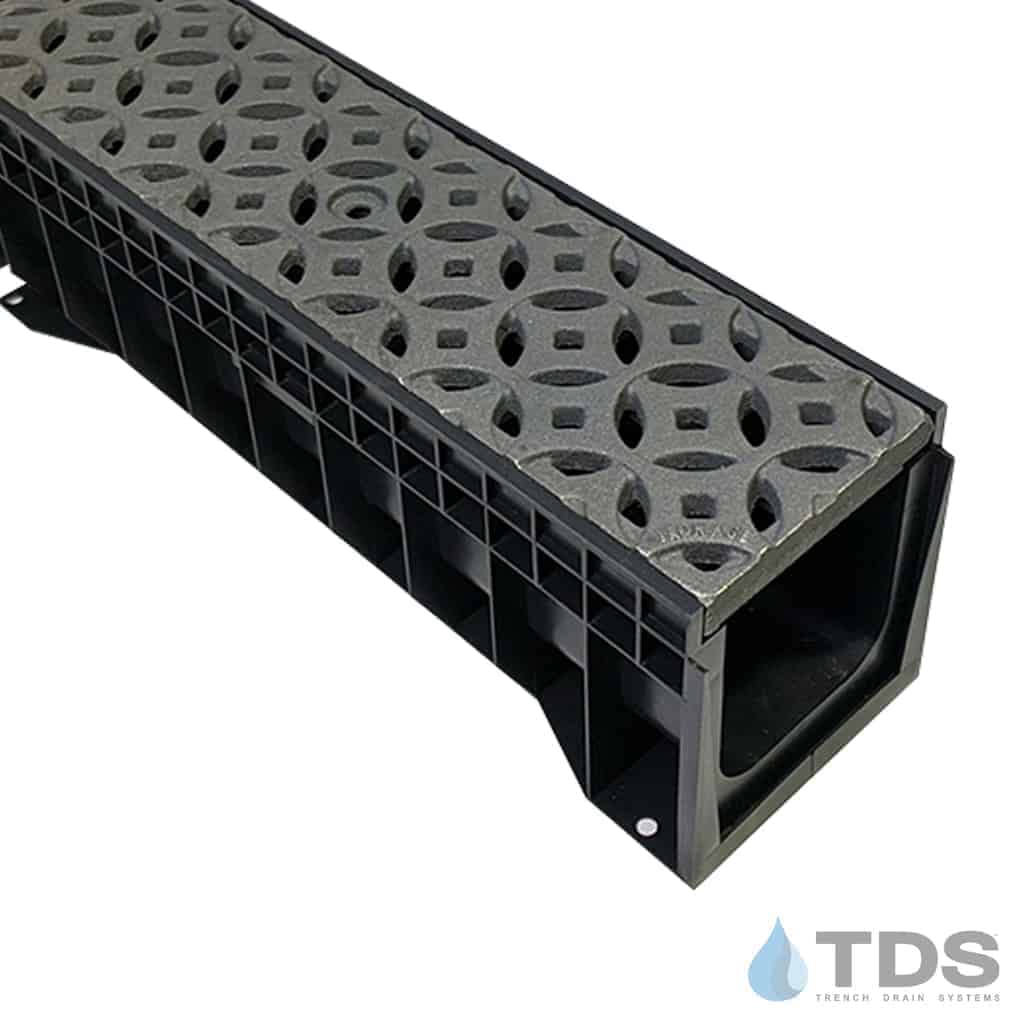

ULMA HYDROPLUS with Iron Age IA-INTER-0520 Interlaken Raw Cast Iron Grate Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: HYDROPLUS

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Interlaken Cast Iron Grate with Raw Finish 122mm x 493mm; Qty.2 grates per 1M channel section
• Qty.1, closed-end inlet cap (HYDRO-CE) per kit
• Qty.1, open-end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100-1) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm. 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Interlaken Cast Iron - Raw Finish Grate (IA-INTER-0520) is rated as a Load Class B, and measures 122mm X 493mm. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

Interlaken IA-INTER-0520 Grate Specification Sheet

HYDROPLUS Benefits:

• Modular and robust design
• Lightweight and easy to transport and handle
• High drainage capacity
• Simple leak-tight tongue and grooved assembly
• Pre-marked to cut at 0.5M, maintaining the leak-tight tongued and grooved assembly
• Pre-joined outlets, vertical and horizontal
• Easy to trim to any length with a manual saw
• Inlet closed end cap and outlet open end cap; Fit 3" or 4" SCH 40 pipe, or 4" SDR 35 connections.
• Installation instructions printed on base of channel
• Operating temperatures range from -20°C (-4°F) to 80°C (176°F)
• Two locking bars (LD100-1) and two screws per linear meter
• Ideal for inner streets, courtyards, playgrounds, schools, parks, gardens

CLICK HERE for HYDROPLUS Installation Instructions

CLICK HERE for ULMA Declaration of Conformity

NOTE: For proper installation, grates must be in the channel during installation.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
