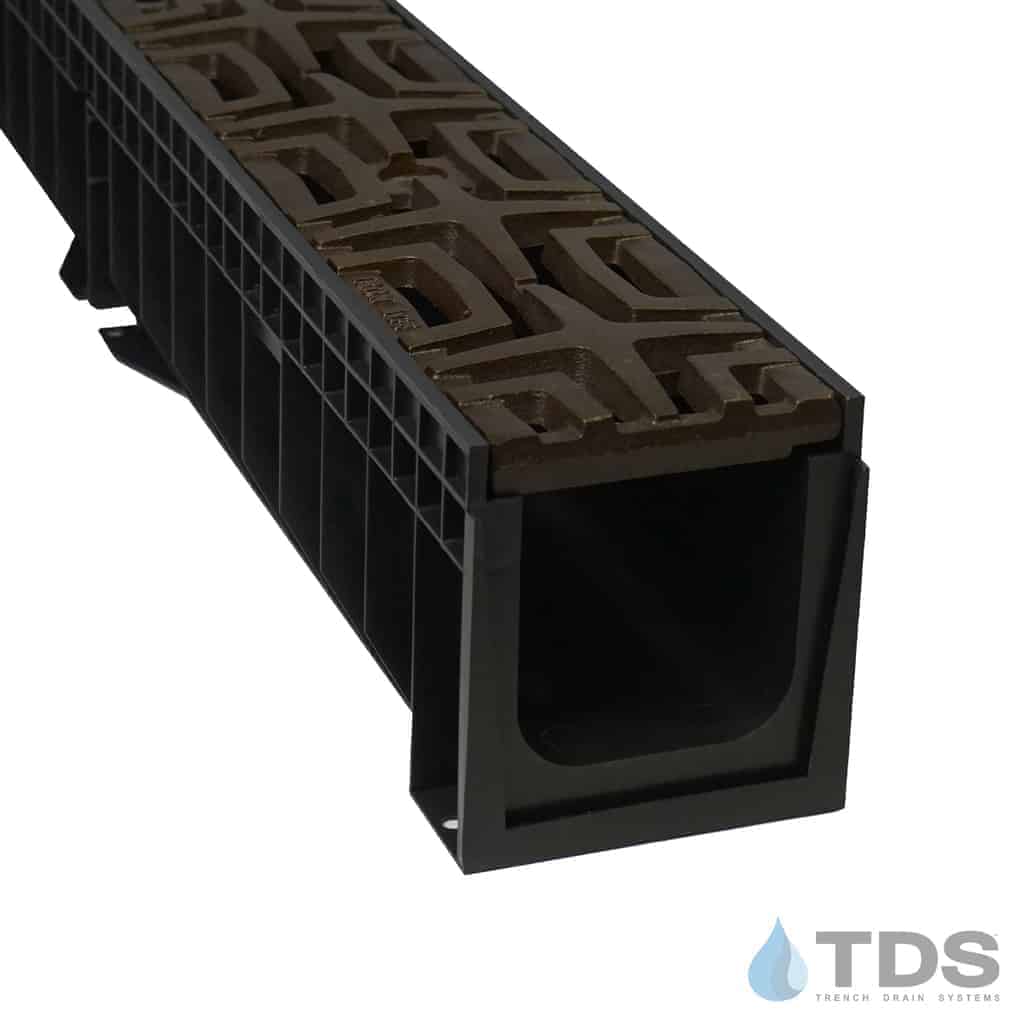

ULMA HYDROPLUS with Iron Age IA-CARB-0520 Carbochon BoOF Cast Iron Grate Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: ULMA and Iron Age Designs

System: HYDROPLUS

Grate Load Class: Class B

Grate Pattern: CARBOCHON

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Carbochon Cast Iron Grate - BoOF Finish; (2) grates per 1M channel section Specification Sheet
• Qty.1, closed end inlet cap (HYDRO-CE) per kit
• Qty.1, open end outlet cap (HYDRO-OE) per kit
• Qty.2, locking bars (LD100-3) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS with the Carbochon Cast Iron - BoOF Finish (Baked on Oil Finish) Grate (IA-CARB-0520) is rated as a Load Class B, and measures 19.6 in X 4.80 in. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.

Carbochon IA-CARB-0520 Grate Specification Sheet

CLICK HERE for HYDROPLUS Installation Instructions

CLICK HERE for ULMA Declaration of Conformity

NOTE: For proper installation, grates must be in channel during installation.

Want this kit with a BoOF grate? Click Here
