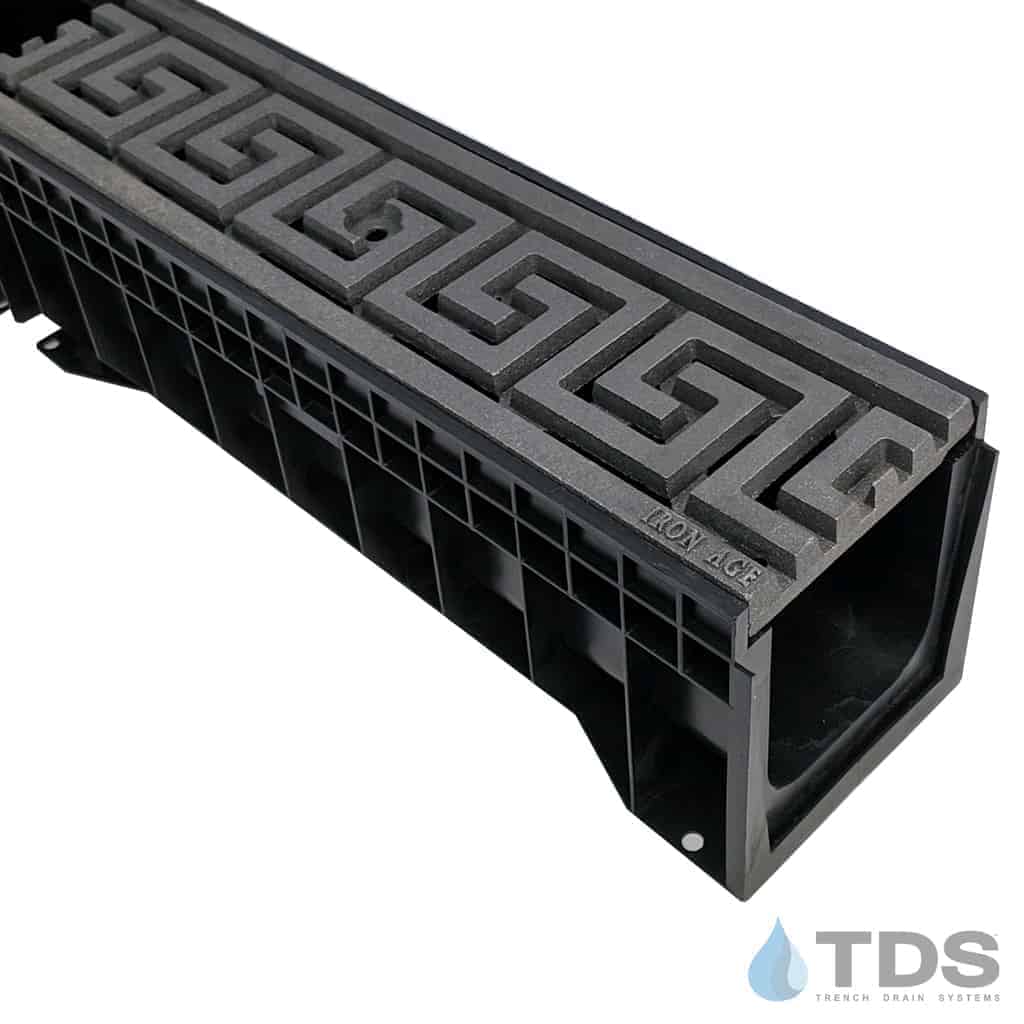

ULMA HYDROPLUS with Iron Age GA5-20I21 / IA-GRK-0520 Greek Key Raw Cast Iron Grate Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: HYDROPLUS

Grate Load Class: Class B

Grate Pattern: GREEK KEY

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

The HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm. 1 meter in length.

It is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Greek Key Cast Iron - Raw Finish Grate (IA-GRK-0520) is rated as a Load Class B, and measures 122mm X 493mm. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

It is available in both Natural and Baked-on Oil finish.

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Greek Key IA-GRK-0520 Grate Specification Sheet

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Greek Key Cast Iron Grate Finish 122mm x 493mm; Qty.2 grates per 1M channel section
• Qty.1, closed-end inlet cap (HYDRO-CE) per kit
• Qty.1, open-end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100-1) and two screws per 1M channel section

HYDROPLUS Benefits:
