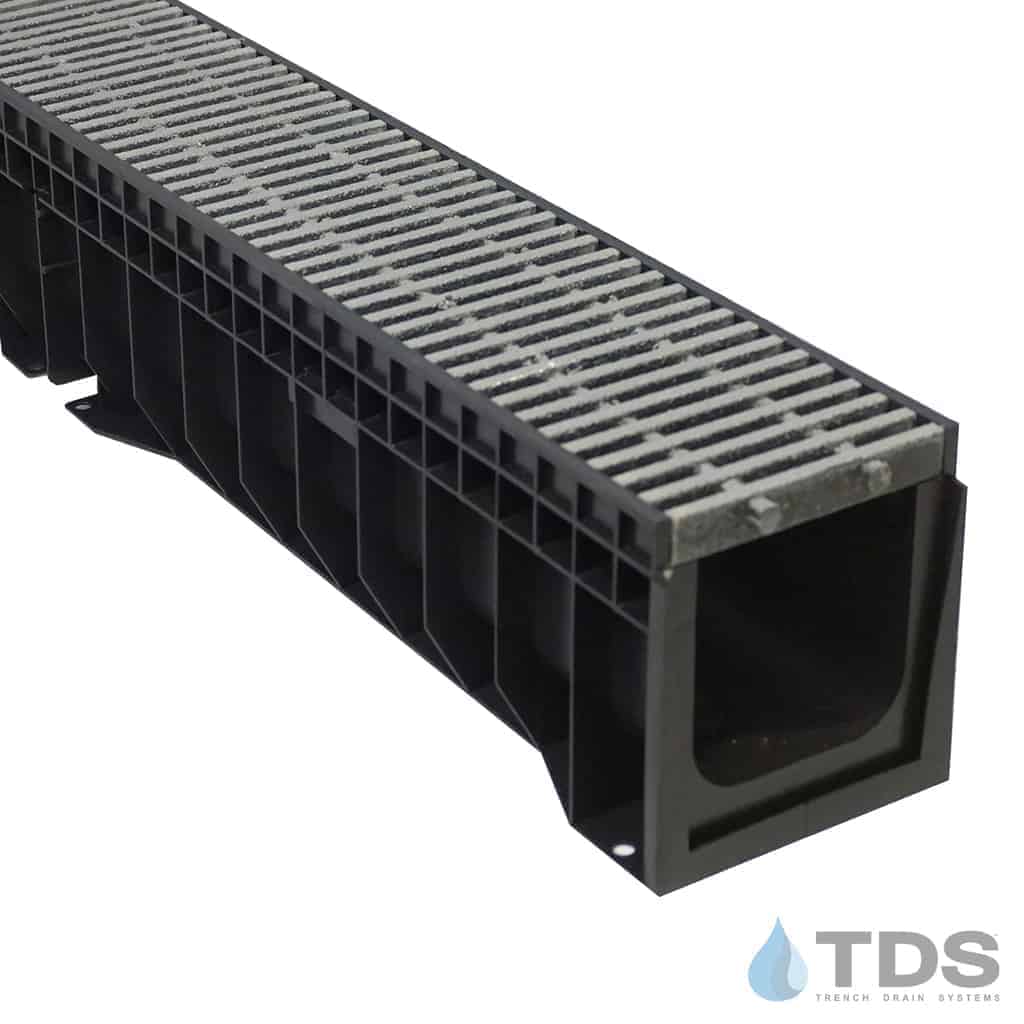

ULMA HYDROPLUS with (488) Vinyl Ester FRP (0.6" on center) 1M Grates Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: HYDROPLUS

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• 488 Vinylester FRP 0.6" on-center Grates 39.13 inches x 4.81 inches; Qty.1 grates per 1M channel section
• Qty.1, closed end inlet cap (HYDRO-CE) per kit
• Qty.1, open end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100X-5) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Vinyl Ester FRP (SKU#488) slots measure 0.6" on center and is rated as a Load Class C. Grate measures 39.13" x 4.81"  (1 grate per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

HYDROPLUS Benefits:
