ULMA HYDROPLUS with (486) Vinyl Ester FRP (0.9" on center) 1M Grates Class B

ULMA HYDROPLUS with (486) Vinyl Ester FRP (0.9" on center) 1M Grates Class B

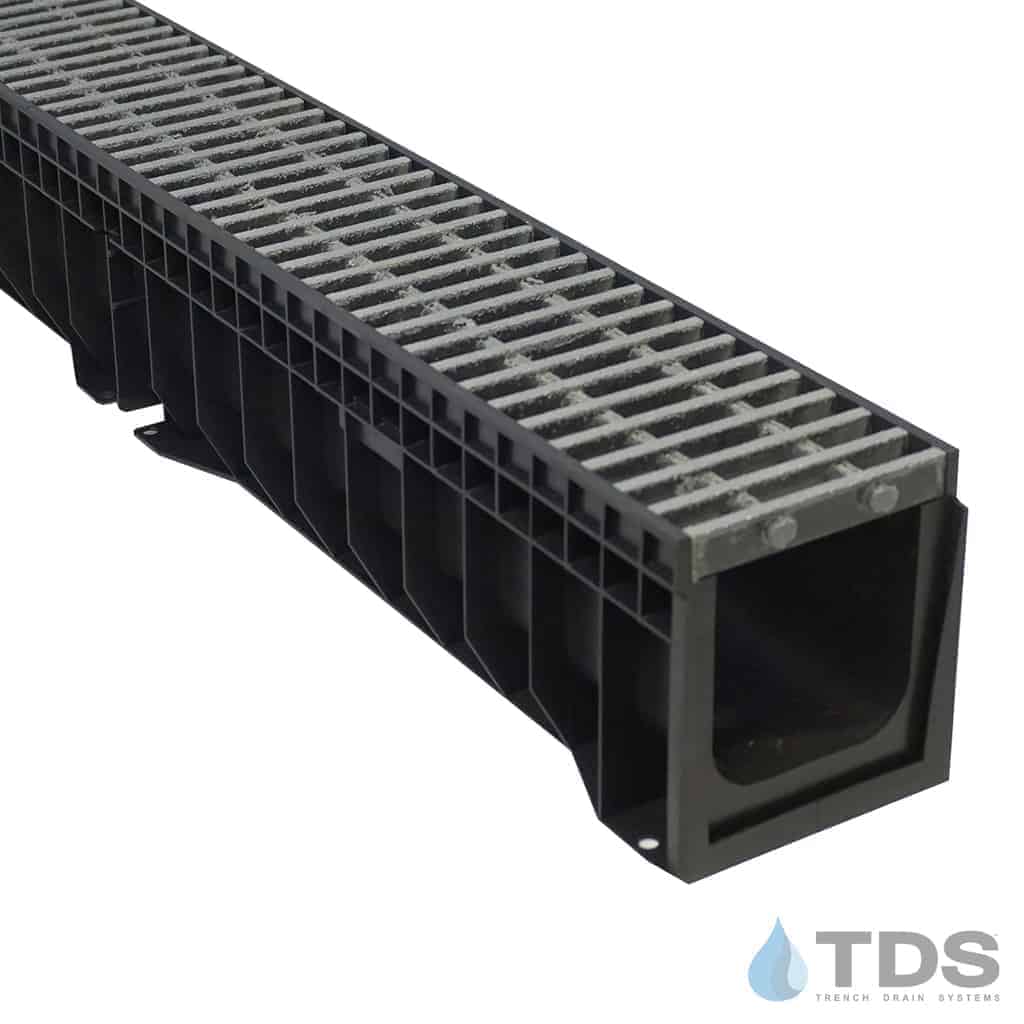

  • Hydro Plus with 486 Vinylester .9 inch center 1M Grate Class B
  • ULMA HYDROPLUS Trench Drain Channel
  • ULMA HYDROPLUS Channel - bottom view

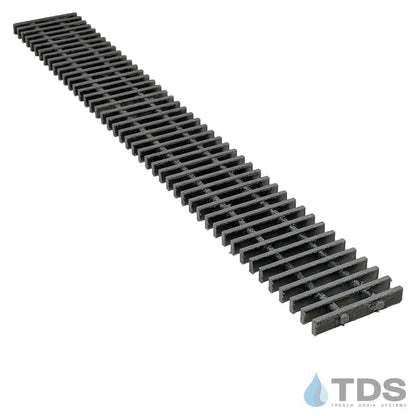

  • 486_Vinylester FRP 0.9 on center 1M Grate
1 6

Drainage Kits

HYDRO-486-01

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices
$309.57 USD
$309.57 USD
Sale Sold out
Kit Meter Length
View full details

PRODUCT DOCUMENTATION

  • ADDITIONAL INFORMATION

    Grate Width: 4.81" for ULMA

    Grate Thickness: 0.75"

    Grate Material / Color / Finish: Fiberglass

    Manufacturer: ULMA and TDS (Trench Drain Systems)

    System: HYDROPLUS

    Grate Load Class: Class B

    Grate Pattern: BAR

    Grate Pattern Style: SLOTTED

    Channel Material: Plastic - (PP, HDPE, PE)

    Channel Frame / Edging: Frame - None and Edging - None

    Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

  • DESCRIPTION

    Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

    HYDROPLUS Kit Includes:

    • 1M (3.3 ft) polypropylene channel sections
    • 486 Vinylester FRP 0.9" on-center Grates 39.13 inches x 4.81 inches; Qty.1 grates per 1M channel section

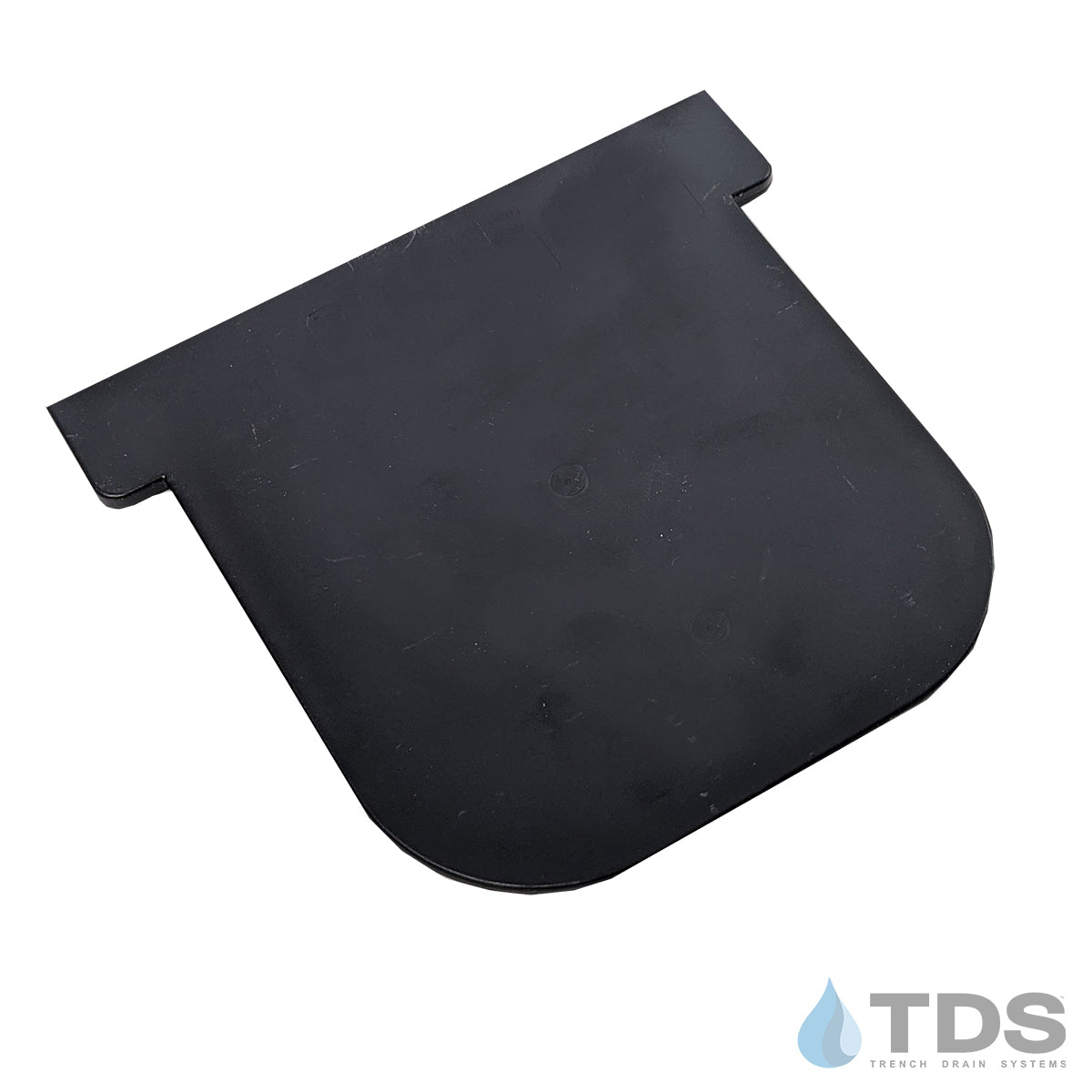

    • Qty.1, closed end inlet cap (HYDRO-CE) per kit

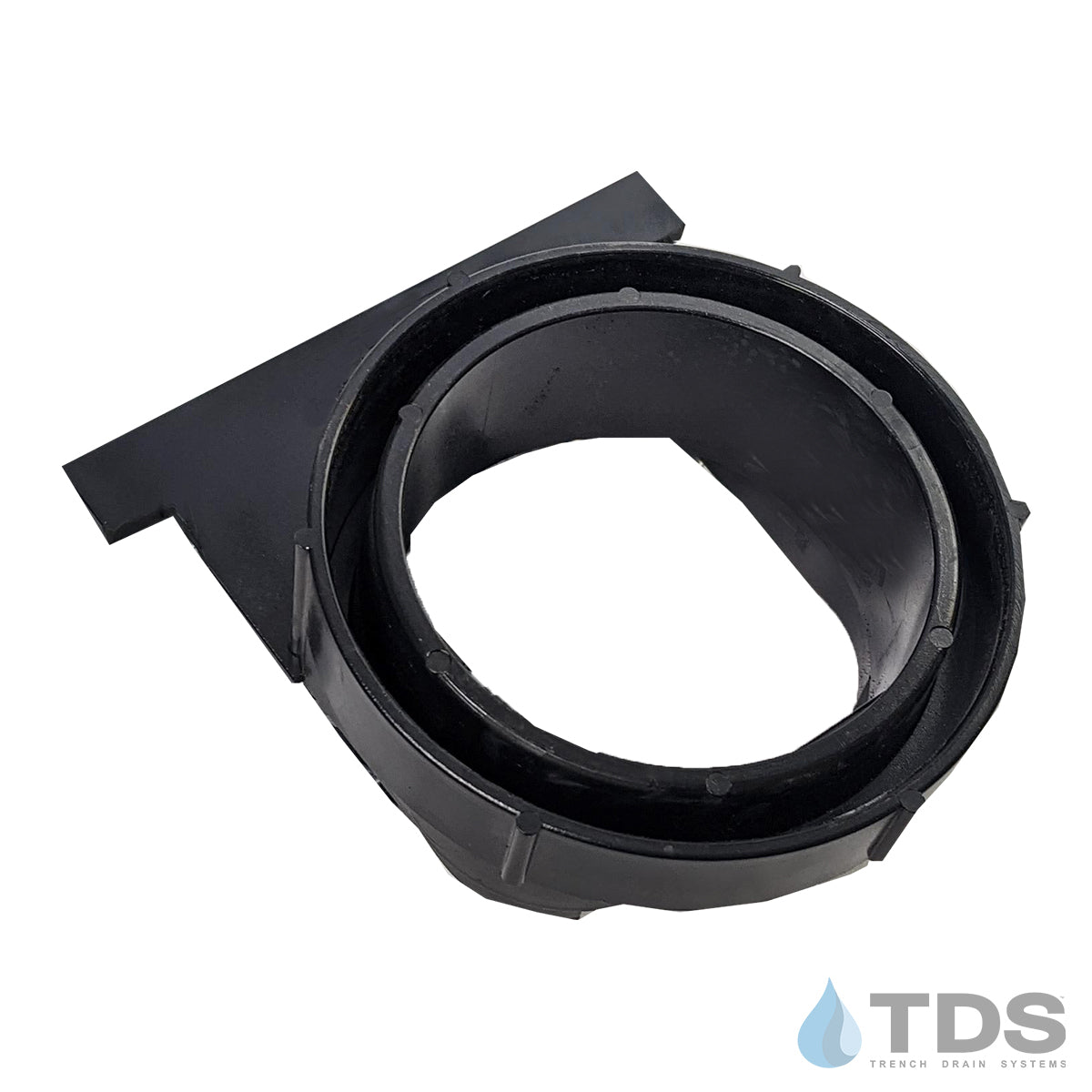

    • Qty.1, open end outlet cap (HYDRO-OE) per kit
    • Two locking bars (LD100X-5) and two screws per 1M channel section

    New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Vinylester FRP (SKU#486) slots measure 0.9" on center and is rated as a Load Class B. Grate measures 39.13" x 4.81"  (1 grate per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.



    ULMA Hydro Plus drawing

    486 fiberglass grate specifications

    HYDROPLUS Benefits:

    • Modular and robust design
    • Lightweight and easy to transport and handle
    • High drainage capacity
    • Simple leak tight tongue and grooved assembly
    • Pre-marked to cut at 0.5M, maintaining the leak tight tongued and grooved assembly
    • Pre-joined outlets, vertical and horizontal
    • Easy to trim to any length with a manual saw
    • Inlet closed end cap and outlet open end cap; Fit 3" or 4" SCH 40 pipe, or 4" SDR 35 connections.
    • Installation instructions printed on base of channel
    • Operating temperatures range from -20°C (-4°F) to 80°C (176°F)
    • Two locking bars (LD100X-5) and two screws per linear meter
    • Ideal for inner streets, courtyards, playgrounds, schools, parks, gardens

    CLICK HERE for HYDROPLUS Installation Instructions

    CLICK HERE for ULMA Declaration of Conformity

    NOTE: For proper installation, grates must be in channel during installation.
