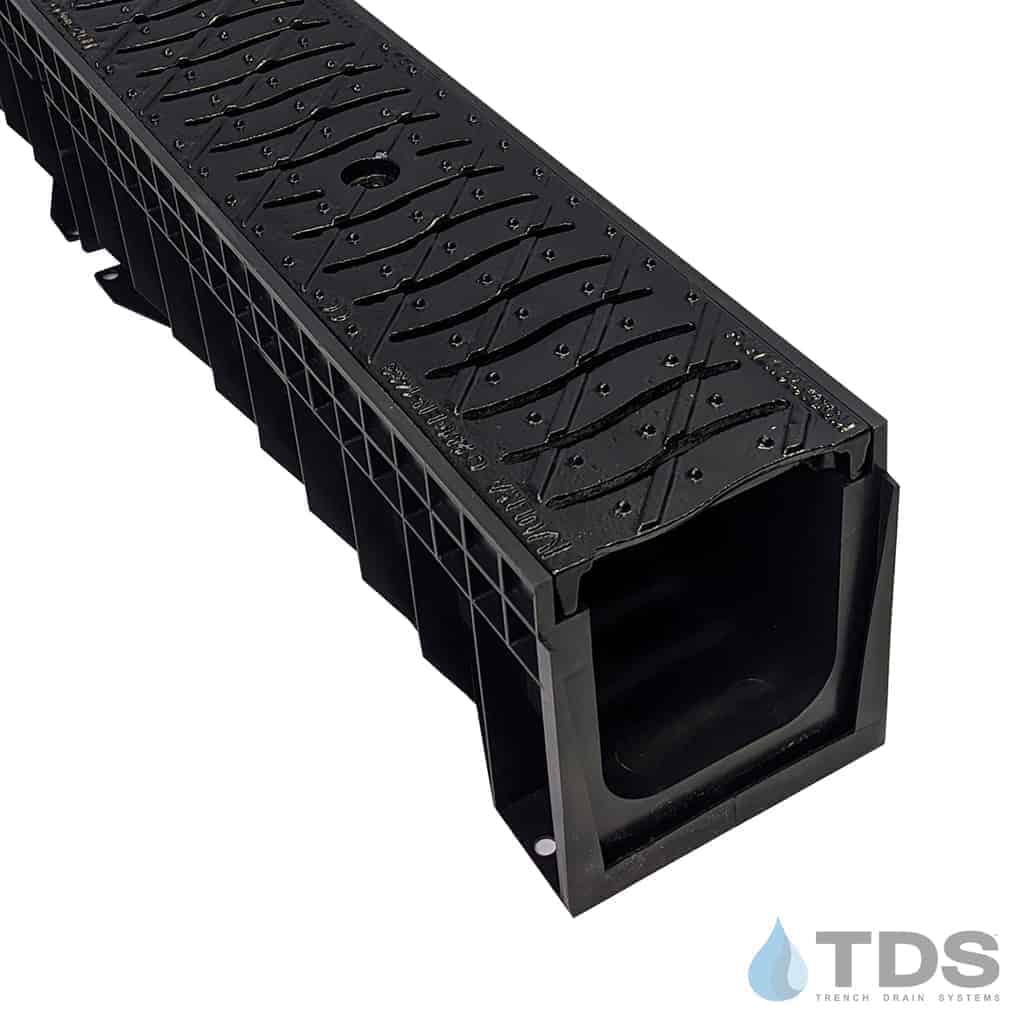

ULMA HYDROPLUS with 480/FNHX100KCCM Ductile Iron Heel Proof Slotted Grate Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA

System: HYDROPLUS

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit Includes:

• 1M (3.3 ft) channel sections
• Grating
• Closed-end cap
• Open-end outlet
• Locking Devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Ductile Iron Grate (item# 480) 122mm x 500mm; Qty.2 grates per 1M channel section (Specification Sheet)
• Qty.1, closed end inlet cap (HYDRO-CE) per kit
• Qty.1, open end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100-3) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Ductile Iron Grate (480) is rated as a Load Class C, and measures 124mm X 499mm. (2 grates per 1M channel section.) The 480 grate is a non-slip slotted heelproof design. Channels are marked to aid in cutting to 0.5M length if needed.

Ductile Iron Slotted Grate (480) Specification Sheet
