ULMA HYDROPLUS with 450 / IN100KCA Stainless Steel Slotted Grate Class A

ULMA HYDROPLUS with 450 / IN100KCA Stainless Steel Slotted Grate Class A

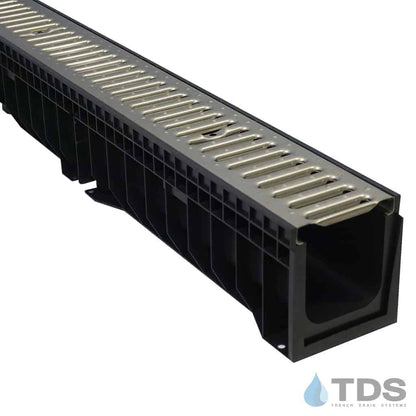

  • Hydro Plus with 450 SS Slotted 1M Grate Class A
  • ULMA HYDROPLUS Trench Drain Channel
  • ULMA HYDROPLUS Channel - bottom view
  • ULMA 450 IN100KCA-Stainless Steel Slotted Grate
1 6

Drainage Kits

HYDRO-450-01

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices
$229.33 USD
$229.33 USD
Sale Sold out
Kit Meter Length
View full details

PRODUCT DOCUMENTATION

  • ADDITIONAL INFORMATION

    Grate Width: 4.81" for ULMA

    Grate Thickness: 0.75"

    Grate Material / Color / Finish: Stainless Steel 304

    Manufacturer: ULMA

    System: HYDROPLUS

    Grate Load Class: Class A

    Grate Pattern: SLOTTED

    Grate Pattern Style: SLOTTED

    Channel Material: Plastic - (PP, HDPE, PE)

    Channel Frame / Edging: Frame - None and Edging - None

    Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

  • DESCRIPTION

    New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm, and overall height 148mm. 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Stainless Steel Slotted (450) Grate is rated as a Load Class A, and measures 122mm x 1 m. (1 grate per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

    Kit Includes:

    • 1M (3.3 ft) polypropylene channel sections
    • Stainless Steel Slotted Grate 122mm x 1M (450); Qty.1 grate per 1M channel section
    • Qty.1, closed-end inlet cap (HYDRO-CE) per kit
    • Qty.1, open-end outlet cap (HYDRO-OE) per kit
    • Two locking bars (LD100X-2) and two screws per 1M channel section

    ULMA Hydro Plus drawing

    450 Grate Specification Sheet

    IN100KCA 450 Stainless Steel Slotted ULMA Grate 1M



    HYDROPLUS Benefits:

    • Modular and robust design
    • Lightweight and easy to transport and handle
    • High drainage capacity
    • Simple leak-tight tongue and groove assembly
    • Pre-marked to cut at 0.5M, maintaining the leak-tight tongue-and-groove assembly
    • Pre-joined outlets, vertical and horizontal
    • Easy to trim to any length with a manual saw
    • Inlet closed-end cap and outlet open-end cap; Fit 3" or 4" SCH 40 pipe, or 4" SDR 35 connections.
    • Installation instructions are printed on the base of the channel
    • Operating temperatures range from -20° (-4°F) to 80°C (176°F)
    • Two locking bars (LD100X-2) and two screws per linear meter
    • Ideal for inner streets, courtyards, playgrounds, schools, parks, gardens

    CLICK HERE for HYDROPLUS Installation Instructions

    CLICK HERE for ULMA Declaration of Conformity

    NOTE: For proper installation, grates must be in the channel during installation.
