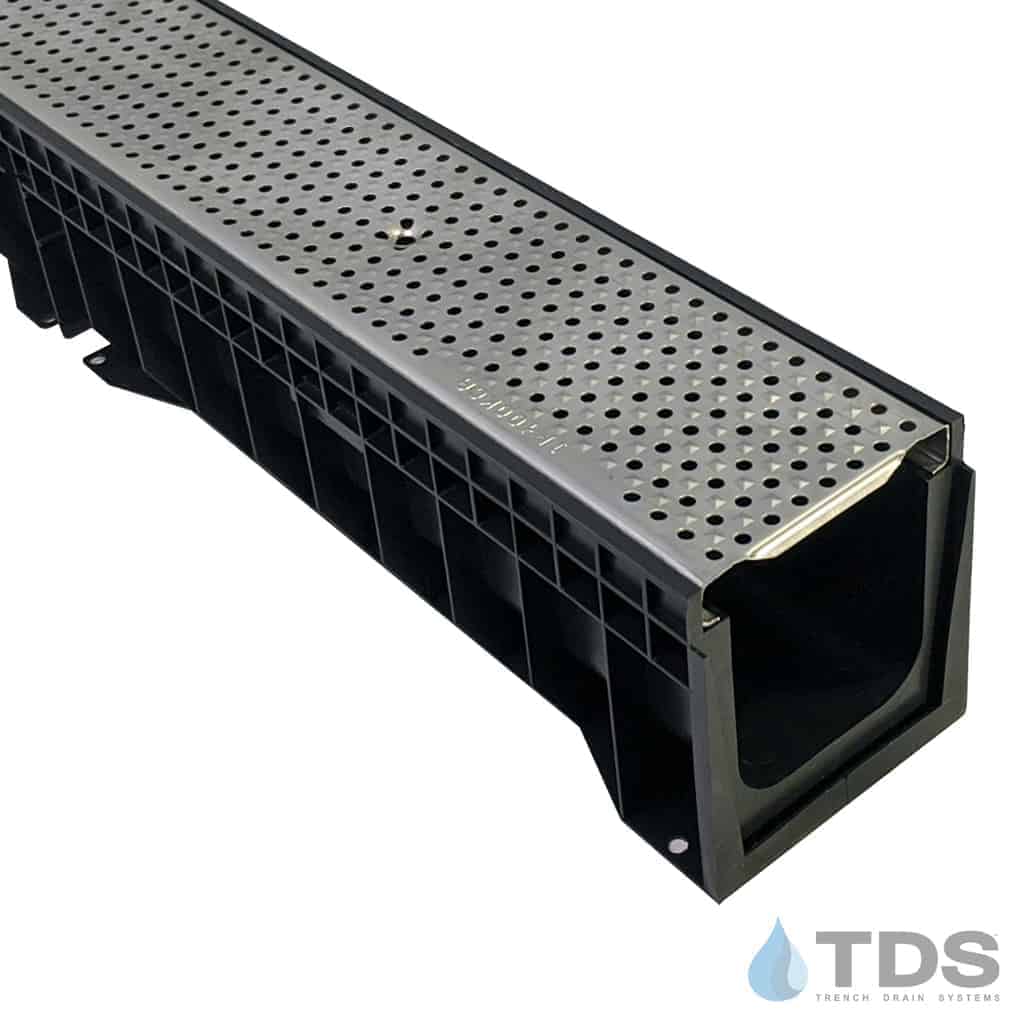

ULMA HYDROPLUS with 440 / IP100KCA Stainless Steel Perforated Grate Class A

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: ULMA

System: HYDROPLUS

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Stainless Steel Perforated Grate 122mm x 1M (440); Qty.1 grate per 1M channel section
• Qty.1, closed end inlet cap (HYDRO-CE) per kit
• Qty.1, open end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100X-2) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm. 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Stainless Steel Perforated (440) Grate is rated as a Load Class A, and measures 122mm X 1M. (1 grate per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

440 Grate Specification Sheet

IN100KCA 450
