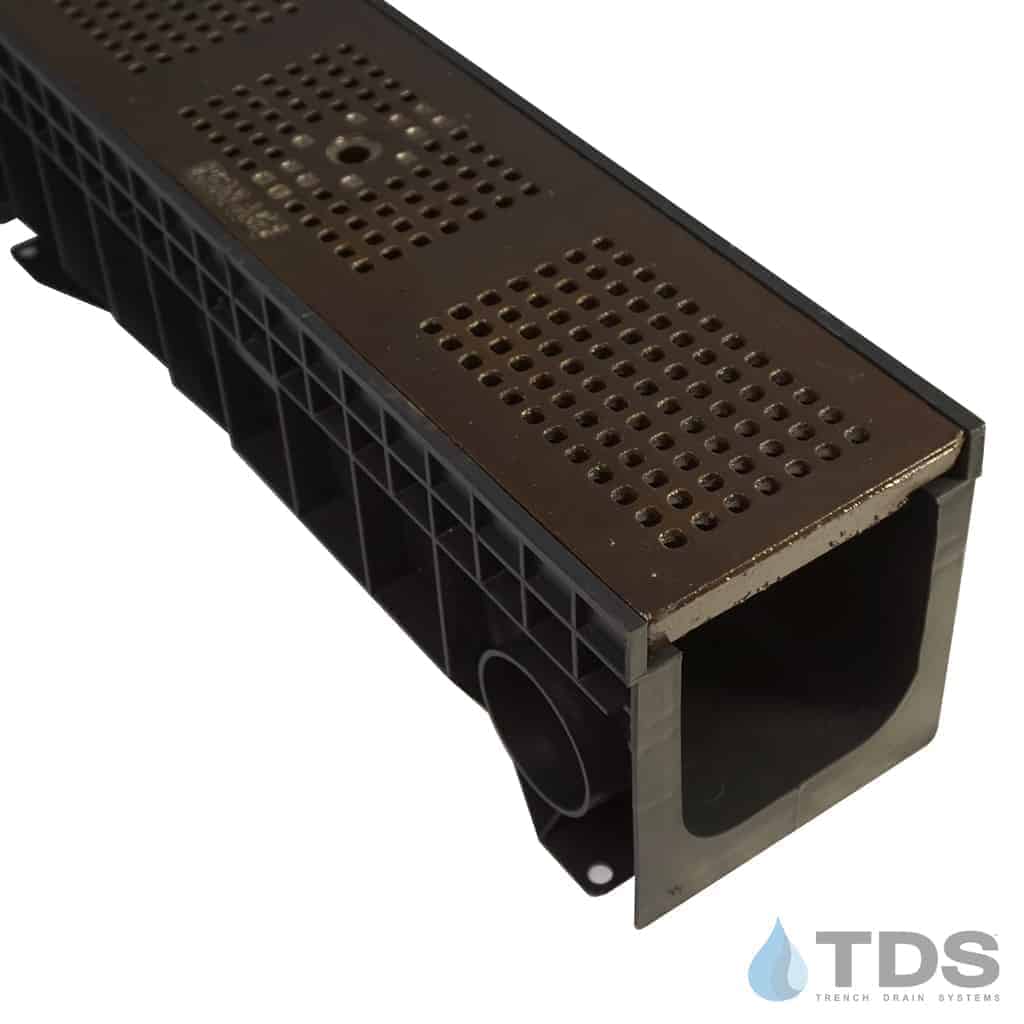

ULMA HYDROPLUS w/ Iron Age IA-BAY-0520-HP-BF Mission Bay HP BoOF Cast Iron Grate Class B

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

HYDROPLUS Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Mission Bay Heel Proof Cast Iron Grate with BoOF (Baked on Oil Finish) Finish 122mm x 493mm; Qty.2 grates per 1M channel section
• Qty.1, closed end inlet cap (HYDRO-CE) per kit
• Qty.1, open end outlet cap (HYDRO-OE) per kit
• Two locking bars (LD100-3) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Mission Bay Heel Proof Cast Iron - BoOF Finish (Baked on Oil Finish) Grate (IA-BAY-0520-HP-BF) is rated as a Load Class B, and measures 19.56 in X 4.81 in. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.

Argo IA-BAY-0520-HP-BF Grate Specification Sheet

HYDROPLUS Benefits:

• Modular and robust design
• Lightweight and easy to transport and handle
• High drainage capacity
• Simple leak tight tongue and grooved assembly
• Pre-marked to cut at 0.5M, maintaining the leak tight tongued and grooved assembly
• Pre-joined outlets, vertical and horizontal
• Easy to trim to any length with a manual saw
• Inlet closed end cap and outlet open end cap; Fit 3" or 4" SCH 40 pipe, or 4" SDR 35 connections.
• Installation instructions printed on base of channel
• Operating temperatures range from -20°C (-4°F) to 80°C (176°F)
• Two locking bars (LD100-3) and two screws per linear meter
• Ideal for inner streets, courtyards, playgrounds, schools, parks, gardens

CLICK HERE for HYDROPLUS Installation Instructions

CLICK HERE for ULMA Declaration of Conformity

NOTE: For proper installation, grates must be in channel during installation.

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
