ULMA HYDROPLUS w/ IA-LOC-0520 / IA-LOC-0520 Iron Age Locust Cast Iron Raw Grate Class B

ULMA HYDROPLUS w/ IA-LOC-0520 / IA-LOC-0520 Iron Age Locust Cast Iron Raw Grate Class B

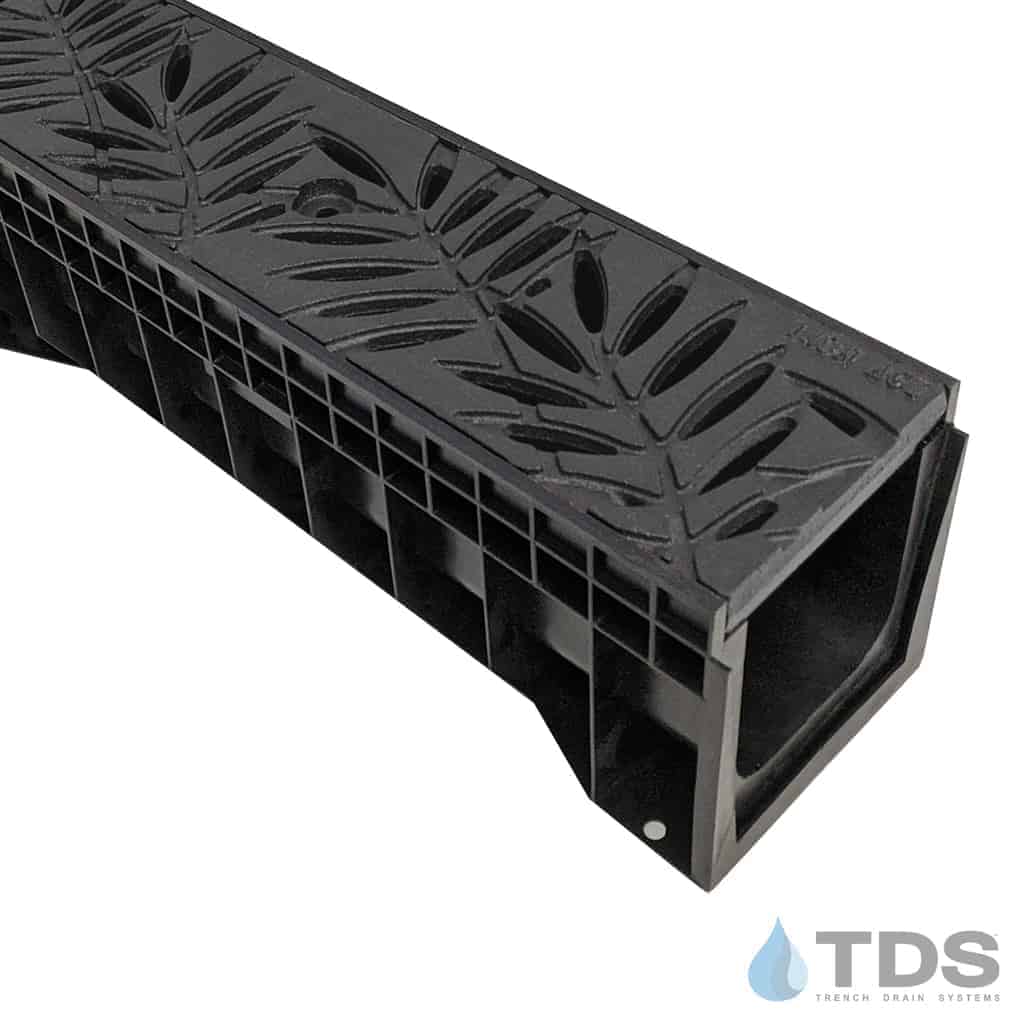

  • Hydro Plus with Iron Age Locust Cast Iron Grate IA-LOC-0520 Class B
1 1

Drainage Kits

HYDRO-IA-LOC-01

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices
$465.78 USD
$465.78 USD
Sale Sold out
Kit Meter Length
View full details

PRODUCT DOCUMENTATION

  • ADDITIONAL INFORMATION

    Grate Width: 4.81" for ULMA

    Grate Thickness: 0.75"

    Grate Material / Color / Finish: Ductile/Cast Iron - Raw

    Manufacturer: ULMA and Iron Age Designs

    System: HYDROPLUS

    Grate Load Class: Class B

    Grate Pattern: LOCUST

    Grate Pattern Style: NATURE

    Channel Material: Plastic - (PP, HDPE, PE)

    Channel Frame / Edging: Frame - None and Edging - None

    Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

  • DESCRIPTION

    Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

    HYDROPLUS Kit Includes:

    • 1M (3.3 ft) polypropylene channel sections
    • Locust Cast Iron Raw Grate 122mm x 494mm; Qty.2 grates per 1M channel section
    • Qty.1, closed end inlet cap (HYDRO-CE) per kit
    • Qty.1, open end outlet cap (HYDRO-OE) per kit
    • Two locking bars (LD100-3) and two screws per 1M channel section

    New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Locust Cast Iron Grate IA-LOC-0520 is rated as a Load Class B, and measures 19-7/16 in X 4-13/16 in. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.



    ULMA Hydro Plus drawing

    IA-LOC-0520 Grate Specification Sheet IA-Loc-0520-Cast-Iron-Locust-Ironage-Deco

    HYDROPLUS Benefits:

    • Modular and robust design
    • Lightweight and easy to transport and handle
    • High drainage capacity
    • Simple leak tight tongue and grooved assembly
    • Pre-marked to cut at 0.5M, maintaining the leak tight tongued and grooved assembly
    • Pre-joined outlets, vertical and horizontal
    • Easy to trim to any length with a manual saw
    • Inlet closed end cap and outlet open end cap; Fit 3" or 4" SCH 40 pipe, or 4" SDR 35 connections.
    • Installation instructions printed on base of channel
    • Operating temperatures range from -20°C (-4°F) to 80°C (176°F)
    • Two locking bars (LD100-3) and two screws per linear meter
    • Ideal for inner streets, courtyards, playgrounds, schools, parks, gardens

    CLICK HERE for HYDROPLUS Installation Instructions

    CLICK HERE for ULMA Declaration of Conformity

    NOTE: For proper installation, grates must be in channel during installation.

    Want this kit with a BoOF grate? Click Here

    Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
