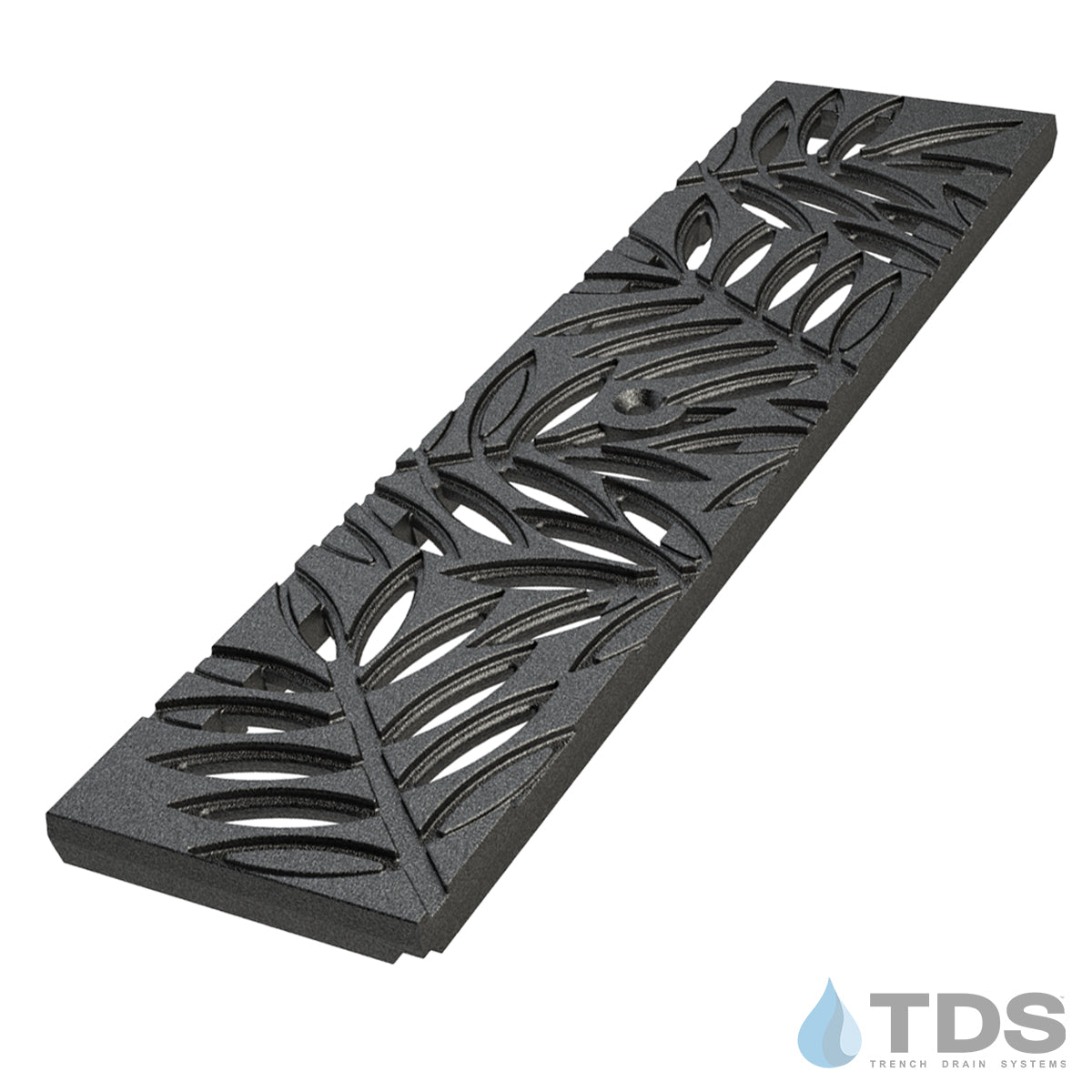

ULMA HYDROPLUS w/ FERN Ductile Iron Grate - Class C

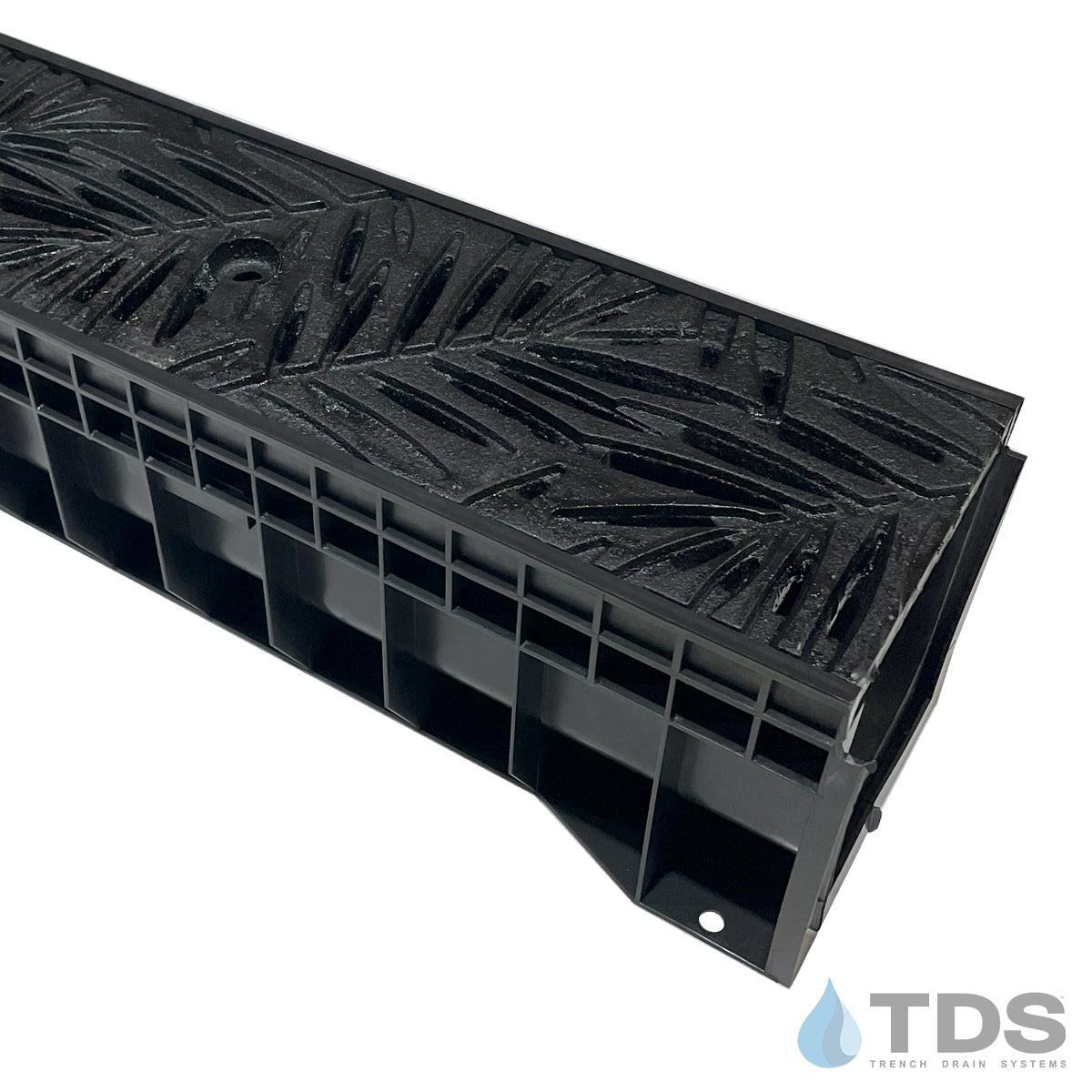

ULMA HYDROPLUS w/ FERN Ductile Iron Grate - Class C

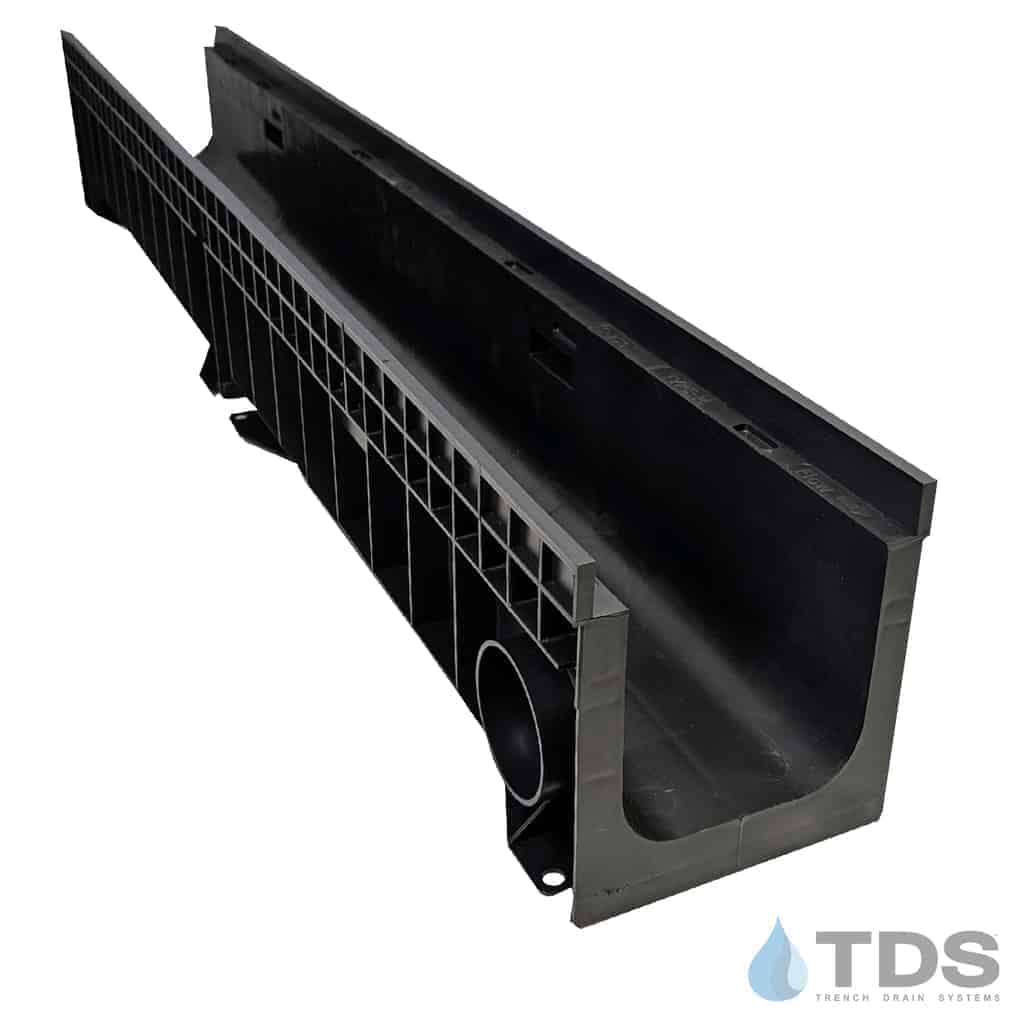

  • HYDROPLUS 5 inch Channel showing side outlet
  • ULMA HYDROPLUS Channel - bottom view
1 7

Drainage Kits

HYDRO-BA-FERN-01

Each Kit Includes :

  • Channel(s)
  • Grate(s)
  • Locking device(s)
  • End Cap
  • End Outlet
  Large Project? Request Quote!
$291.86 USD
$0.00 USD $291.86 USD
Sale Sold out
Kit Meter Length
View full details

Additional Information

  • Grate Width: 4.81"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron
  • Manufacturer: ULMA, TDS
  • System: HYDROPLUS
  • Grate Load Class: C
  • Grate Pattern: FERN
  • Grate Pattern Style: Nature
  • Channel Material: Plastic (PP, HDPE, PE)
  • Frame/Edging: No Frame, No Edging
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

The ULMA Hydroplus is a lightweight polypropylene linear trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements.

Channel external width is 138mm, internal width 100mm, 148mm overall height, and 1 meter in length.

Each Kit Includes :

  • Channel(s)
  • Grate(s)
  • Locking device(s) (LD100X-3)
  • End Cap (
  • End Outlet

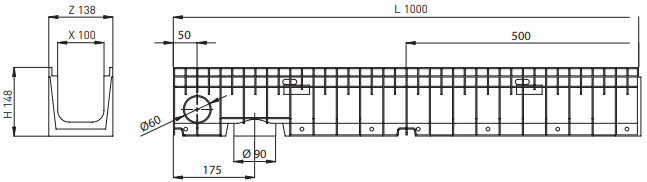

ULMA Hydro Plus drawing

CLICK HERE for HYDROPLUS Installation Instructions

CLICK HERE for ULMA Declaration of Conformity

NOTE: For proper installation, grates must be in the channel during installation.

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
