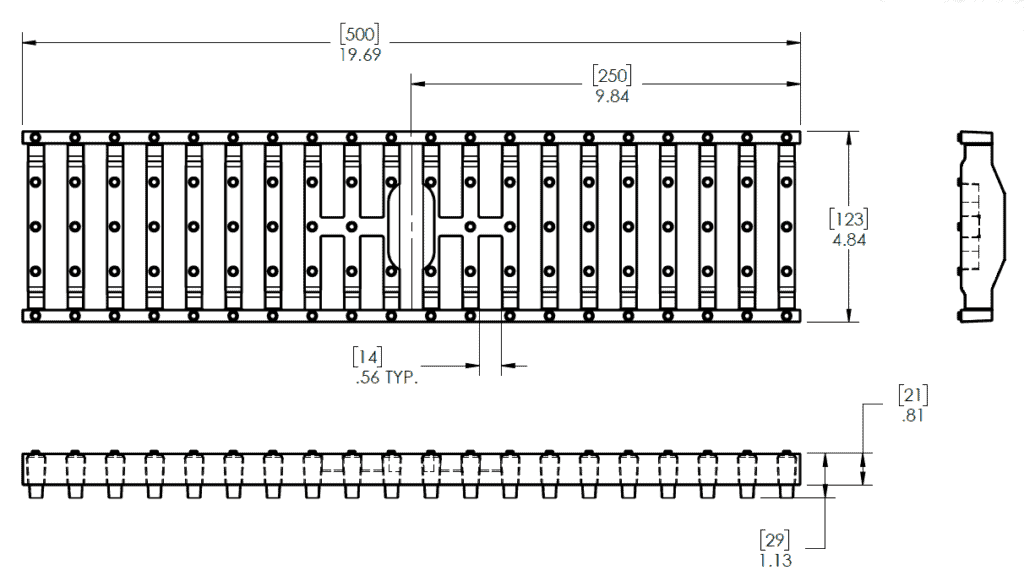

ULMA HYDROPLUS w/ 462G Ductile Iron Grate - Class D

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: HYDROPLUS

Grate Load Class: Class D

Grate Pattern: BARS

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

The ULMA Hydroplus with 462G Gatic grates is a lightweight polypropylene linear trench drain system for pedestrian and occasional car traffic.

Channel external width is 138mm, internal width 100mm, 148mm overall height, and 1 meter in length.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Locking device(s) (LD100X-3)
• End Cap (
• End Outlet
