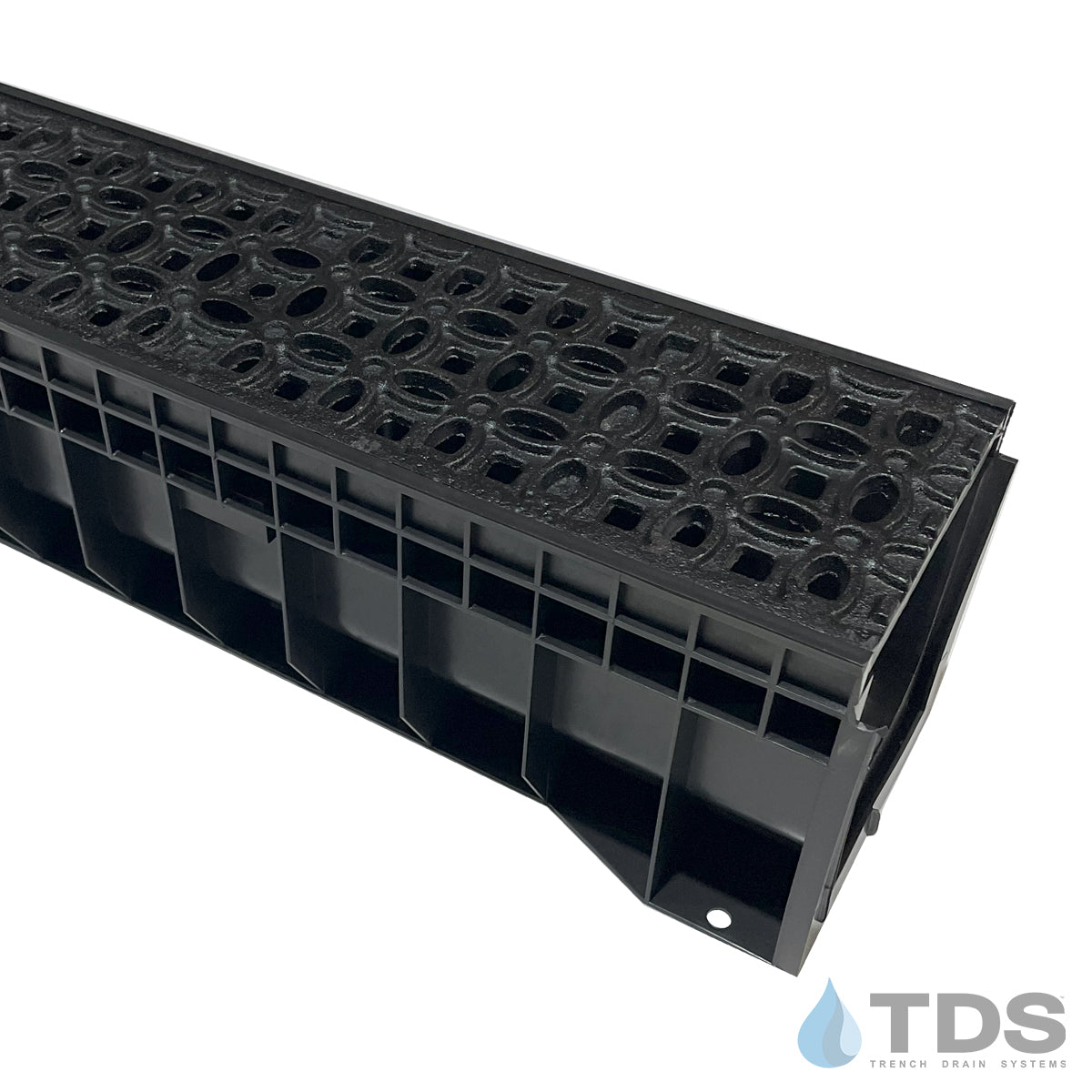

ULMA HYDROPLUS w/ LUNA Ductile Iron Grate - Class C

ULMA HYDROPLUS w/ LUNA Ductile Iron Grate - Class C

  • HYDROPLUS 5 inch Channel showing side outlet
  • ULMA HYDROPLUS Channel - bottom view
1 7

Drainage Kits

HYDRO-BA-LUNA-01

Each Kit Includes :

  • Channel(s)
  • Grate(s)
  • Locking device(s)
  • End Cap
  • End Outlet
  Large Project? Request Quote!
$291.86 USD
$291.86 USD
Sale Sold out
Kit Meter Length
View full details

PRODUCT DOCUMENTATION

  • ADDITIONAL INFORMATION

    Grate Width: 4.81" for ULMA

    Grate Thickness: 0.75"

    Grate Material / Color / Finish: Ductile/Cast Iron - Raw

    Manufacturer: ULMA and TDS (Trench Drain Systems)

    System: HYDROPLUS

    Grate Load Class: Class C

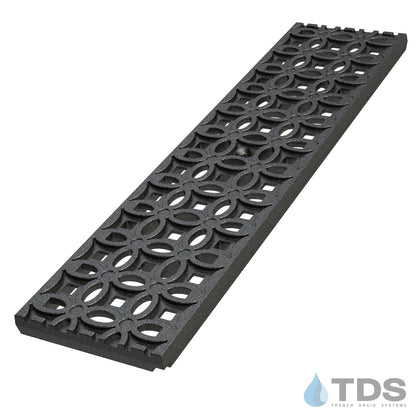

    Grate Pattern: LUNARIA

    Grate Pattern Style: PERFORATED

    Channel Material: Plastic - (PP, HDPE, PE)

    Channel Frame / Edging: Frame - None and Edging - None

    Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

  • DESCRIPTION

    The ULMA Hydroplus is a lightweight polypropylene linear trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements.

    Channel external width is 138mm, internal width 100mm, 148mm overall height, and 1 meter in length.

    Each Kit Includes :

    • Channel(s)
    • Grate(s)
    • Locking device(s) (LD100X-3)
    • End Cap (s)
    • End Outlet


    ULMA Hydro Plus drawing

    CLICK HERE for HYDROPLUS Installation Instructions

    CLICK HERE for ULMA Declaration of Conformity

    Specification Sheet for BA-LUNA-0520

    NOTE: For proper installation, grates must be in the channel during installation.

    Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

    Grating is also available in a Baked-on Oil Finish. Request your quote today!
