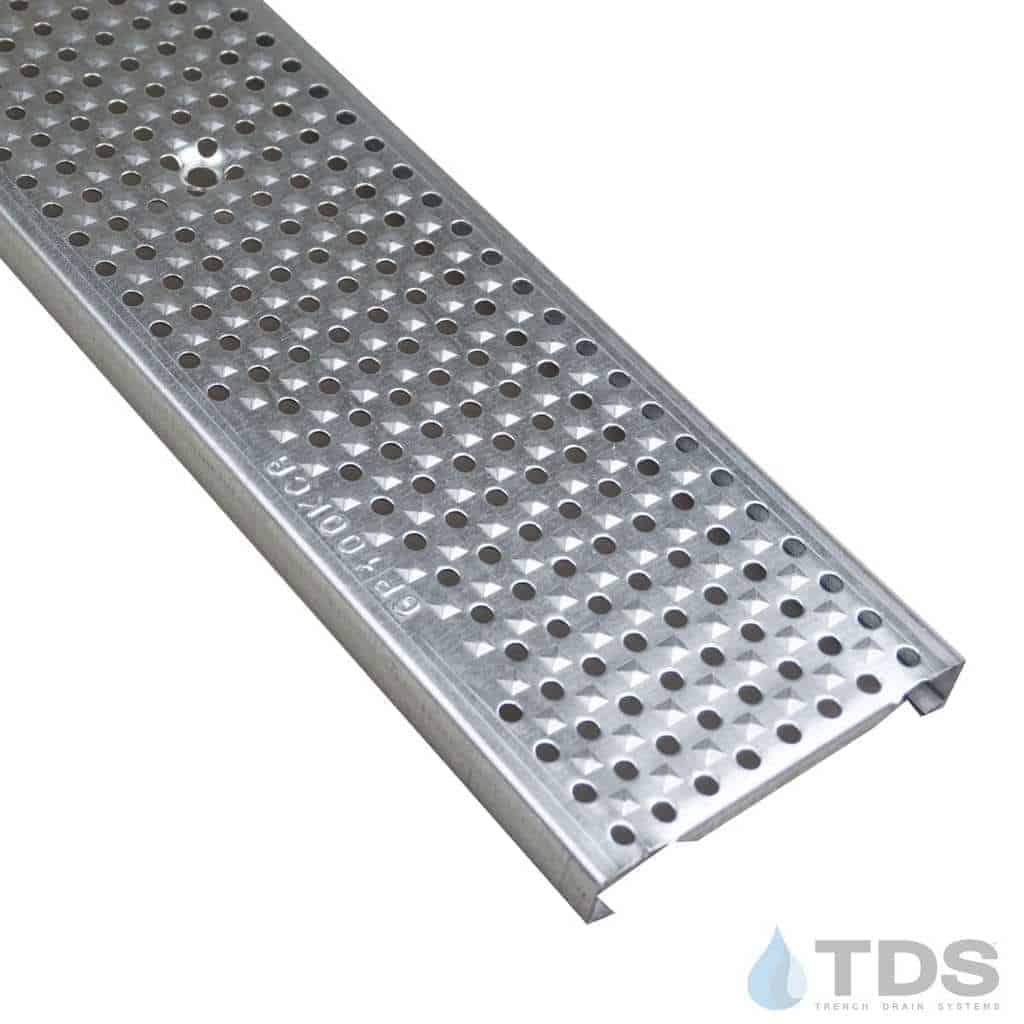

ULMA HYDROPLUS Mini with Galvanized Perforated Tread Grate (410 / GP100KCA) Class A

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: HYDROPLUS MINI

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Residential

Kit includes channel section(s), grate(s), 2 end caps, locking devices

The HYDROPLUS Mini is a shallow neutral trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Polypropylene channel externally measures 132mm wide, internal width of 100mm and overall height 84mm and 1 meter in length. Compatible with the same full line of grates as offered for the ULMA polymer concrete channels, this system offers a wide variety of options.

• Modular design offers the flexibility of two bottom outlet knockout options for pipe connections
• Two side knockouts can be used as 'open' outlets or connected to other channels to create a tee or right and left 90° bends
• Every 10cm, the channel is molded on the bottom to allow for cuts to be made, providing a natural coupler that will slide into that female section of the next channel
• The bottom of each channel contains diagrams for cutting, installation as well as cutting angles
• Channels conveniently feature raised notches that assist in properly aligning saws for diagonal cuts when fabricating angles
• The side cut-out area allows for a 90-degree assembly of channels if the project requires

Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.

HYDROPLUS Mini Kit Includes:

• 1M (3.3 ft) polypropylene channel sections
• Galvanized perforated tread grate (item# 410) 122mm x 1M; Qty.1 grate per 1M channel section, Load Class A
• Qty.2, closed-end caps per kit
• Two locking bolts (LD100MX-2) per 1M channel section

ULMA 410 / GP100KCA Grate Specification Sheet

CLICK HERE for HYDROPLUS Mini Installation Instructions
