Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish
Manufacturer: ULMA, TDS
System: HYDROPLUS Mini
Grate Load Class: D
Grate Pattern: WAVE
Grate Pattern Style: NATURE
Channel Material: Plastic (PP, HDPE, PE)
Channel Frame / Edging: No Frame, No Edging
Application: Residential, Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior
Description

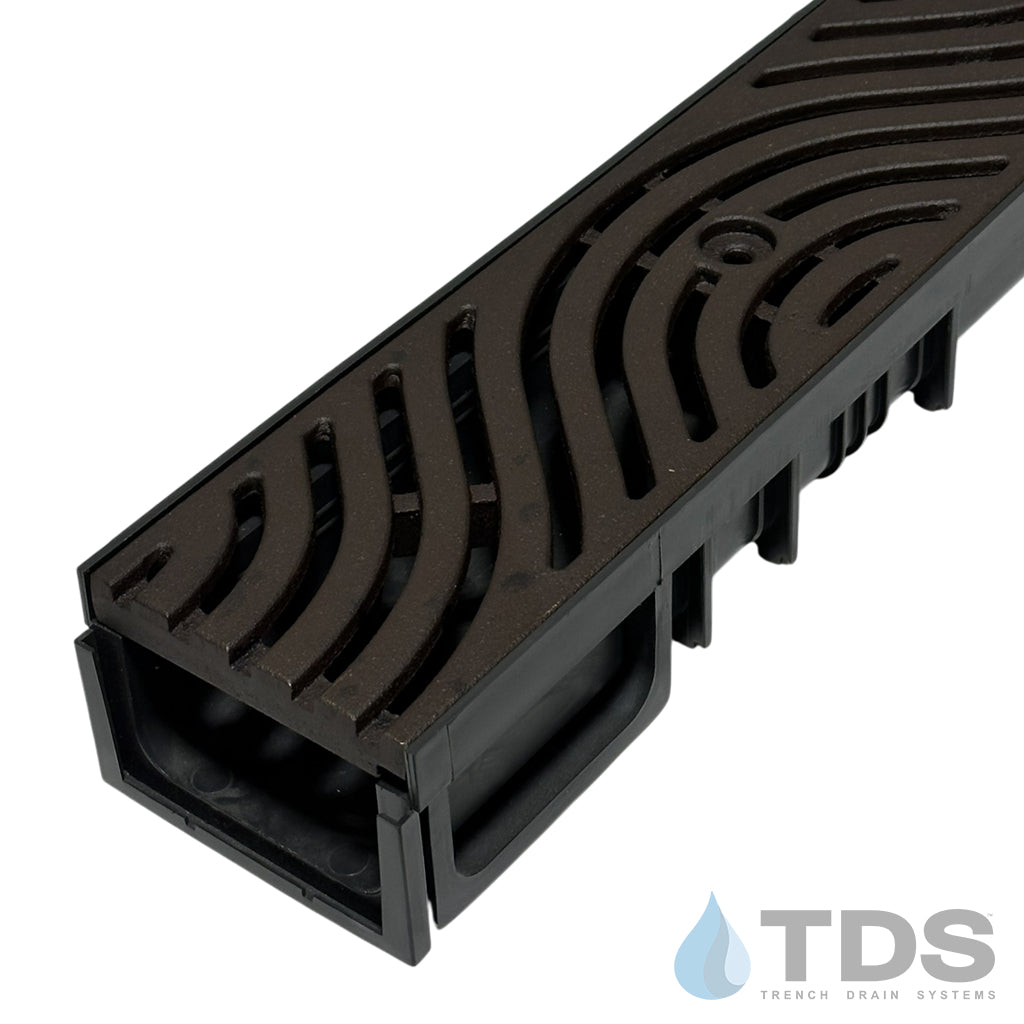

The HYDROPLUS Mini is a shallow neutral trench drain for pedestrian and occasional light vehicular traffic. This polypropylene channel externally measures 132mm wide, internal width of 100mm, and overall height 84 mm, and 1 meter in length. Compatible with the same full line of grates as offered for the ULMA polymer concrete channels, this system offers a wide variety of options.This product is only available via Quote.
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture. With the Baked-on Oil Finish, these grates will still rust over time but will slowly transition to a brown shade over time.
Please allow an additional 2 weeks for delivery of BoOF products.
What is Baked On Oil Finish (BoOF)? Click Hereto learn more.
NOTE: For proper installation, grates must be in the channel during installation.
HYDROPLUS Mini Kit Includes:
1M (3.3 ft) polypropylene channel sections

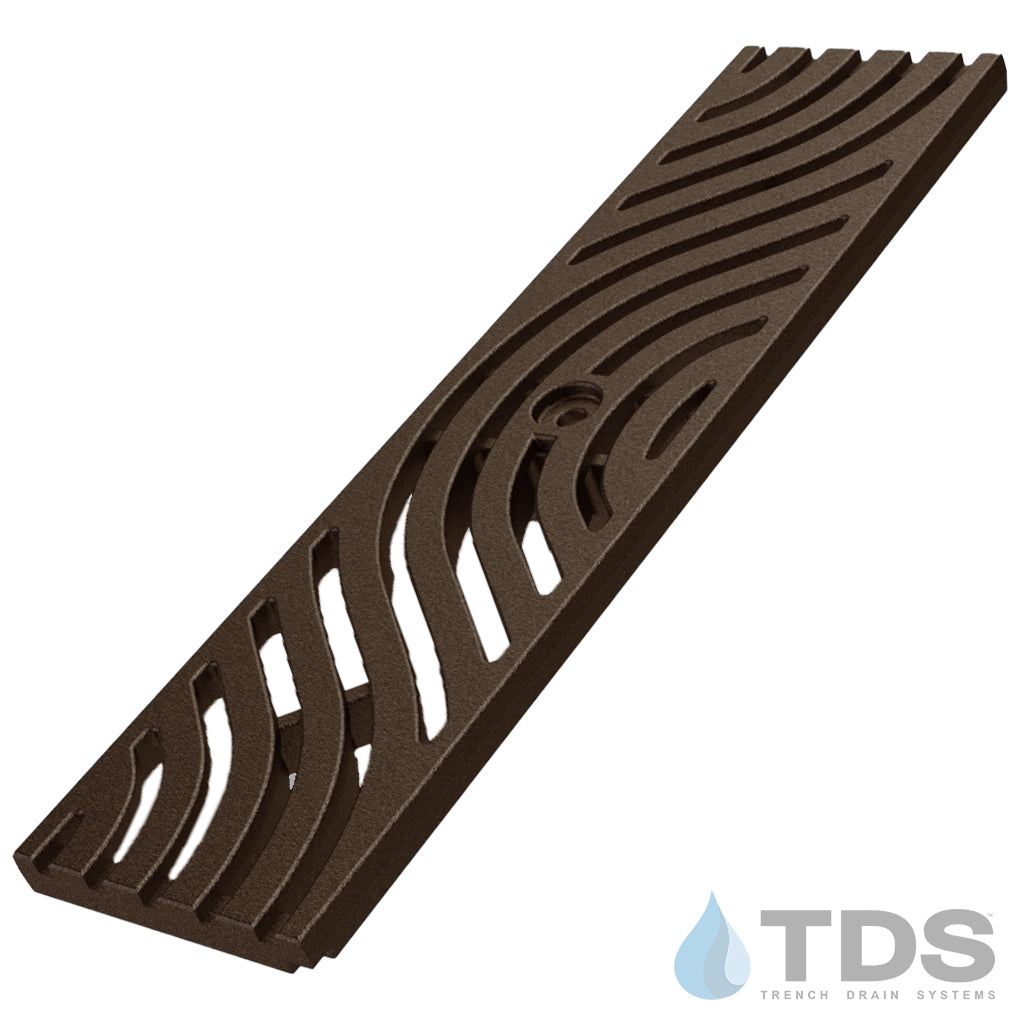

Ductile Iron Grate 124mm x 497mm (2 grates per 1M channel section)
Closed-end caps (2 per kit)
Two locking bolts per 1M channel section
Diagrams are located at the bottom of the channel to assist with installation and custom cuts. Raised notches allow for proper saw alignment for cutting angles as well as straight section cuts.
Modular design offers the flexibility of two bottom outlet knockout options for pipe connections
Two side knockouts can be used as 'open' outlets or connected to other channels to create a tee or right and left 90° bends
Every 10cm, the channel is molded on the bottom to allow for cuts to be made, providing a natural coupler that will slide into the female section of the next channel
The bottom of each channel contains diagrams for cutting, installation, as well as cutting angles
Channels conveniently feature raised notches that assist in properly aligning saws for diagonal cuts when fabricating angles
The side cut-out area allows for a 90-degree assembly of channels if the project requires
Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
