Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices
HYDROPLUS Mini Kit Includes:
- 1M (3.3 ft) polypropylene channel sections

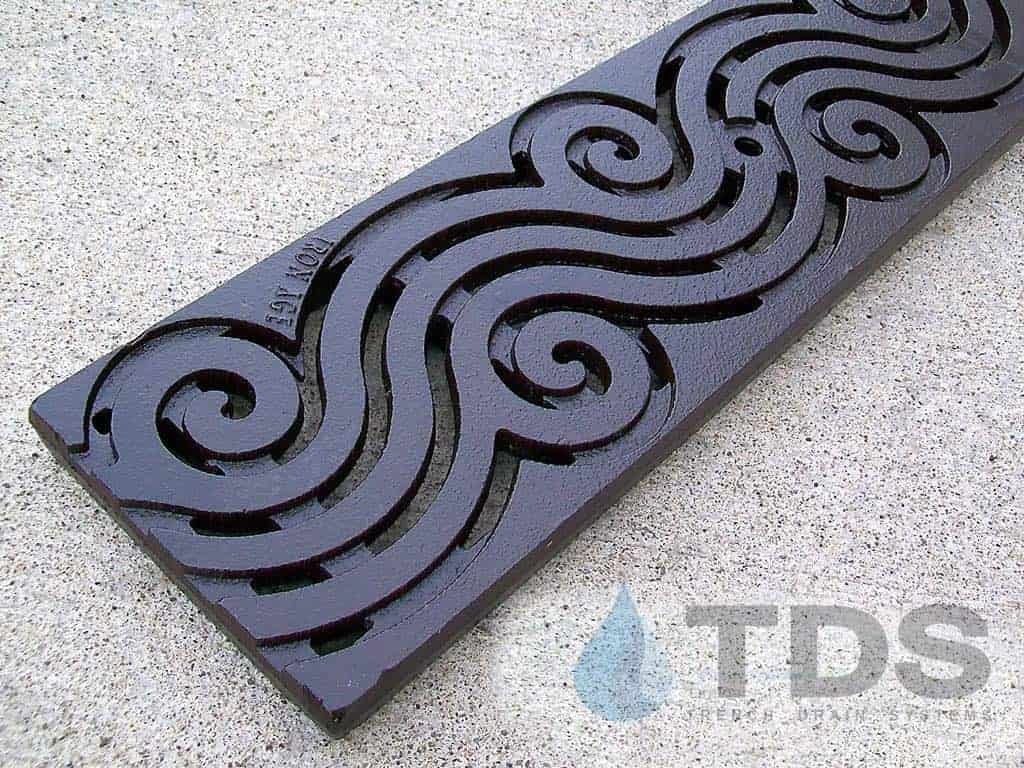

- Argo Heel Proof Cast Iron Grate with BoOF Finish 122mm x 493mm; Qty.2 grates per 1M channel section
- Qty.1, closed-end inlet cap per kit
- Qty.1, open-end outlet cap per kit
- Two locking bolts per 1M channel section

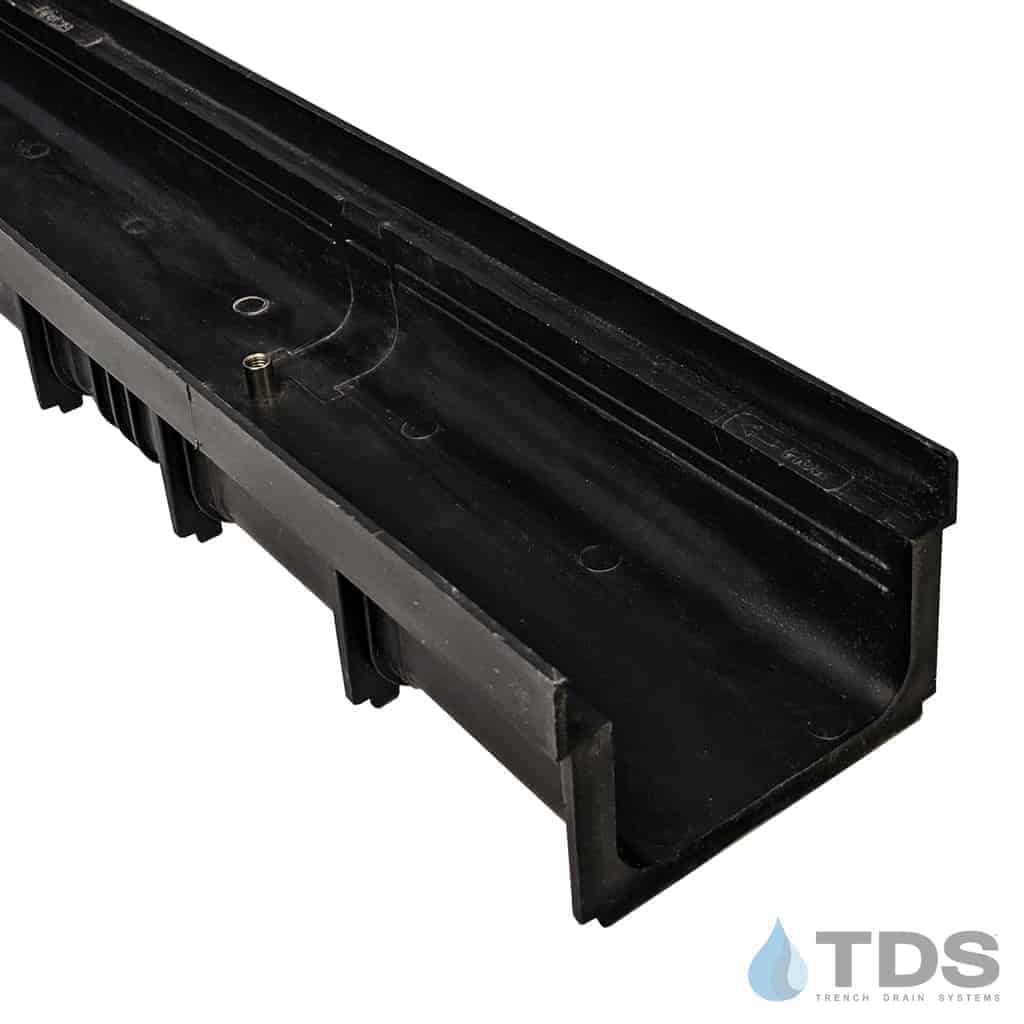

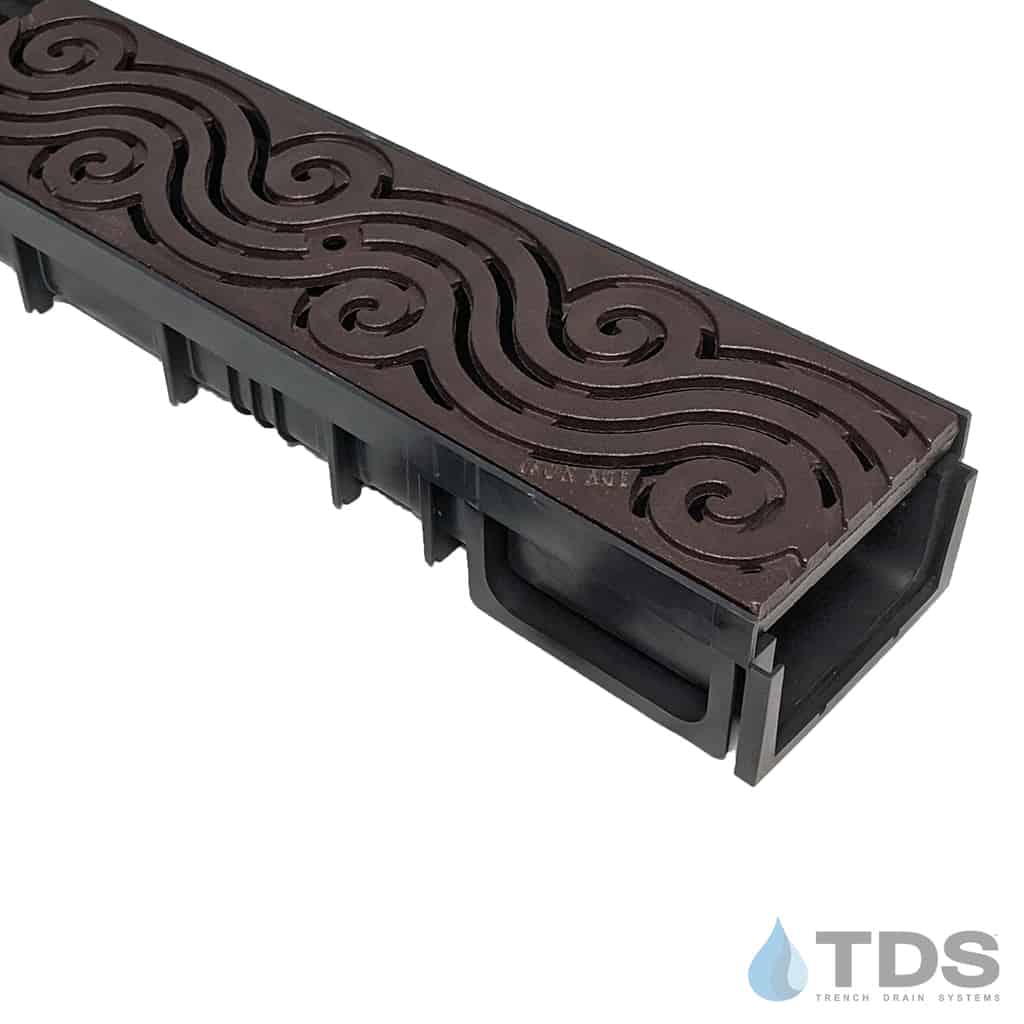

New from ULMA, the HYDROPLUS Mini is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 132mm, internal width 100mm and overall height 84 mm. 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Argo Heel Proof Cast Iron - BoOF Finish Grate (IA-ARGO-0520-HP-BF) is rated as a Load Class B, and measures 4-13/16 in X 19-7/16 in (122mm X 494mm). (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.
Please allow an additional 2 weeks for delivery of BoOF products.
What is Baked On Oil Finish (BooF)? Click Here to learn more.
Argo IA-ARGO-0520-HP Grate Specification Sheet
HYDROPLUS Mini Benefits:
- Modular and robust design
- Lightweight and easy to transport and handle
- High drainage capacity
- Simple leak tight tongue and grooved assembly
- Pre-marked to cut at 0.5M, maintaining the leak-tight-tongued and grooved assembly

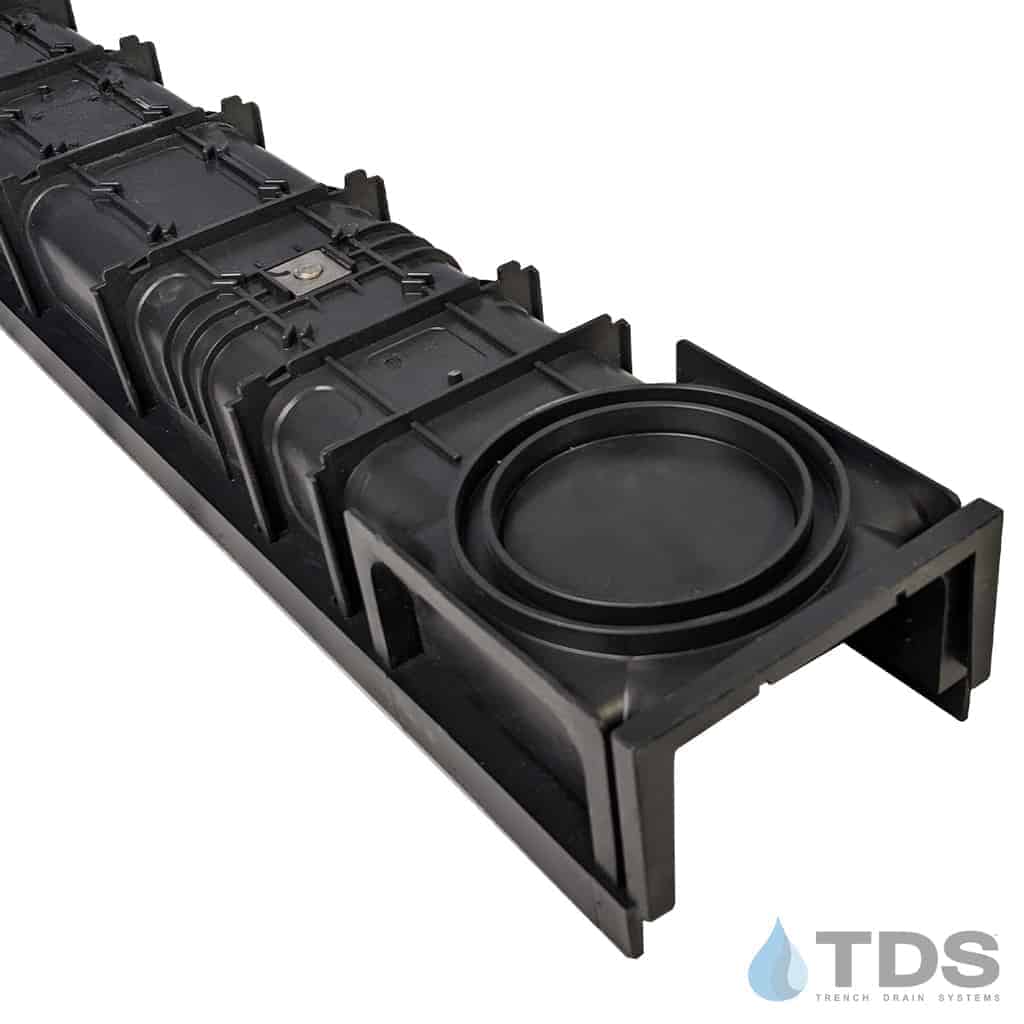

- Pre-joined outlets, vertical and horizontal
- Easy to trim to any length with a manual saw
- Inlet closed-end cap and outlet open-end cap; Fit 3" or 4" SCH 40 pipe, or 4" SDR 35 connections.
- Installation instructions printed on the base of the channel
- Operating temperatures range from -20°C (-4°F) to 80°C (176°F)
- Two locking bolts (LD100-3) per linear meter
- Ideal for inner streets, courtyards, playgrounds, schools, parks, gardens
CLICK HERE for HYDROPLUS Installation Instructions
CLICK HERE for ULMA Declaration of Conformity
NOTE: For proper installation, grates must be in channel during installation.
