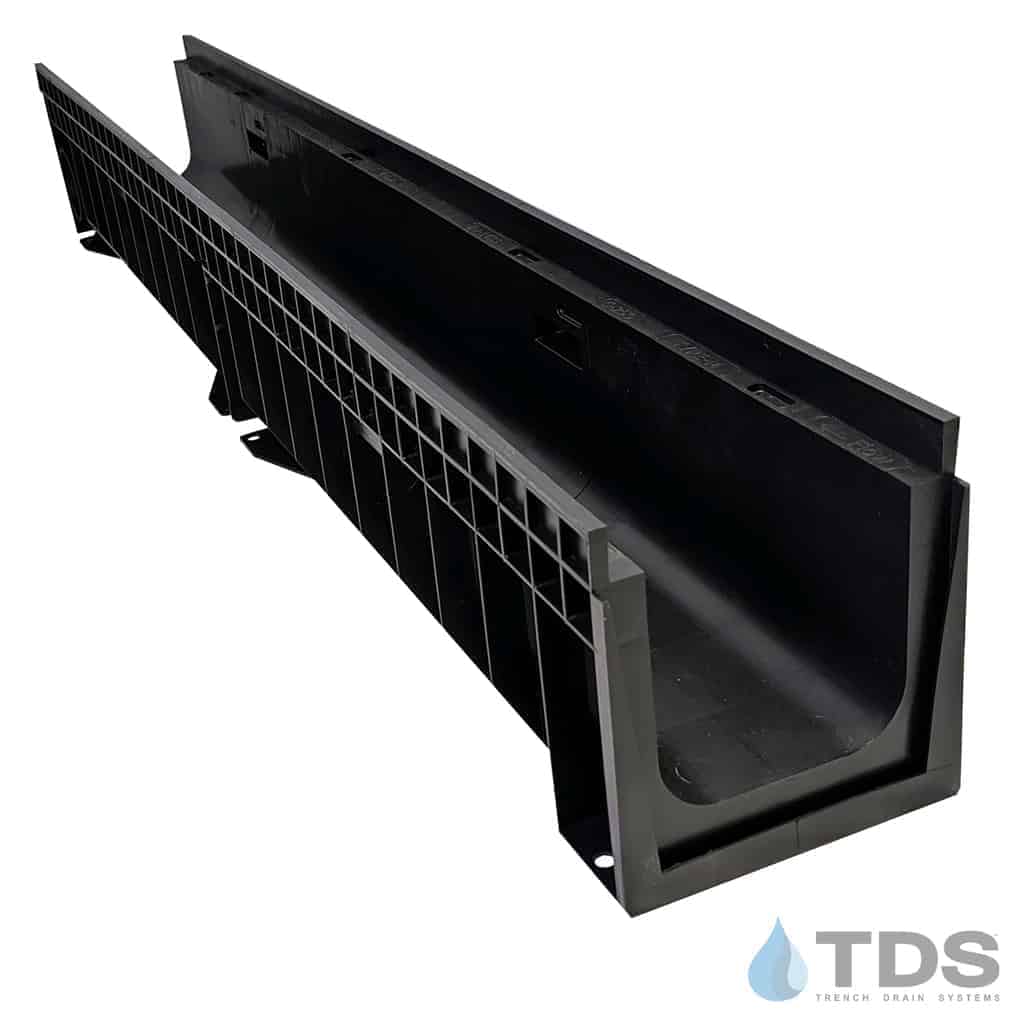

The HYDROPLUS is offered in 1 meter neutral channel sections with tongue and groove assembly. Lightweight yet durable.
Large project? Request a Quote
HYDROPLUS linear drainage system is made with Polypropylene/Polyethylene (PP/PEHD). Channels are lightweight making them easy to transport, handle and can be easily slid together. Installation instructions are readily available since they are molded into the bottom of each channel. This neutral system is compatible with a wide range of grates that are available in stainless steel, galvanized steel, cast iron, fiberglass and Polypropylene.
HYDROPLUS is a leak tight drainage solution with modular tongue and groove assembly. This system is suited for high drainage capacity for load class ratings A through C including commercial, pedestrian, parking and sports applications. Channels are offered in 1 meter neutral sections. Each channel is pre-marked to cut half meter channels and includes pre-joined side and bottom outlets.
Tee and corner options are also available.
HYDROPLUS Installation Guide
NOTE: For proper installation, grates must be in channel during installation.
HYDROPLUS System Specifications - Declaration of Conformity
Channel Length: 1 meter (39.37″)
Channel Width: Outside-138 mm (5.43″)
Channel Width: Inside-100 mm (3.94″)
Channel Depth: 148 mm (5.78″)
Channel Load: A to C
Temperatures: -20°C to 80°C (-4°F to 176°F)
