ULMA D100 w/Bronze Age™ WAVE Ductile Iron Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: D100

Grate Load Class: Class C

Grate Pattern: WAVE

Grate Pattern Style: NATURE

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

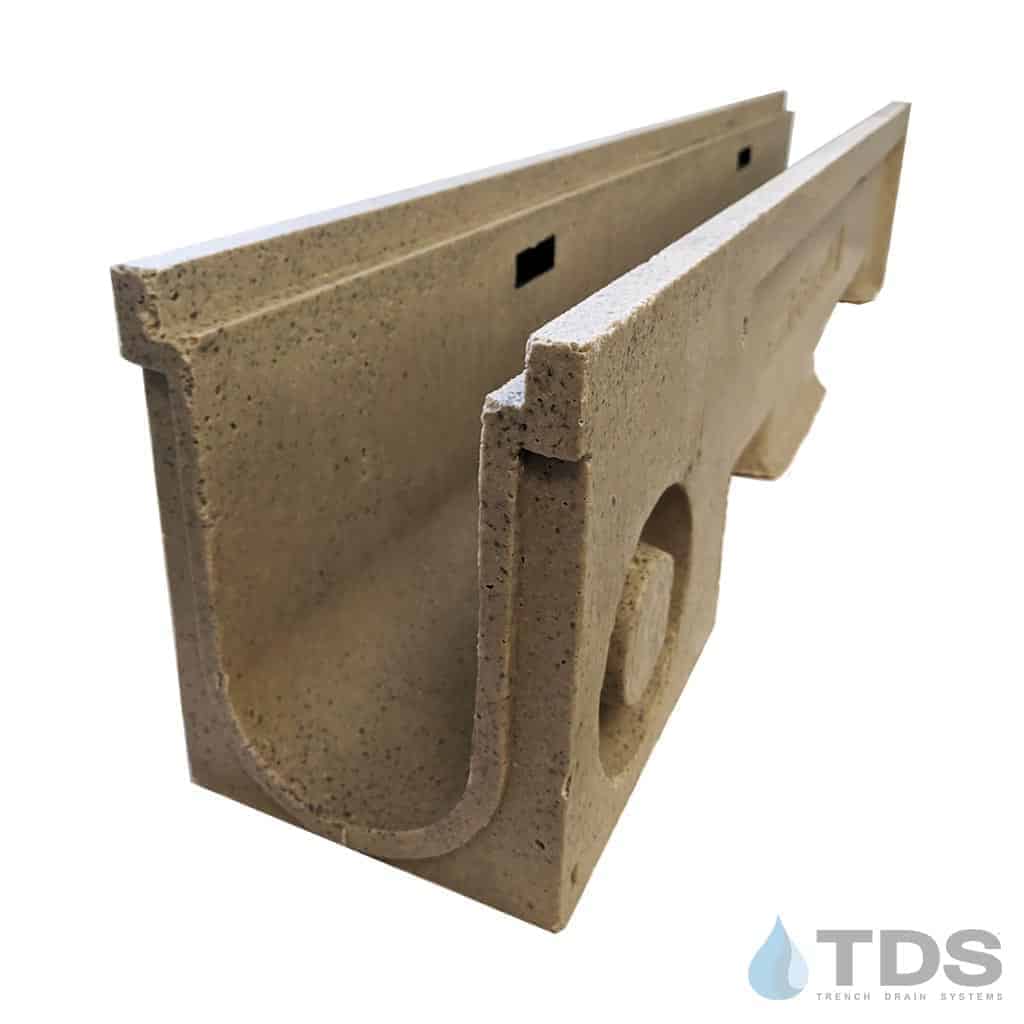

The ULMA D100 is a 5" wide neutral linear trench drain channel with stepped edges for lateral protection. The polymer concrete material allows the channels to have higher impact resistance. It also provides a smooth channel surface with a near-zero absorption rate, which helps to increase the flow rate. The ULMA D100 channels are resistant to 59 different chemicals. (Not rated for sanitary or high-temp applications.)

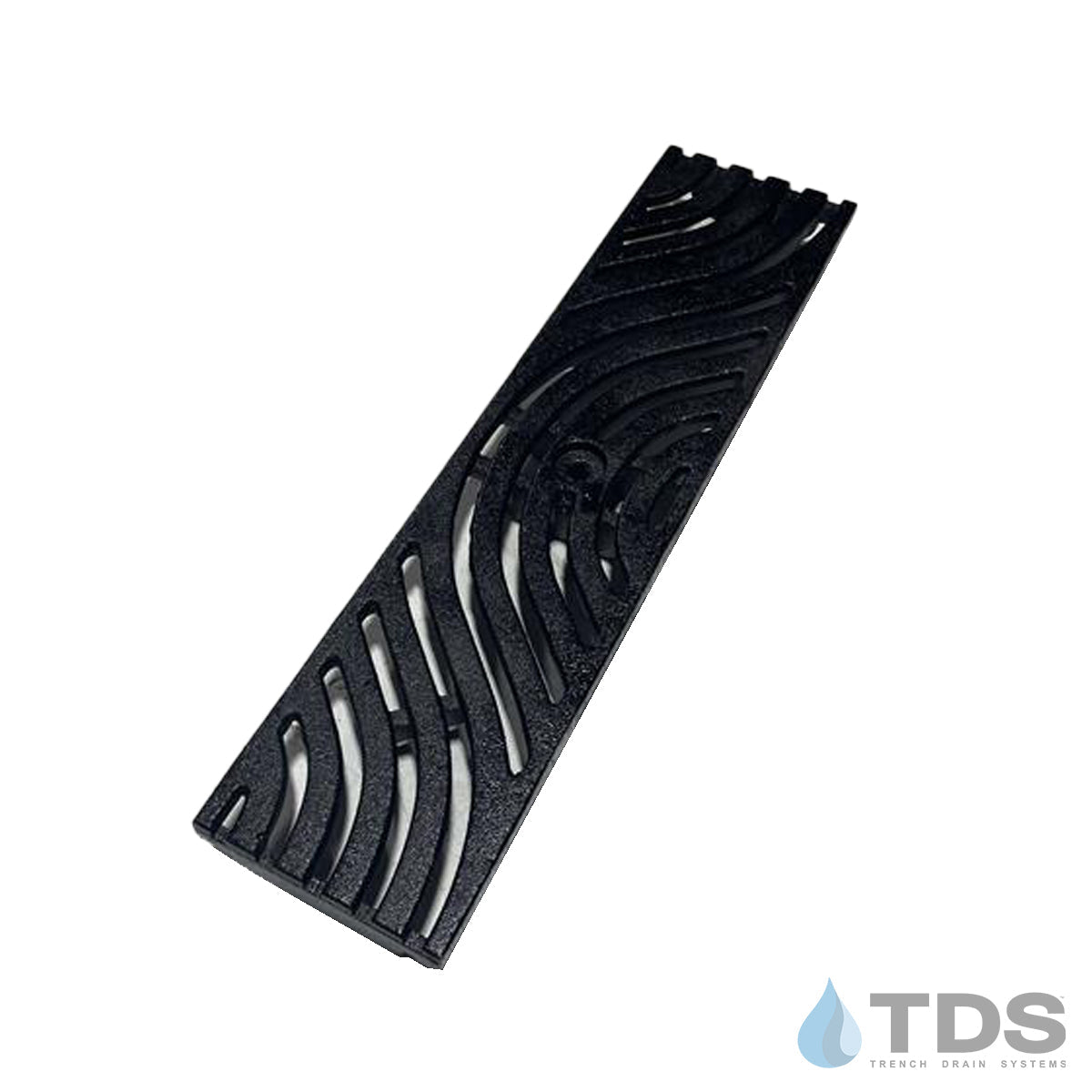

Bronze Age™ decorative ductile iron grate with the Wave pattern is a TDS exclusive and is available in a natural raw finish and is designed to fit the ULMA D100 linear trench drain system.

Specification Sheet for BA-WAVE-0520

Large project? Request a Quote

Drainage Kit Includes:

• Grate
• Locking Device
• Channels - Neutral sections
• Installation Chairs
• Universal End Cap/End Outlets

Grating:

• BA-WAVE-0520 – Ductile Iron Slotted Grate – (Load Class C)

Channel Dimensions:

• Height: 220 mm (8.7")
• Width - Outside: 155 mm (6.1")
• Width - Inside: 100 mm (3.93")
• Length: 1 meter (39.3")
• Molded side and bottom outlet

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Grating is also available in a Baked-on Oil Finish. Request your quote today!

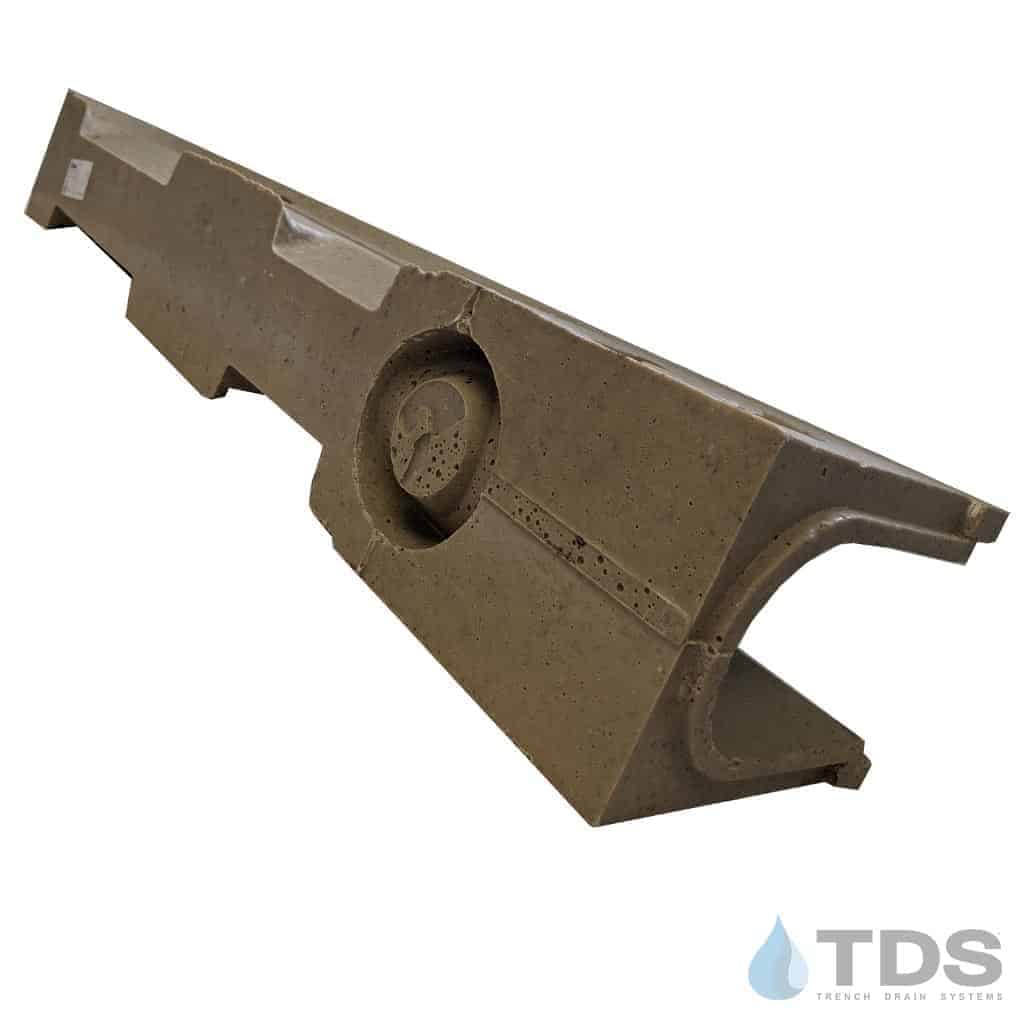

Cut-outs for the side or bottom are located on the channel for easy installation. A Core drill is available before shipment (at an additional cost).
