ULMA D100 w/Bronze Age™ BARS Ductile Iron Grate - RAW

Drainage Kit Includes:

• Grates
• Locking Device
• Channels – Neutral sections
• Installation Chairs
• Universal End Cap/End Outlets

Large project? Request a Quote

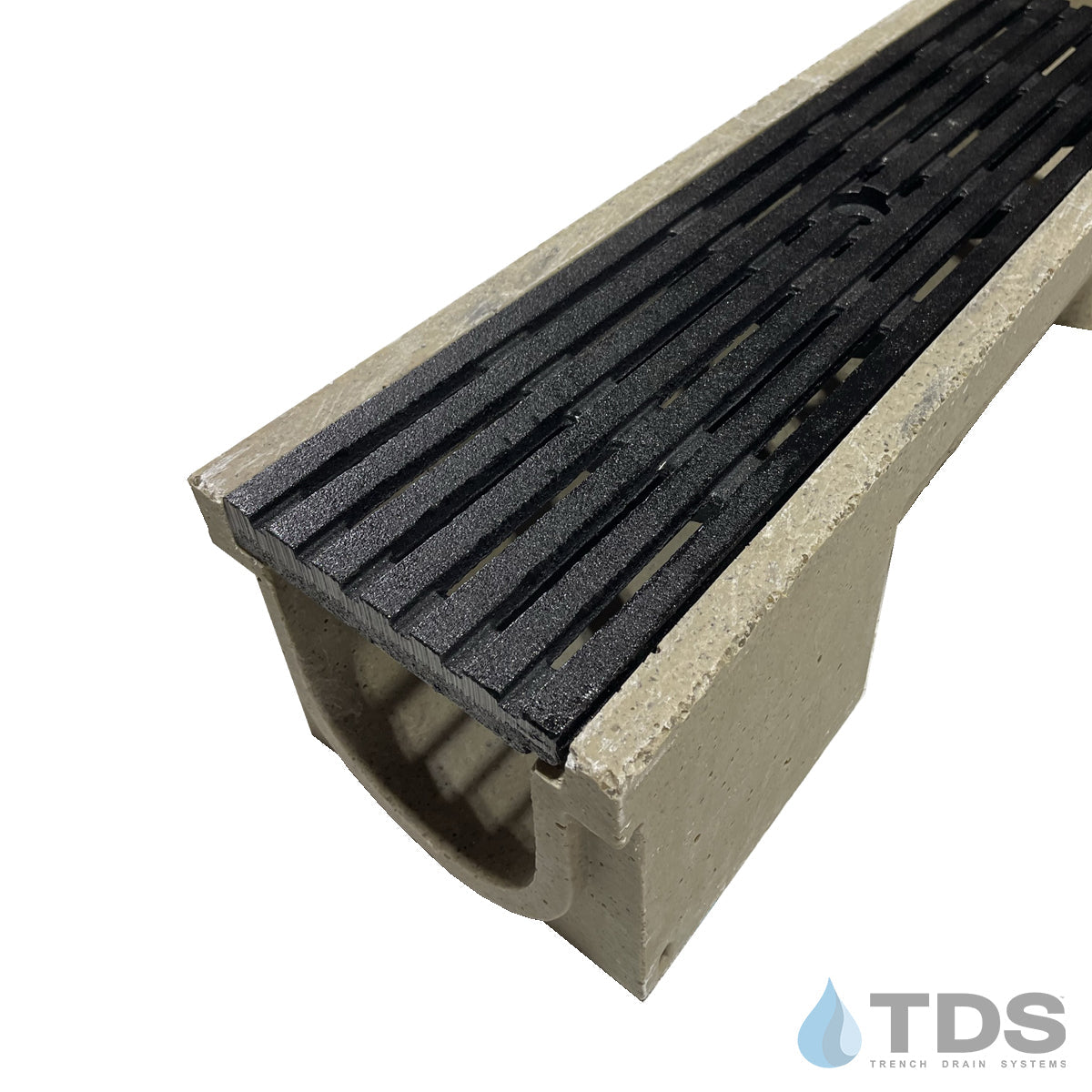

Bronze Age™ decorative ductile iron grate with the Bars pattern is a TDS exclusive and is available in a natural raw finish and designed to fit the ULMA D100 linear trench drain system.

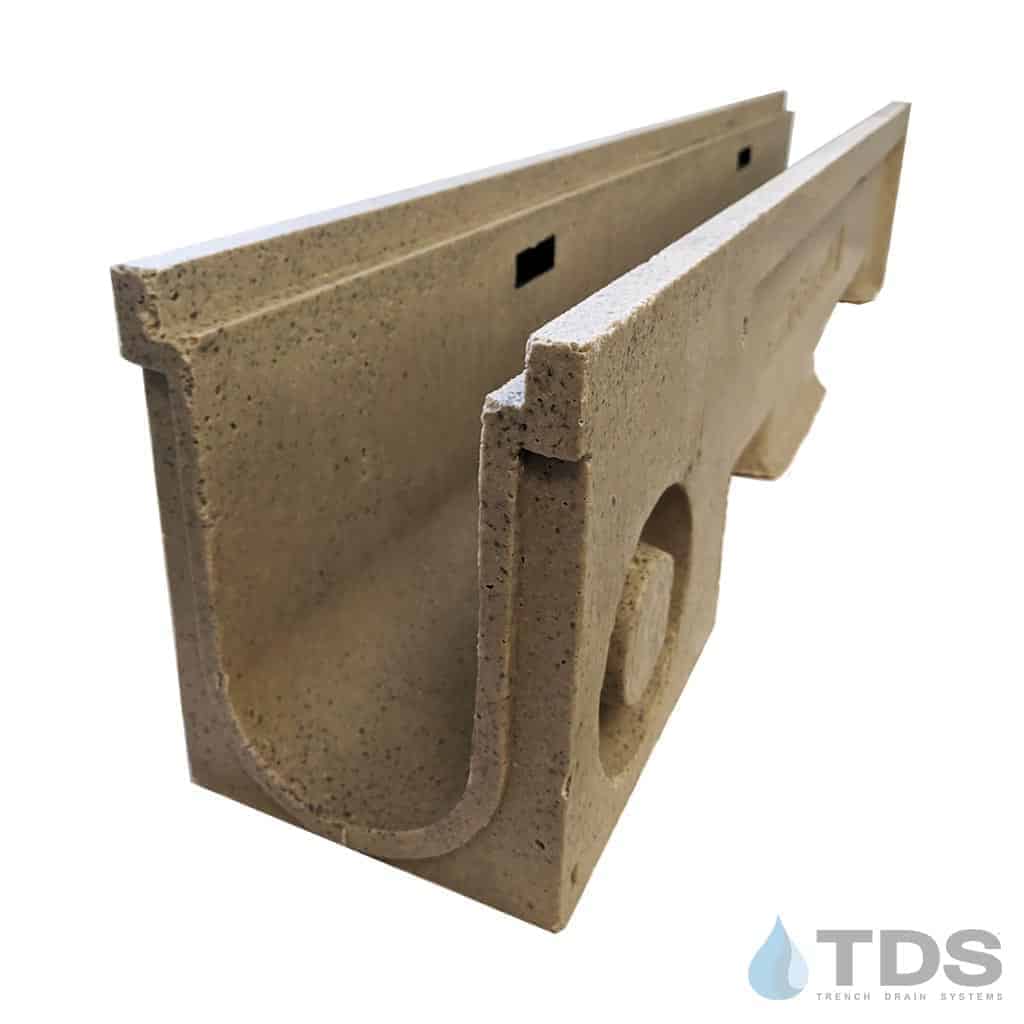

The ULMA D100 is a 5" wide neutral polymer concrete linear trench drain channel with stepped edges for lateral protection. The polymer concrete material allows the channels to have higher impact resistance. It also provides a smooth channel surface with a near zero absorption rate which increases the flow rate, in comparison to concrete which has a 5-10% absorption rate. The ULMA D100 channels are resistant to 59 different chemicals. (Not rated for sanitary or high-temp applications.)

Drainage Kit Includes:

• Grate
• Locking Device
• Channels - Neutral sections
• Installation Chairs
• Universal End Cap/End Outlets

Grating:

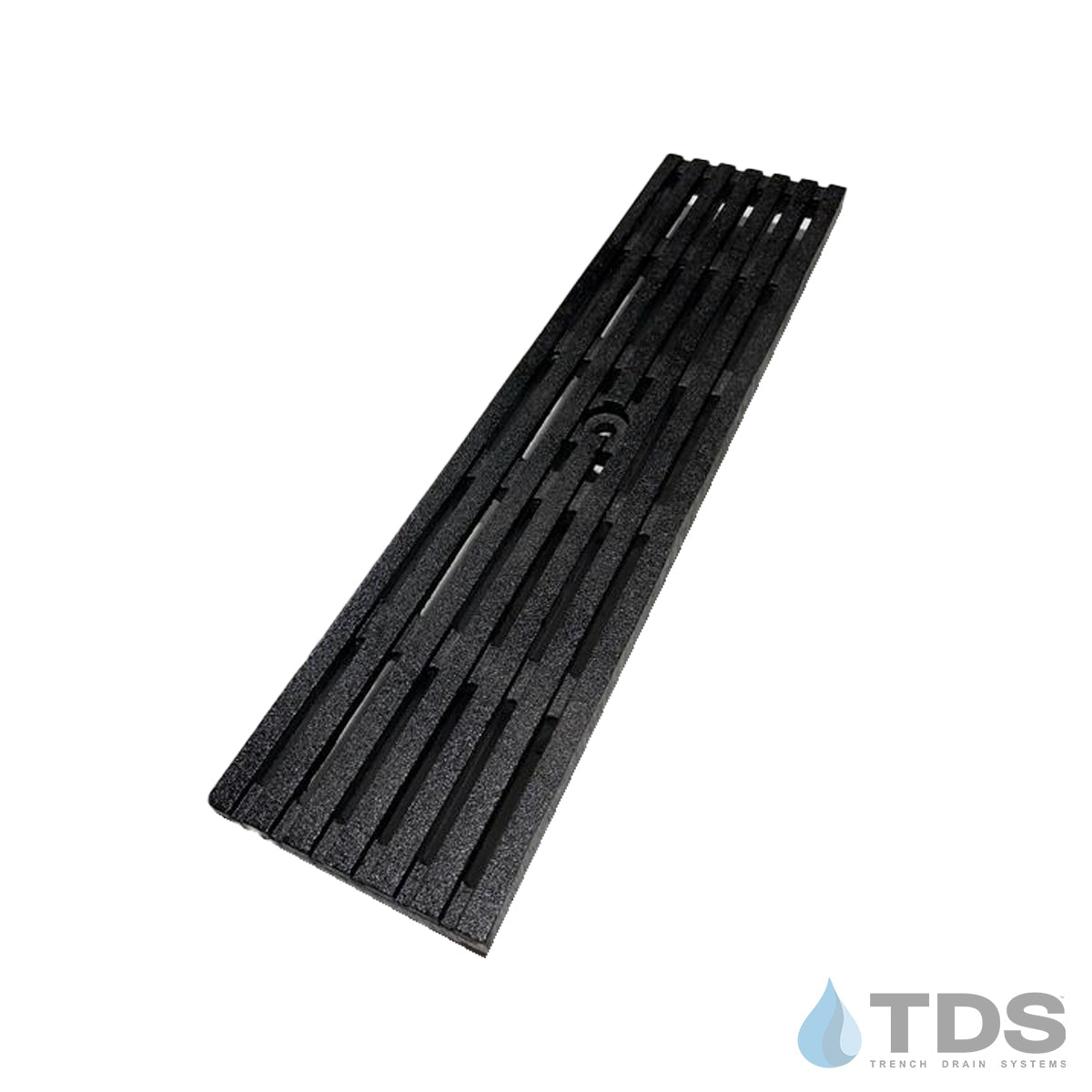

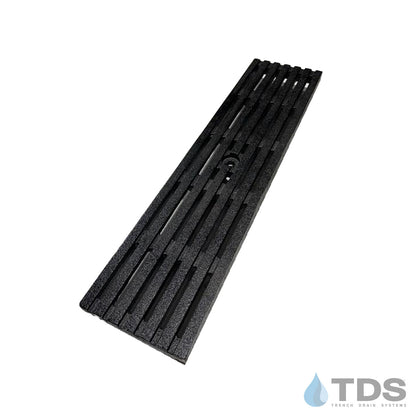

• BA-BARS-0520 – Ductile Iron Slotted Grate – (Load Class E)

Channel Dimensions:

• Height: 220 mm (8.7")
• Width - Outside: 155 mm (6.1")
• Width - Inside: 100 mm (3.93")
• Length: 1 meter (39.3")
• Molded side and bottom outlet

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

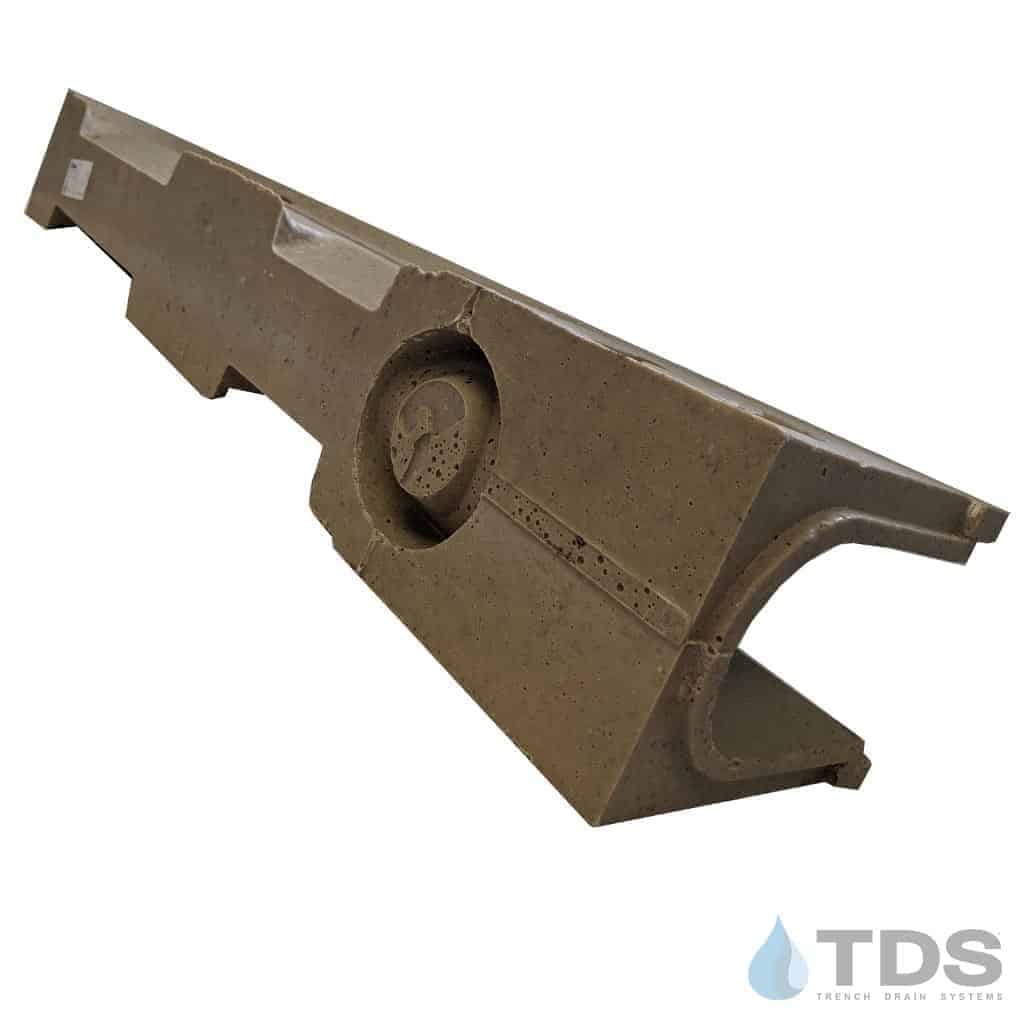

Cut-outs for the side or bottom are located on the channel for easy installation. A Core drill is available before shipment (at an additional cost).
