ULMA D100 Drain Channel w/ TDS 424 Slotted Reinforced Galvanized Grate - Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: D100

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Drainage Kit Includes:

• Grate (Galvanized Reinforced Slotted Grate)
• Locking Device (Ld100x-3) (2 per 1M grate)
• Channels – Neutral sections
• Installation Chairs

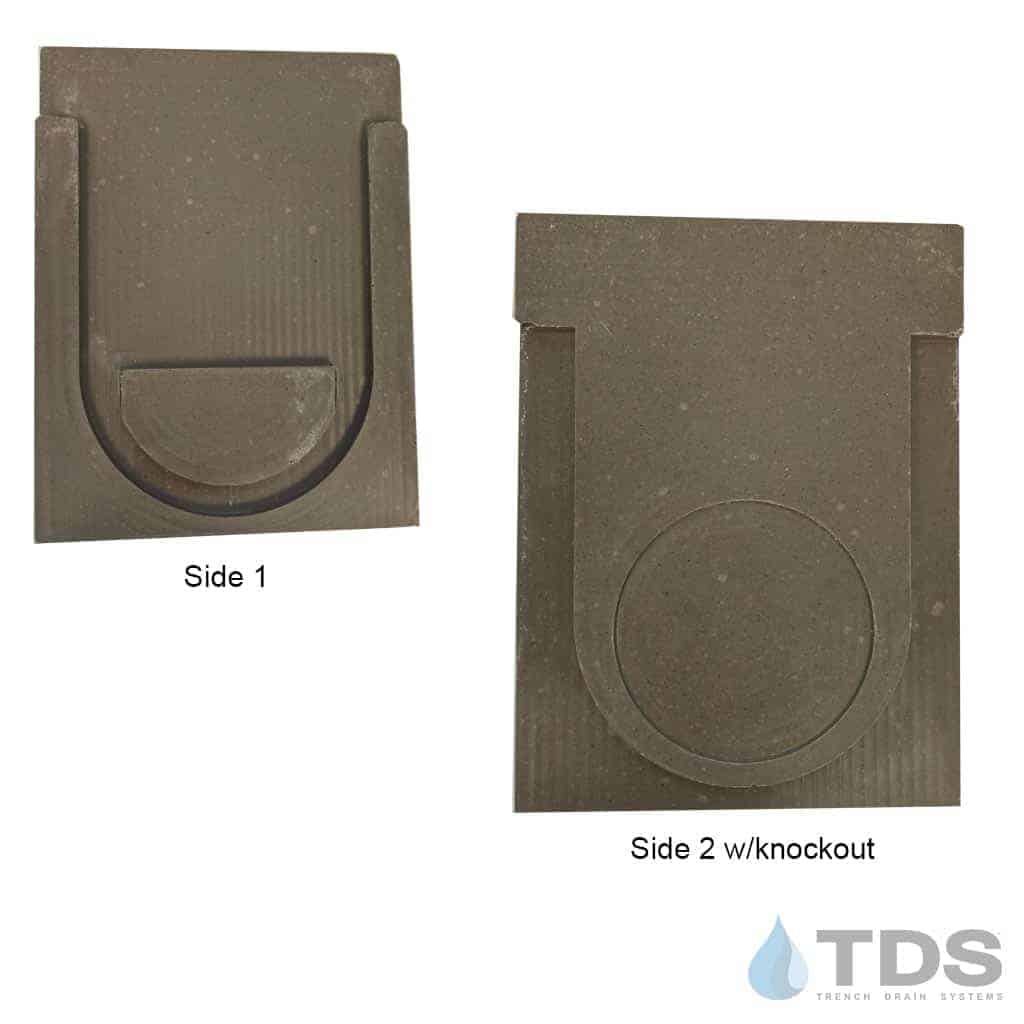

• Universal End Cap/End Outlets

Large project? Request a Quote

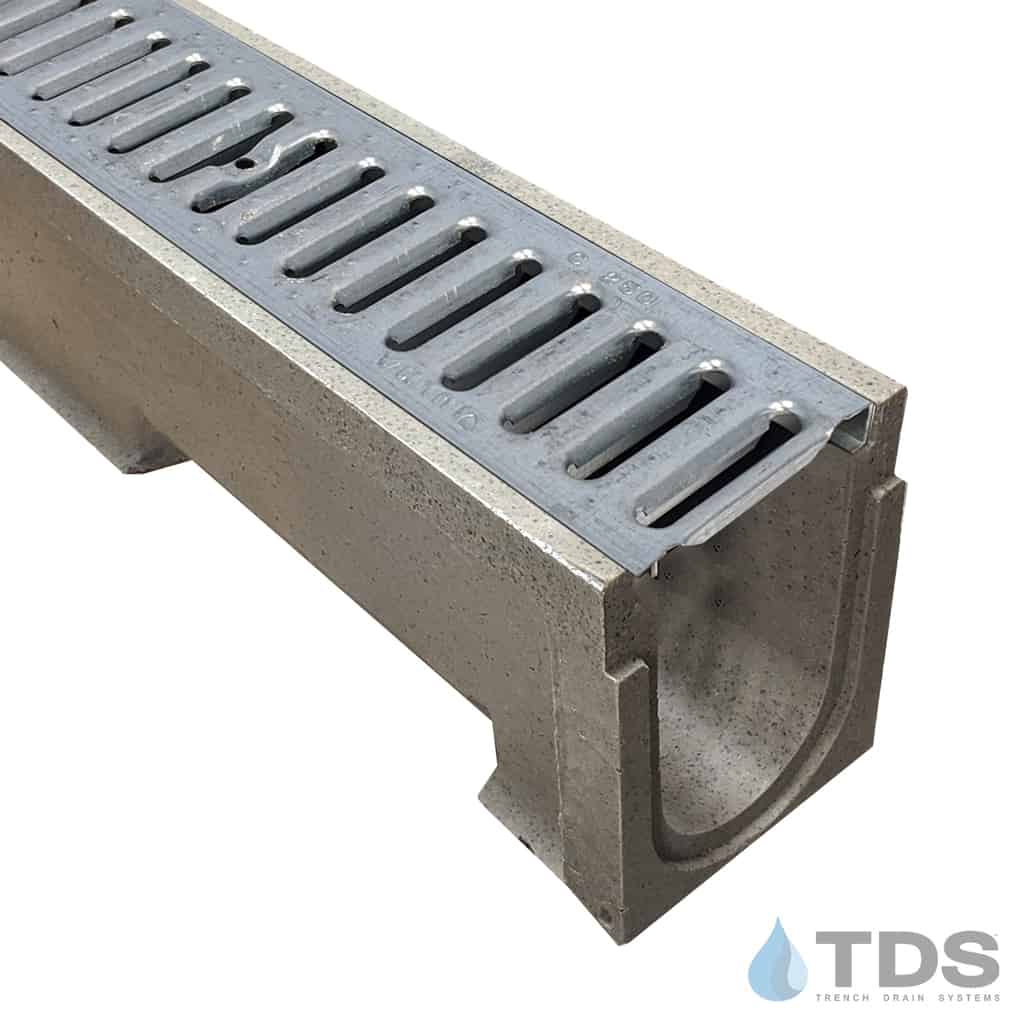

The ULMA D100 is a neutral polymer concrete linear trench drain channel with stepped edges for lateral protection. The polymer concrete material allows the channels to have higher impact-resistance. It also provides a smooth channel surface with a near zero absorption rate which increases the flow rate, in comparison to concrete which has a 5-10% absorption rate. The ULMA D100 channels are resistant to 59 different chemicals. (Not rated for sanitary or high-temp applications.)

Drainage Kit Includes:

• Grate (Galvanized Reinforced Slotted Grate)
• Locking Device (Ld100x-3) (2 per 1M grate)
• Channels - Neutral sections
• Installation Chairs
• Universal End Cap/End Outlets

Grating:

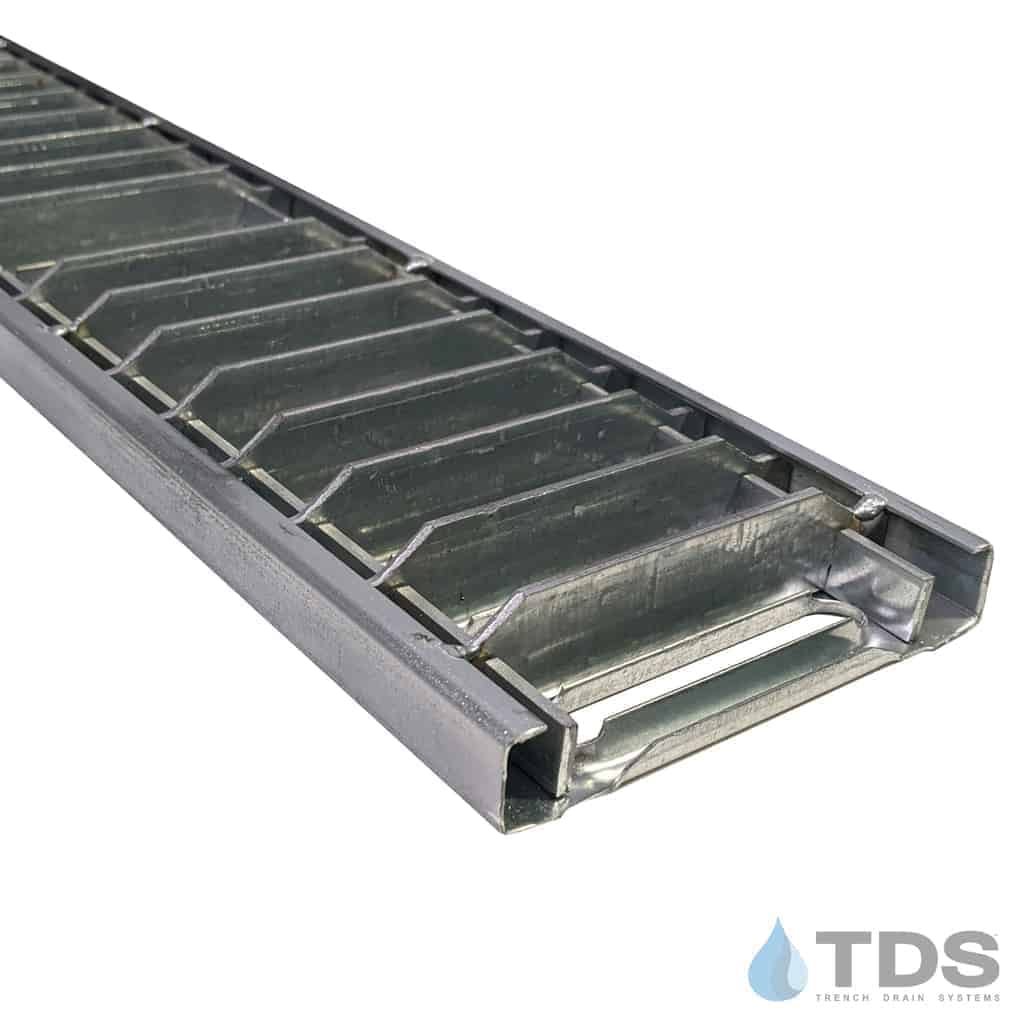

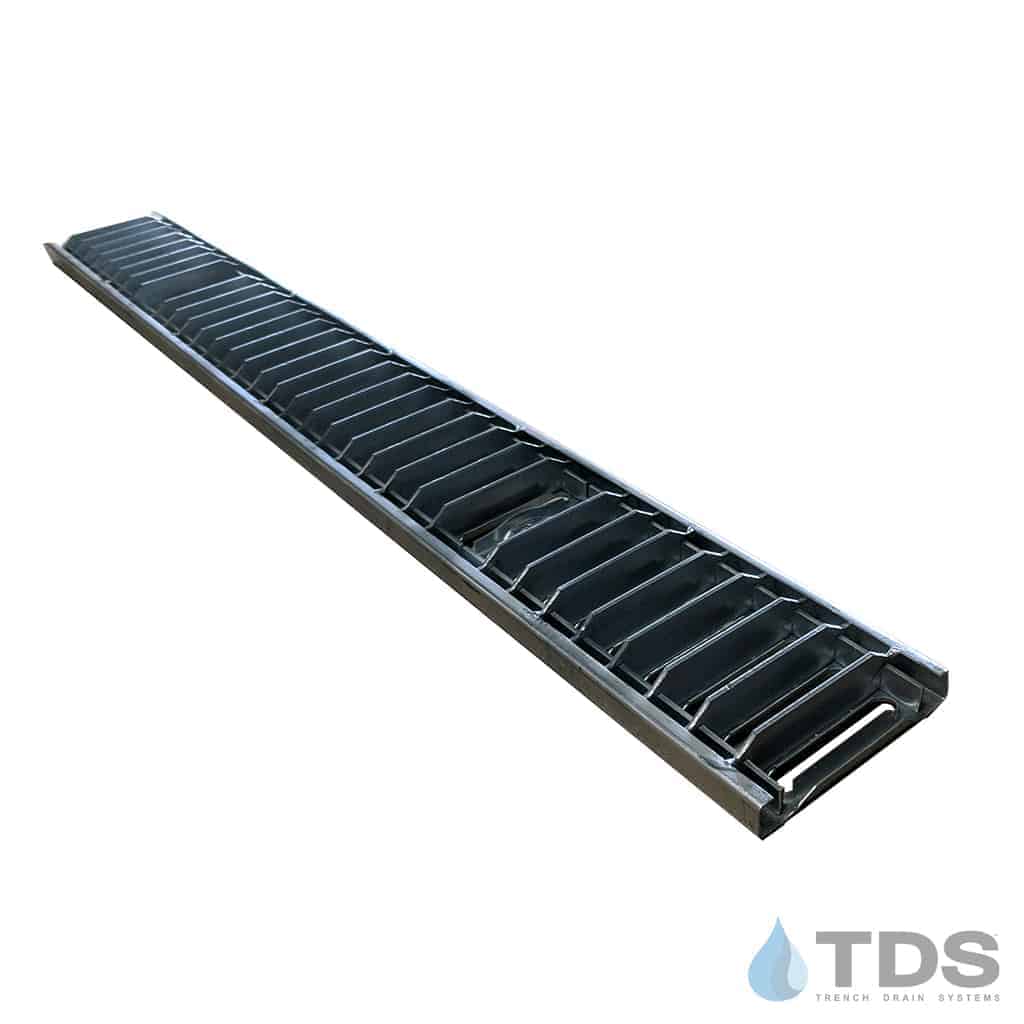

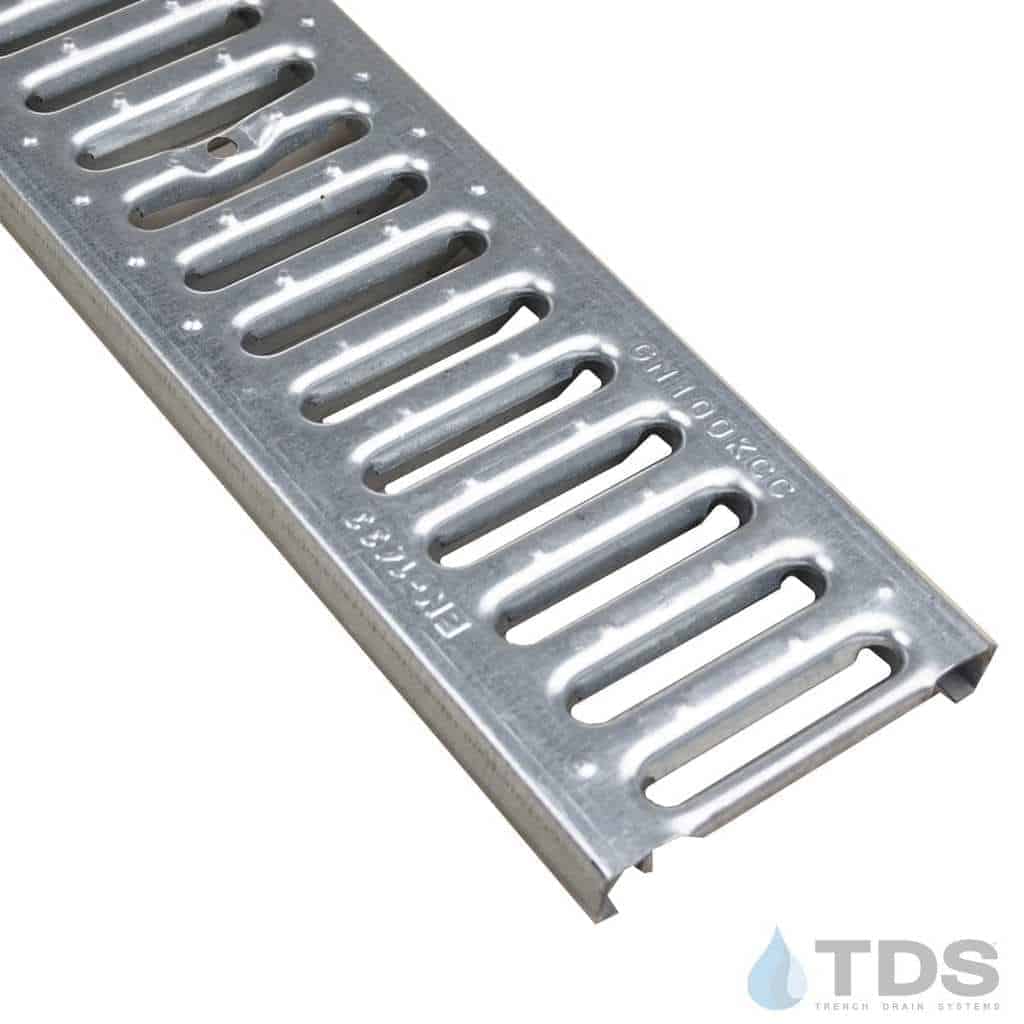

• 424 – Galvanized Reinforced Slotted Grate – (Load Class C)
• Hot-dip Galvanized and cold-rolled steel
• ADA-Compliant
• Color: Silver

Specification Sheet for ULMA 424

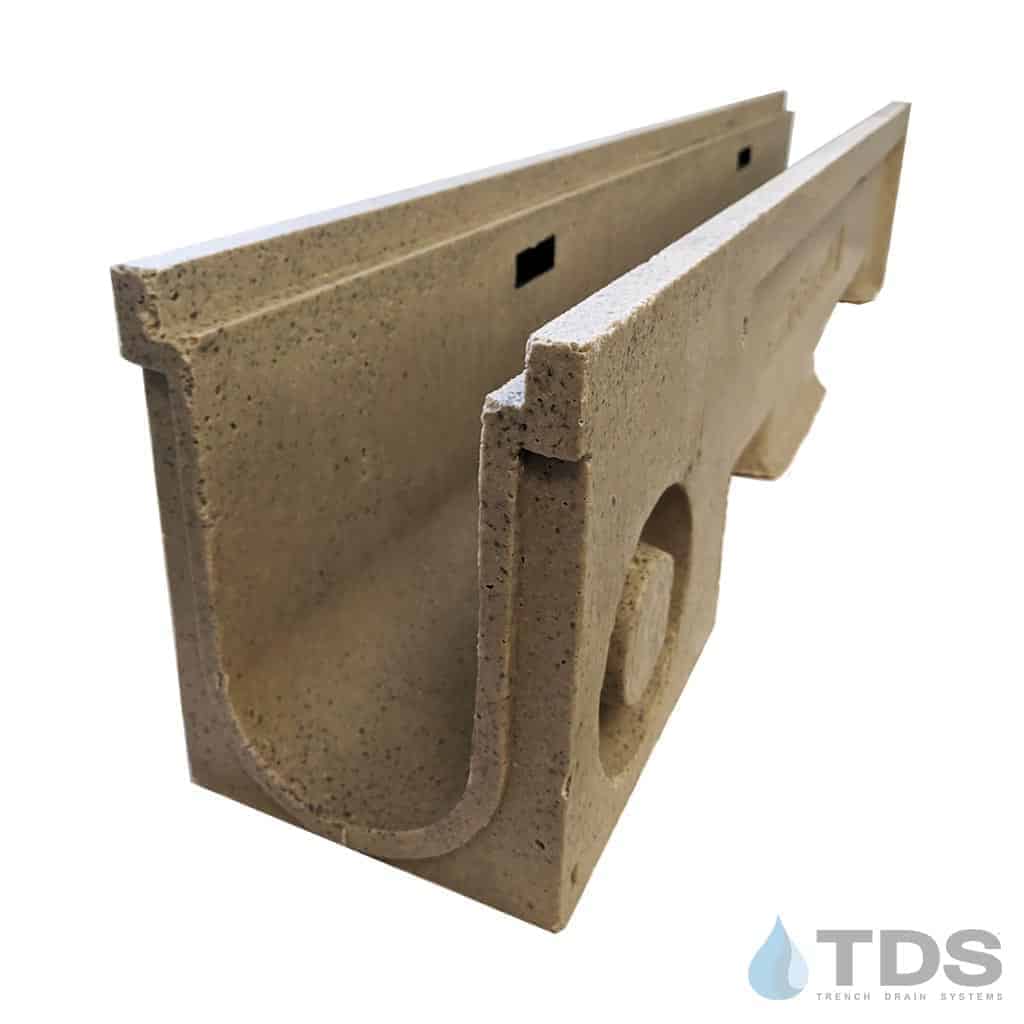

Channel Dimensions:

• Height: 220 mm (8.7")
• Width - Outside: 155 mm (6.1")
• Width - Inside: 100 mm (3.93")
• Length: 1 meter (39.3")

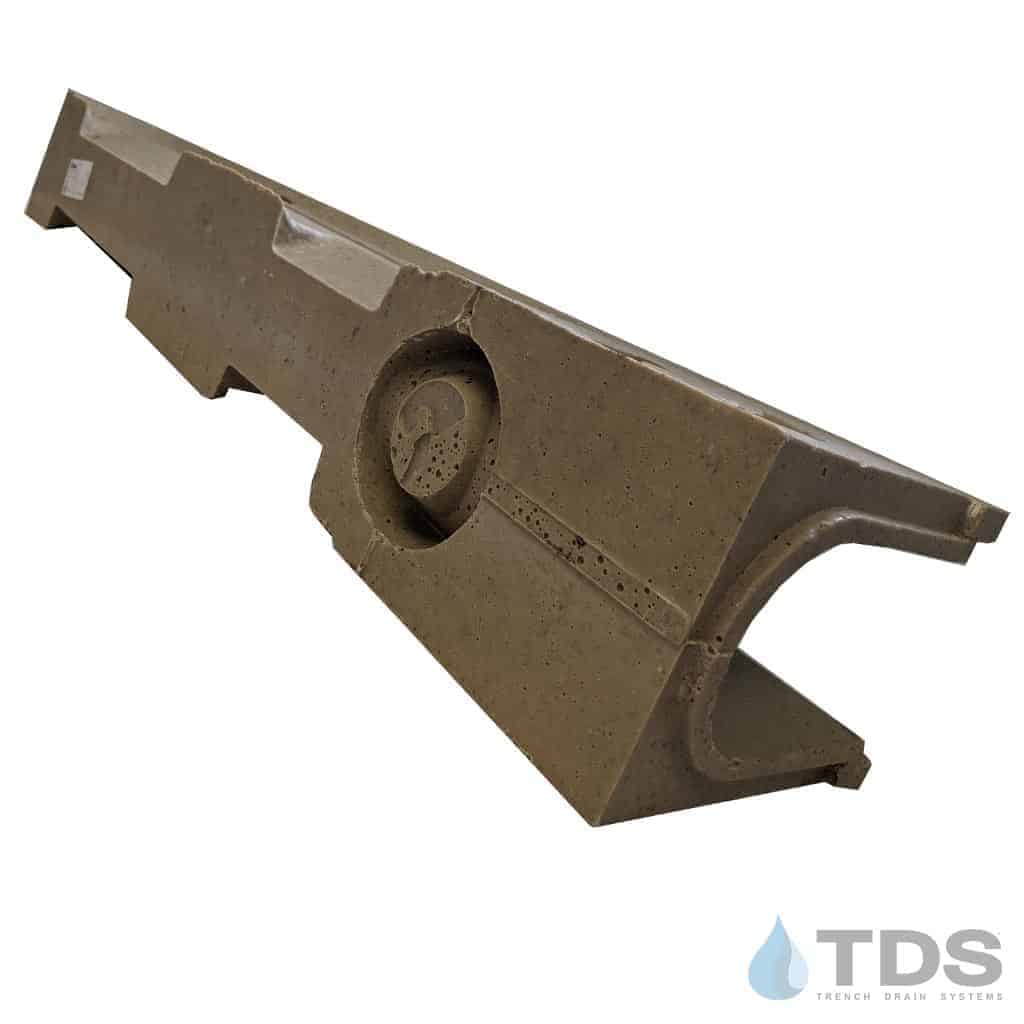

• Molded side and bottom outlet

Cut-outs for the side or bottom are located on the channel for easy installation. A Core drill is available before shipment (at an additional cost).
