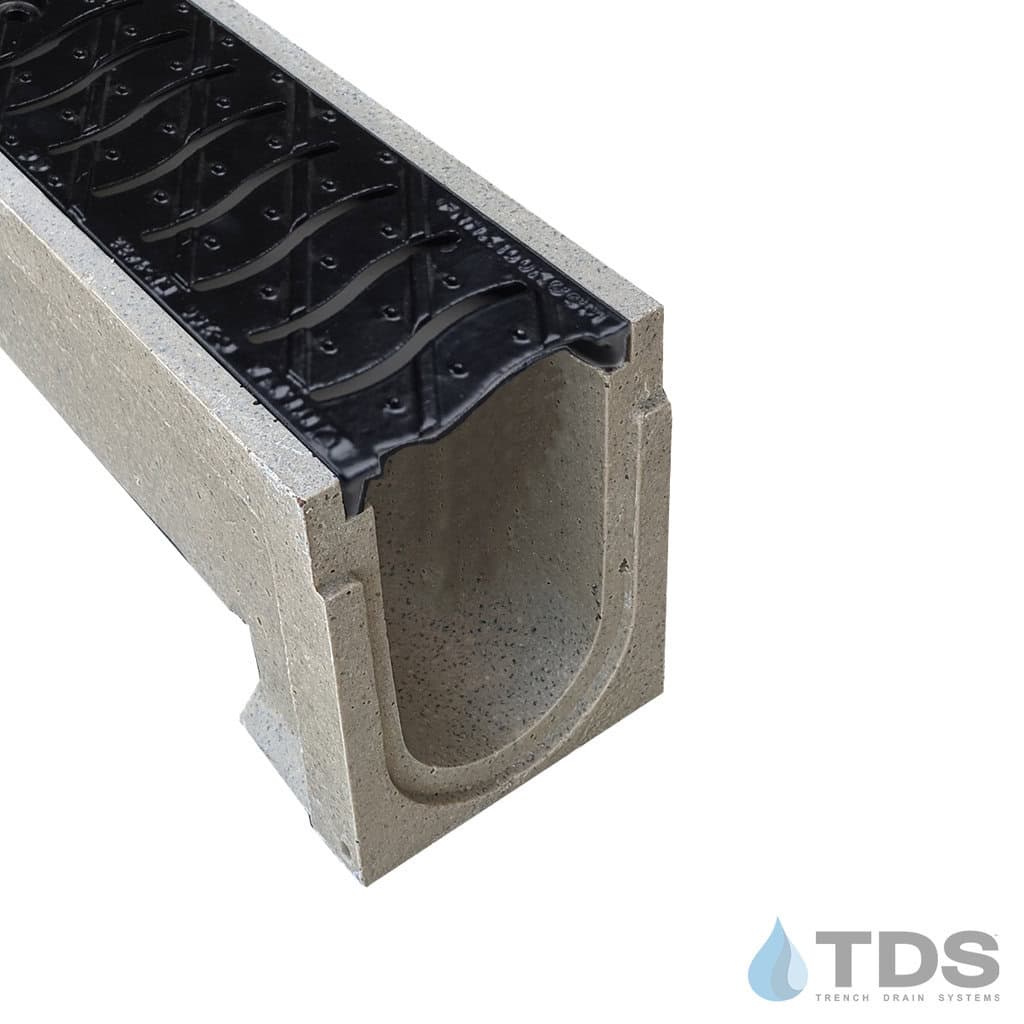

ULMA D100 Drain Channel w/480 Slotted Ductile Iron Grate - Class C

Drainage Kit Includes:

• Grate (Ductile Iron Slotted Grate)
• Locking Device
• Channels – Neutral sections
• Installation Chairs
• Universal End Cap/End Outlets

Large project? Request a Quote

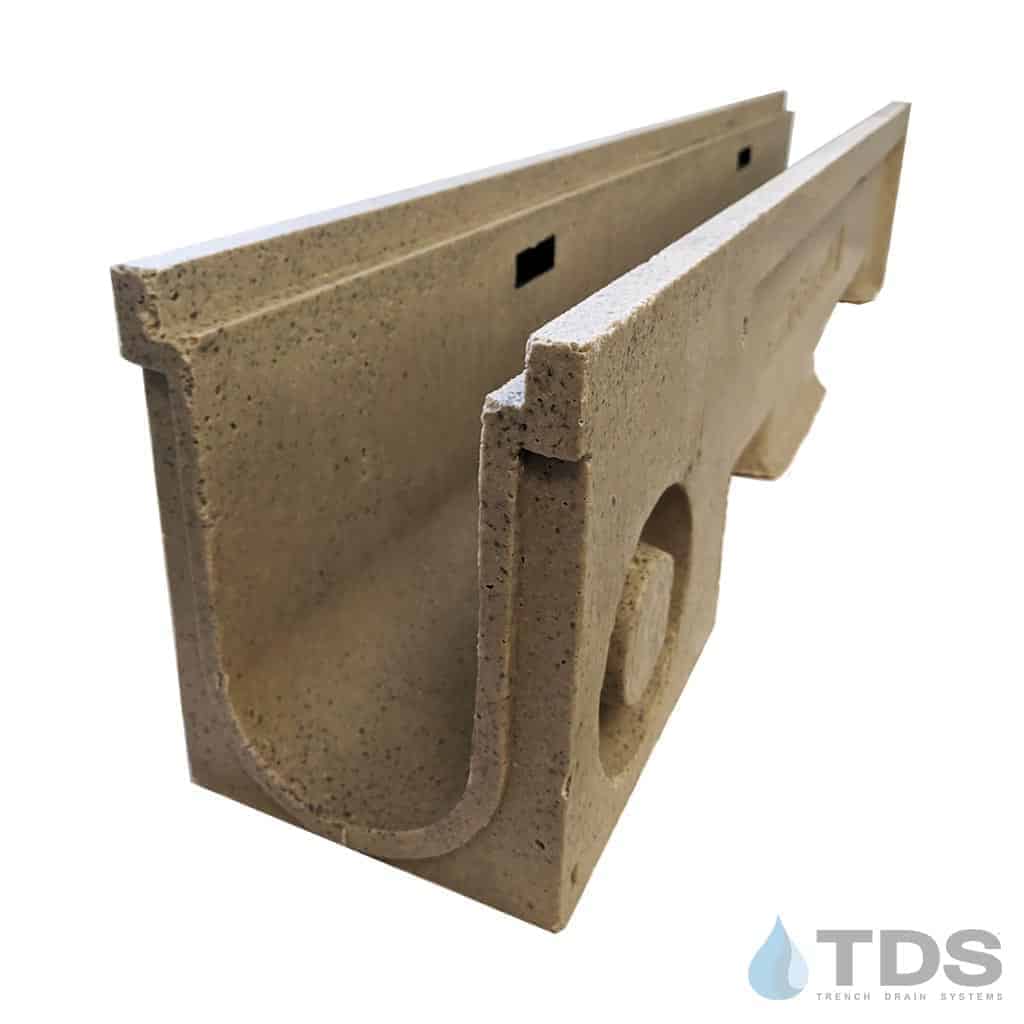

The ULMA D100 is a neutral polymer concrete linear trench drain channel with stepped edges for lateral protection. The polymer concrete material allows the channels to have higher impact resistance. It also provides a smooth channel surface with a near zero absorption rate which increases the flow rate, versus standard concrete which has a 5-10% absorption rate. The ULMA D100 channels are resistant to 59 different chemicals. (Not rated for sanitary or high-temp applications.)

Drainage Kit Includes:

• Grate (Ductile Iron Slotted Grate)
• Locking Device
• Channels - Neutral sections
• Installation Chairs
• Universal End Cap/End Outlets

Grating:

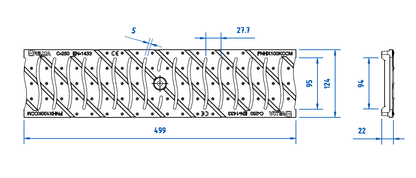

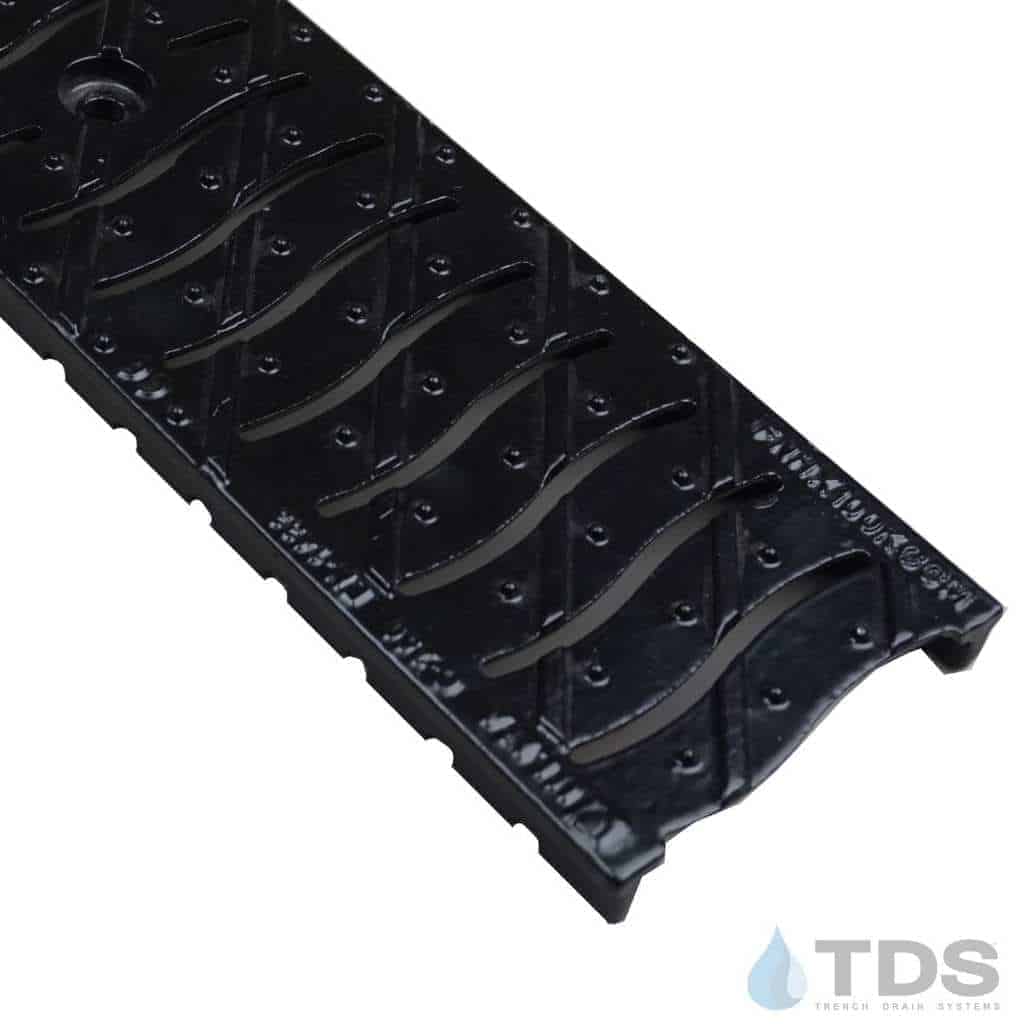

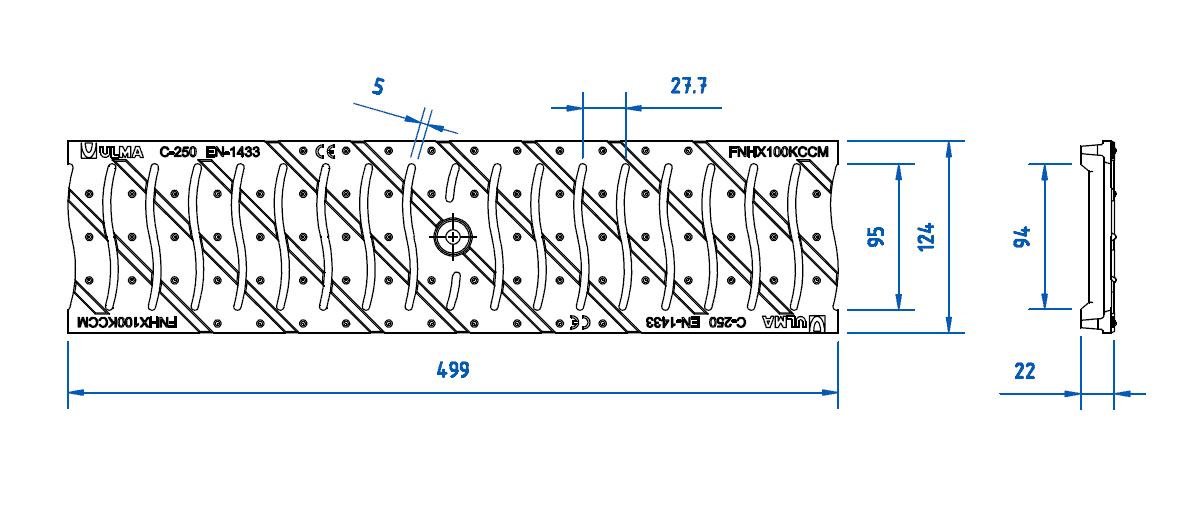

• 480– Ductile Iron Heel-Proof Slotted Grate – (Load Class C)
• Color: Black

Specification Sheet for ULMA 480

Channel Dimensions:

• Height: 220 mm (8.7")
• Width - Outside: 155 mm (6.1")
• Width - Inside: 100 mm (3.93")
• Length: 1 meter (39.3")

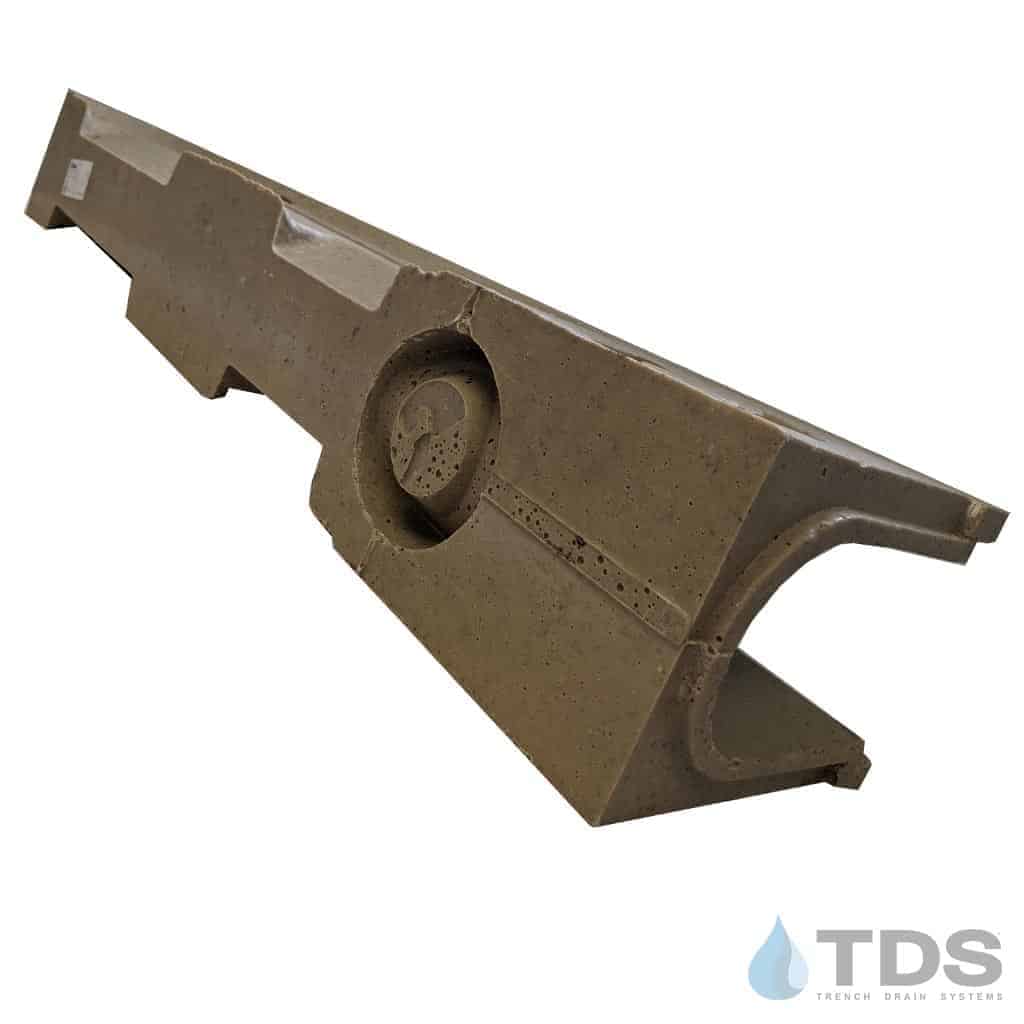

• Molded side and bottom outlet

Cut-outs for the side or bottom are located on the channel for easy installation. A Core drill is available before shipment (at an additional cost).
