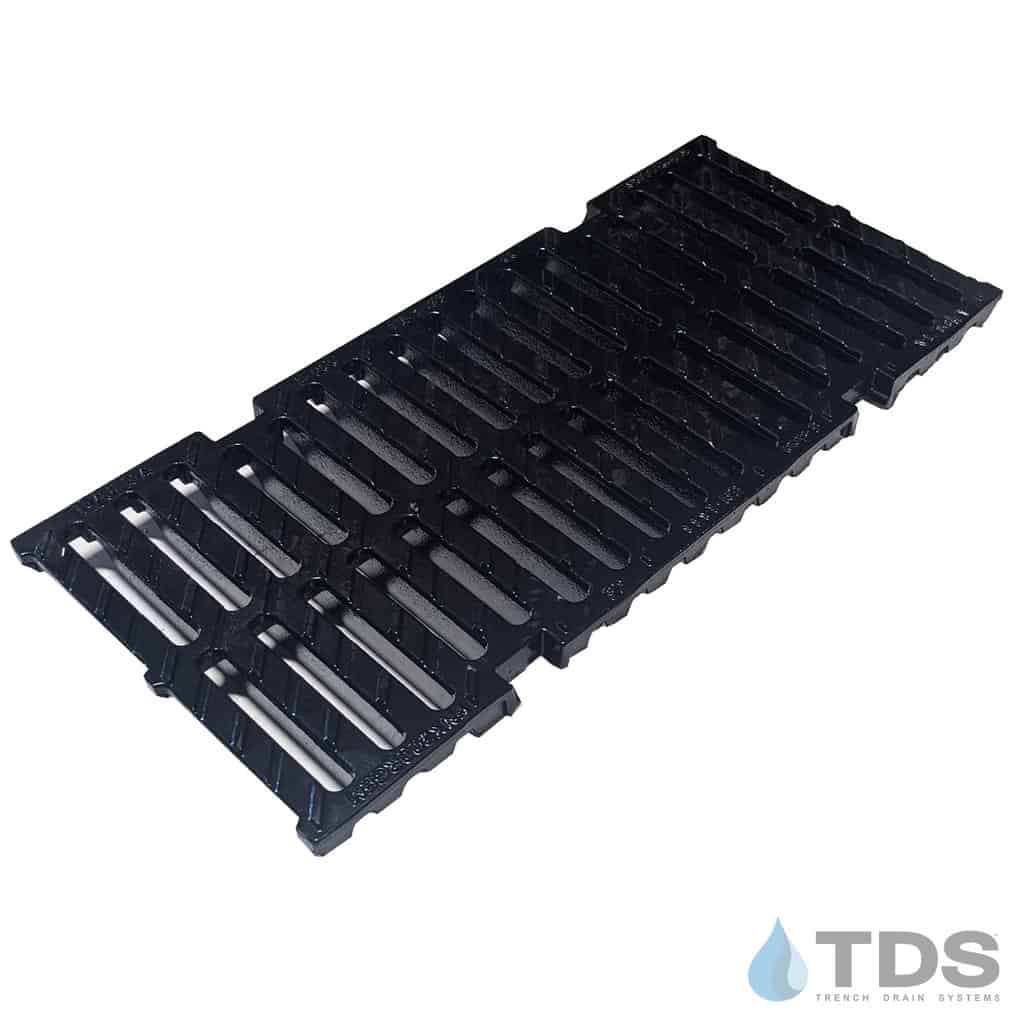

ULMA 661 Slotted Ductile Iron 9x20 Class E Grate - MultiV+200

Grate Width: 9.00"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA

System: MultiV+200D, MV+200K, and MV+200KX

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Ductile Iron, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

ULMA 661 (FNX200RGEM) slotted ductile iron grate is measured at 277mm x 498mm and follows Load Class D400, EN1433 standard rating. This Non-slip slotted grate is made with 45° grooves and ridges to help direct water and includes a boltless Rapidlock system often found in the MultiV+200 trench drain systems. It is suitable for a variety of applications, including parking lots, commercial, and pedestrian traffic areas.

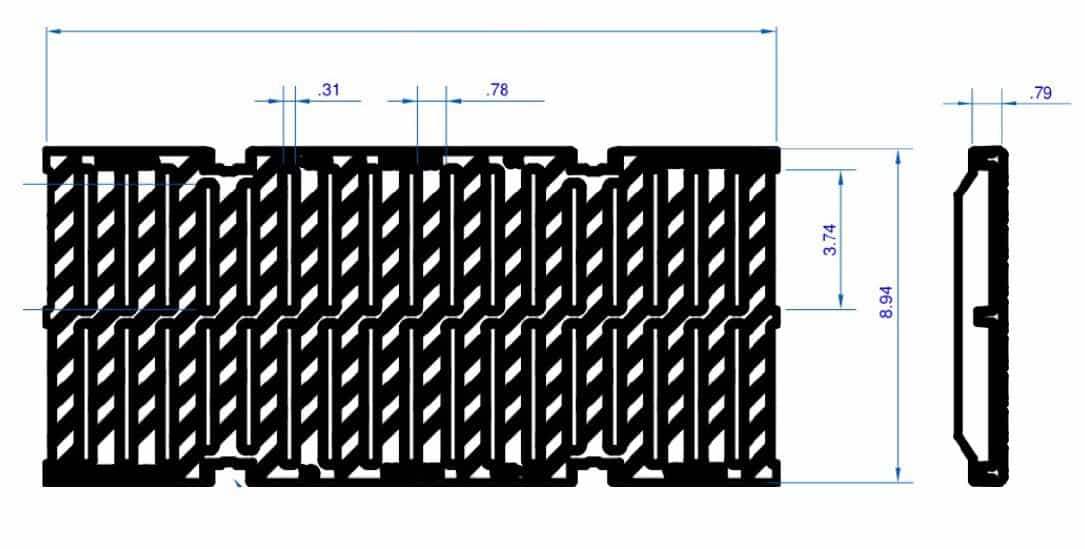

Actual Dimensions: 8.94″ [227 mm] x 19.60″ [498 mm] x .79″ [20 mm]

Water Flow Area: 920 cm²/lm

Specification Sheet for ULMA 661 / FNX200RGEM

Designed to fit: MultiV+ (100/150/200)
