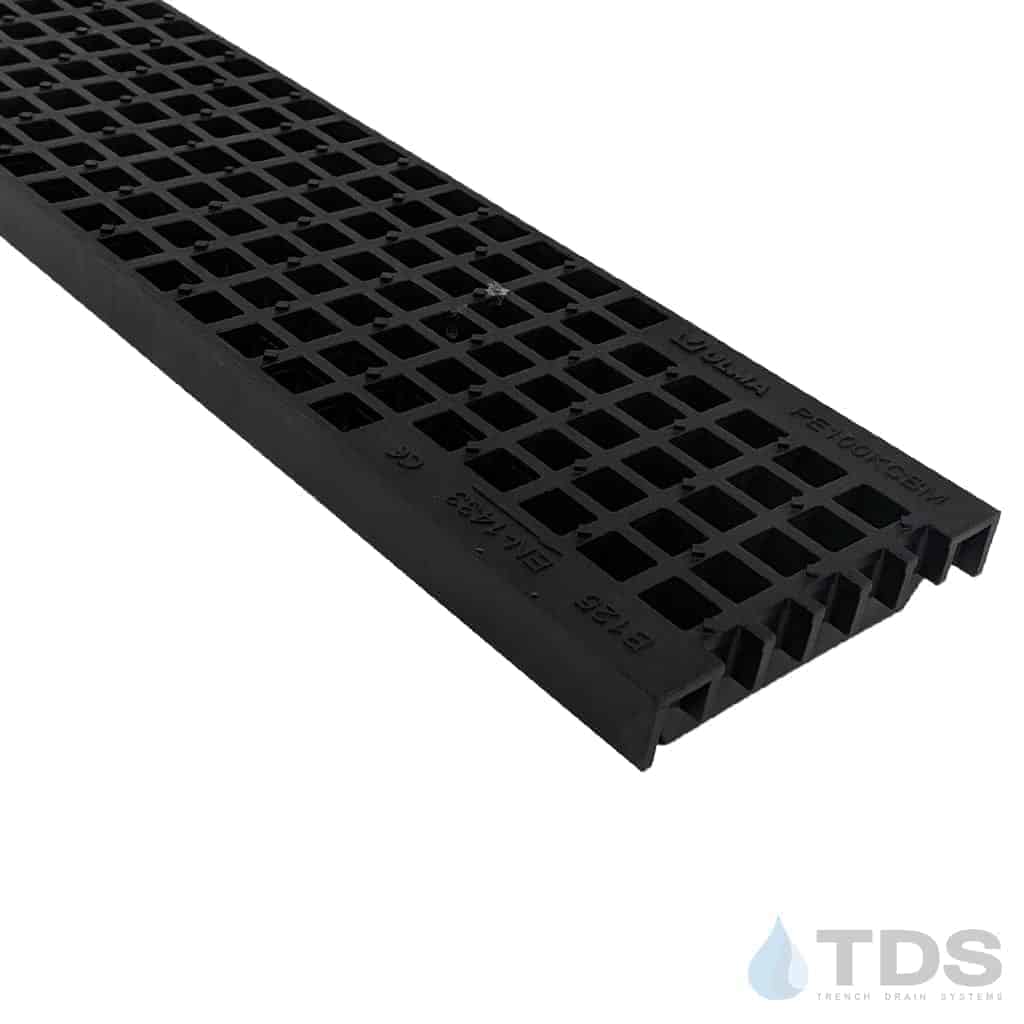

ULMA 497 / PE100KCBM Class B ADA Compliant Mesh HDPE 123mm x 500mm Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Black

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Large project? Request a Quote

The ULMA Mesh design Polypropylene grate (ULMA Number PE100KCBM) fits your ULMA or MEArin channels. This grate is 123 mm wide and 500 mm in length. Two grates are required for each one meter channel. This grating has a load class B rating and complies to ADA standards and is Non-Slip.

Locking device sold separately:

• The LD100X-1 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-1 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.

ULMA/MEArin 497 ADA Mesh Polypropylene Mesh Grate Specification Sheet
