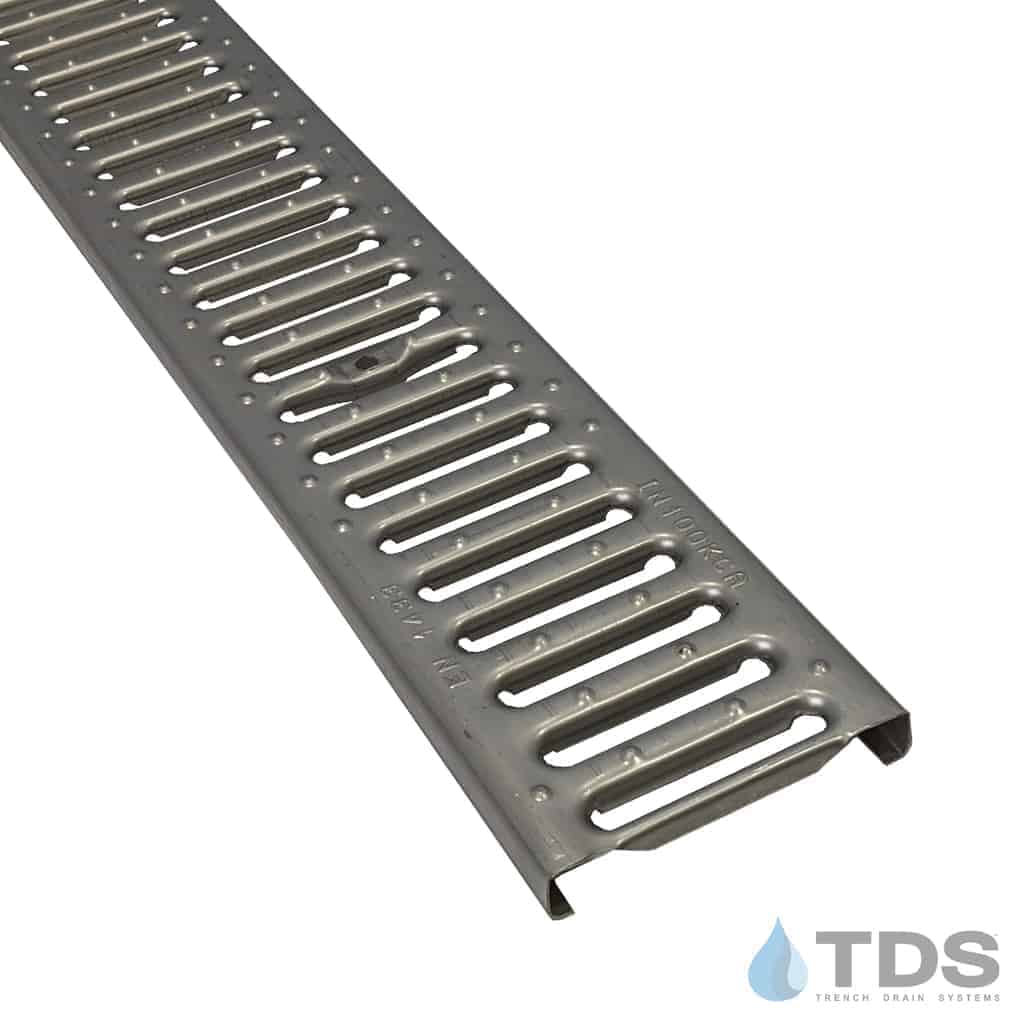

ULMA 450 / IN100KCA Stainless Steel Slotted Grate 1M Load Class A

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Stainless Steel Slotted Grate (1 M) – Class A
For use with ULMA, MEArin, ABT and other metric trench drain systems.

Large project? Request a Quote

Stainless Steel Slotted (450) grate is non-slip and rated as a Load Class A

Actual Dimensions: 122mm (4.8 in) X 1M (39.33 in) x 21mm (0.826 in)

450 IN100KCA Specification Sheets

Locking device sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.
