ULMA 440 / IP100KCA Class A Perforated w/Tread Stainless Steel 124mm x 1M Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

An Excellent alternative to the 0.5M MEArin100 152207 grate.
Large project? Request a Quote

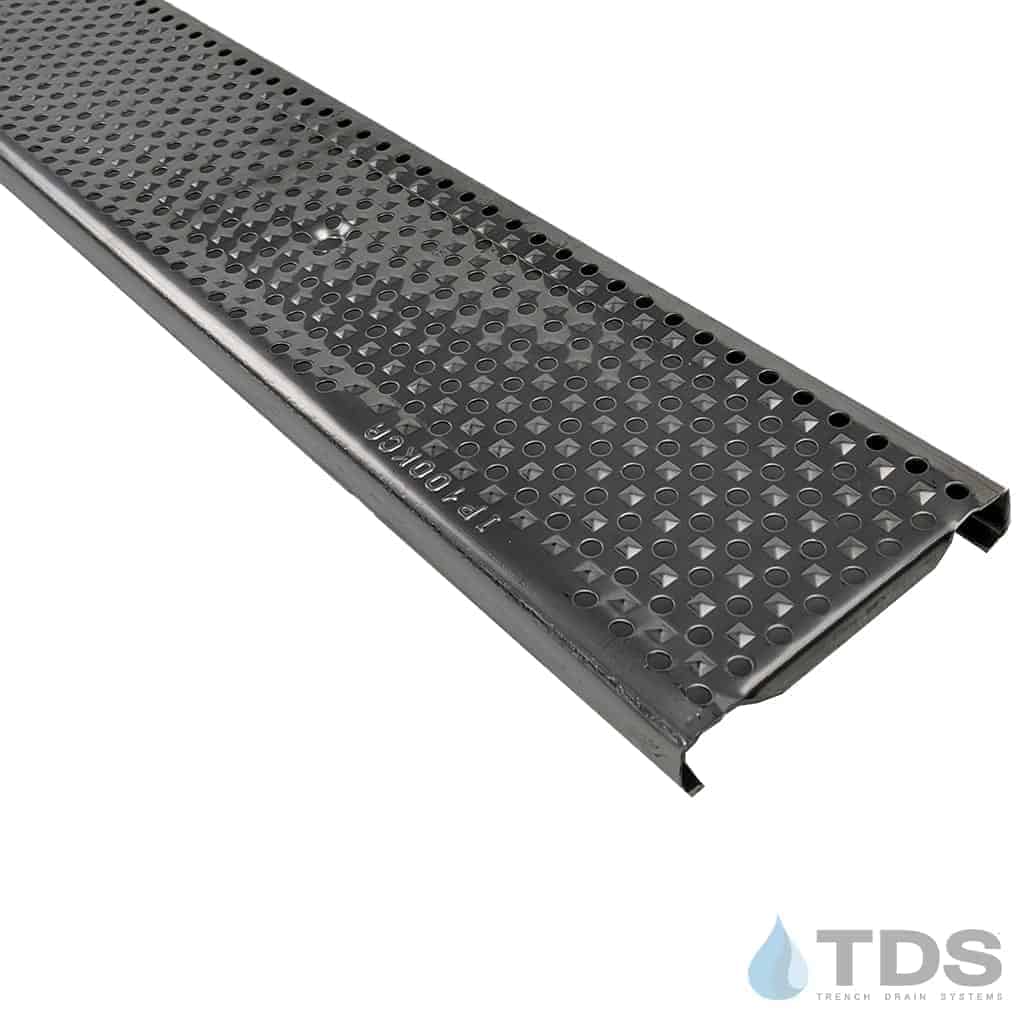

Non-slip perforated stainless steel grating 124mm x 1M with 2 point locking bar system per linear meter. This grate is ADA compliant with 6mm (0.236in) perforations for protecting heels. AISI 304 Stainless Steel, Load Class A15, EN 1433 Standard. This grate is excellent for areas that see a high volume of foot traffic or corrosive environments such as spas, pools, patios, sidewalks and kennels.

Locking device sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.

ULMA IP100KCA 440 Grate Specification Sheet
