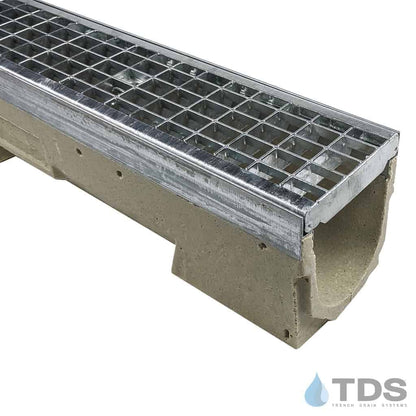

ULMA U100K Drainage Kit with ULMA 402 Mesh Grate | Galvanized

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: U100K

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

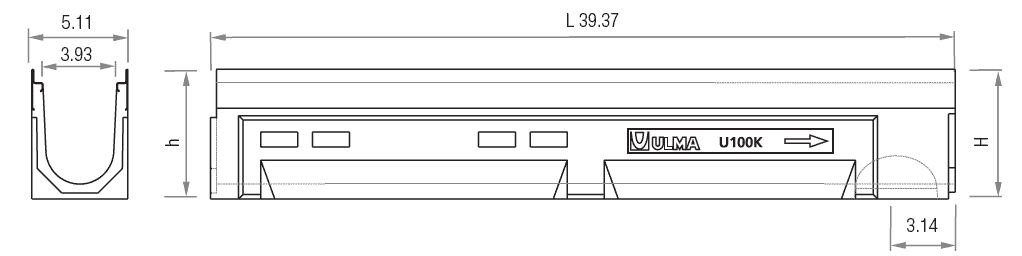

ULMA U1K Polymer concrete Linear Drainage Channel with integrated Galvanized edge.  External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rain water in 1 meter long units. Locking system consists of locking bar CS 100 and screws.

ULMA grate part no.: GEX100KCB
TDS grate part no.: 402

Galvanized Steel Mesh Grate (1M) has a Load Class B
