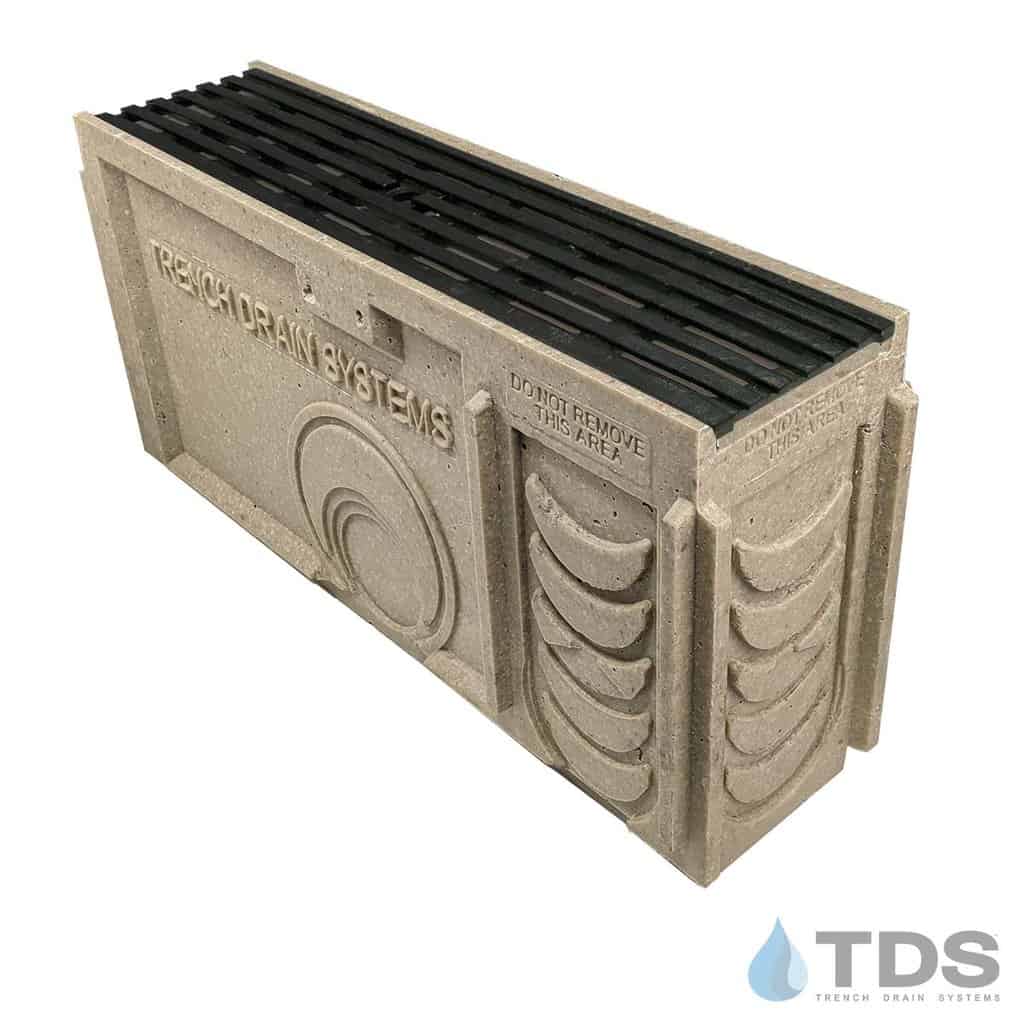

TV0650S (Shallow) Catch Basin Kit w/ DG0675HD for POLYCAST®

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class D

Grate Pattern: TRANSVERSE SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

VINYL ESTER FOR EXTREME CHEMICALS/TEMPERATURES

Large project? Request a Quote

If the application does not involve harsh conditions, standard POLYCAST® channels are an economical alternative.

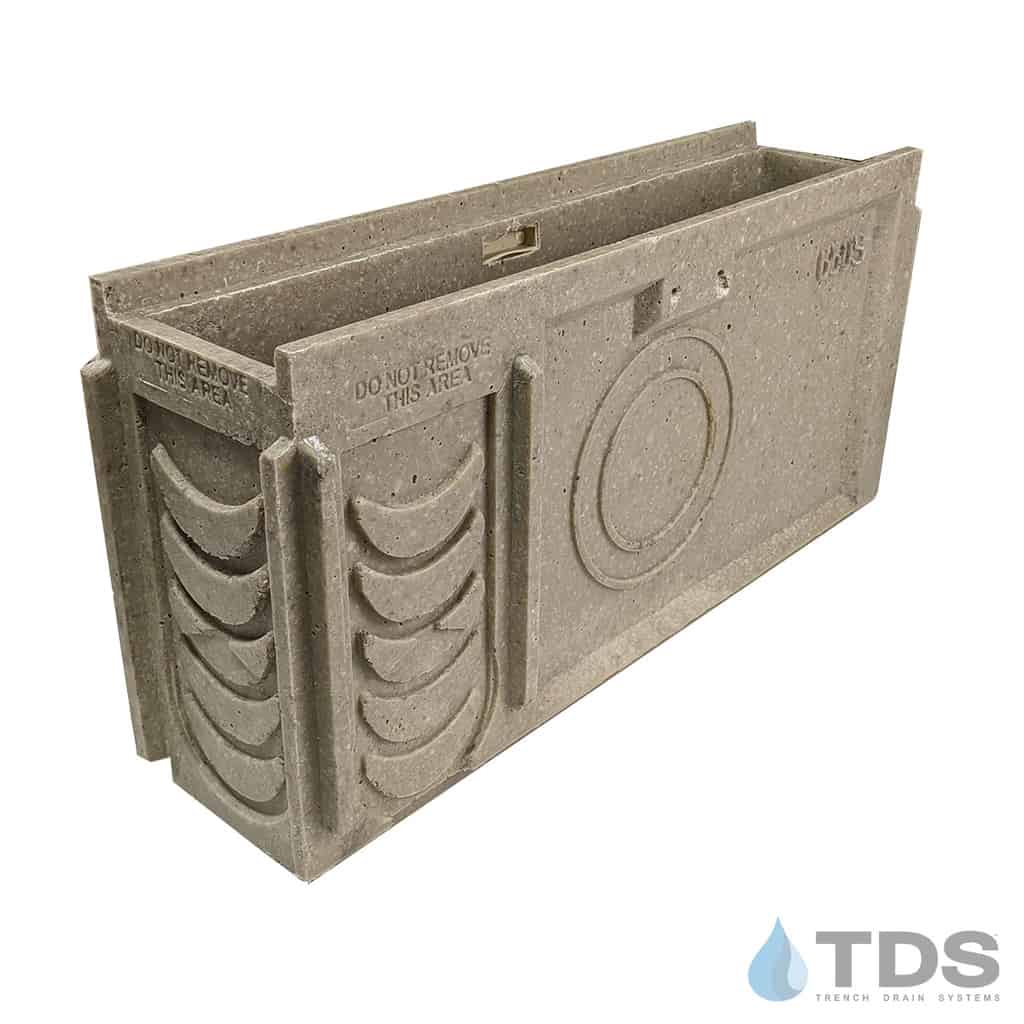

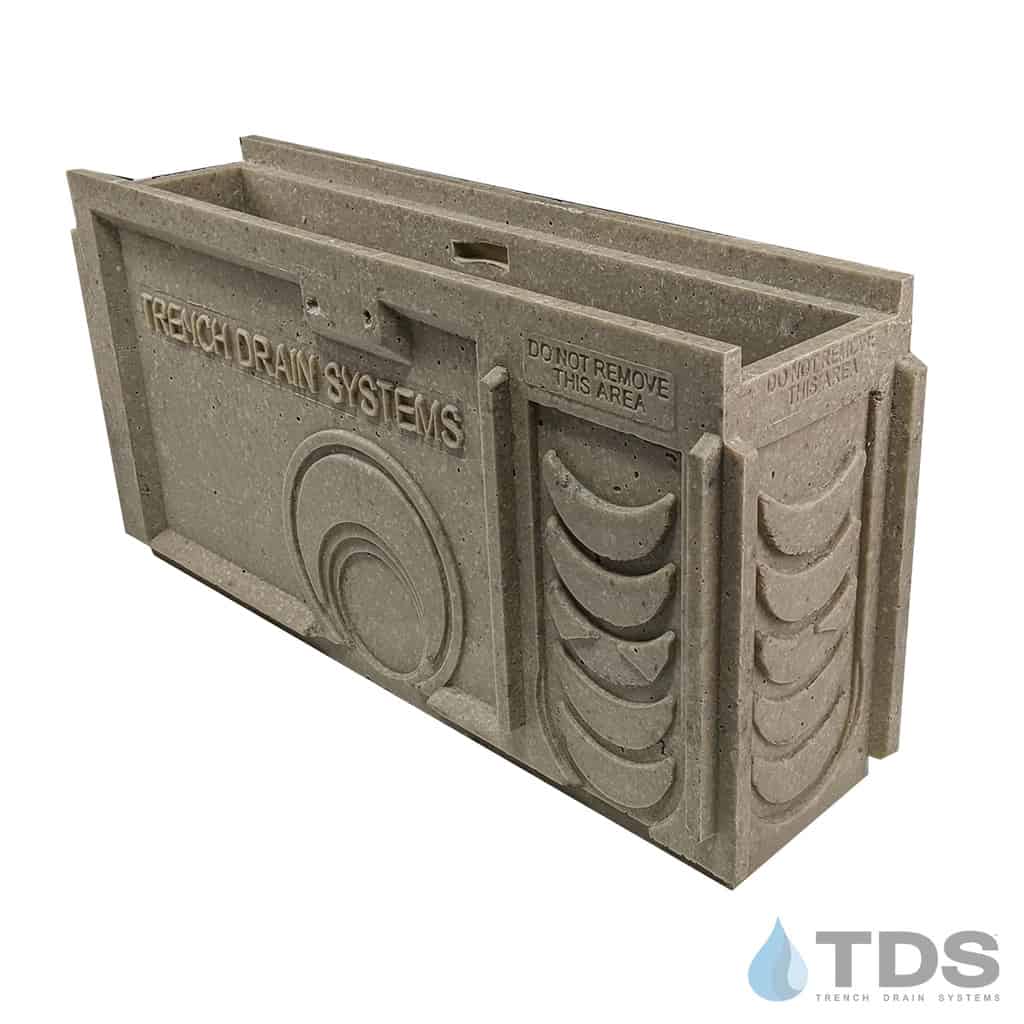

The TDS shallow vinyl ester catch basin is an important part of a pre-sloped drainage system. These vinyl ester polymer shallow catch basins are made with chemically inert materials and are resistant to high temperatures. This series is perfect for breweries and other industries that experience extreme conditions.

The TV0650S can be used as an individual catch basin or in tandem with a vinyl ester POLYCAST® trench drain system. This neutral short catch basin accepts the same grating options, edging, and frames as the POLYCAST® 600/700 drain systems.

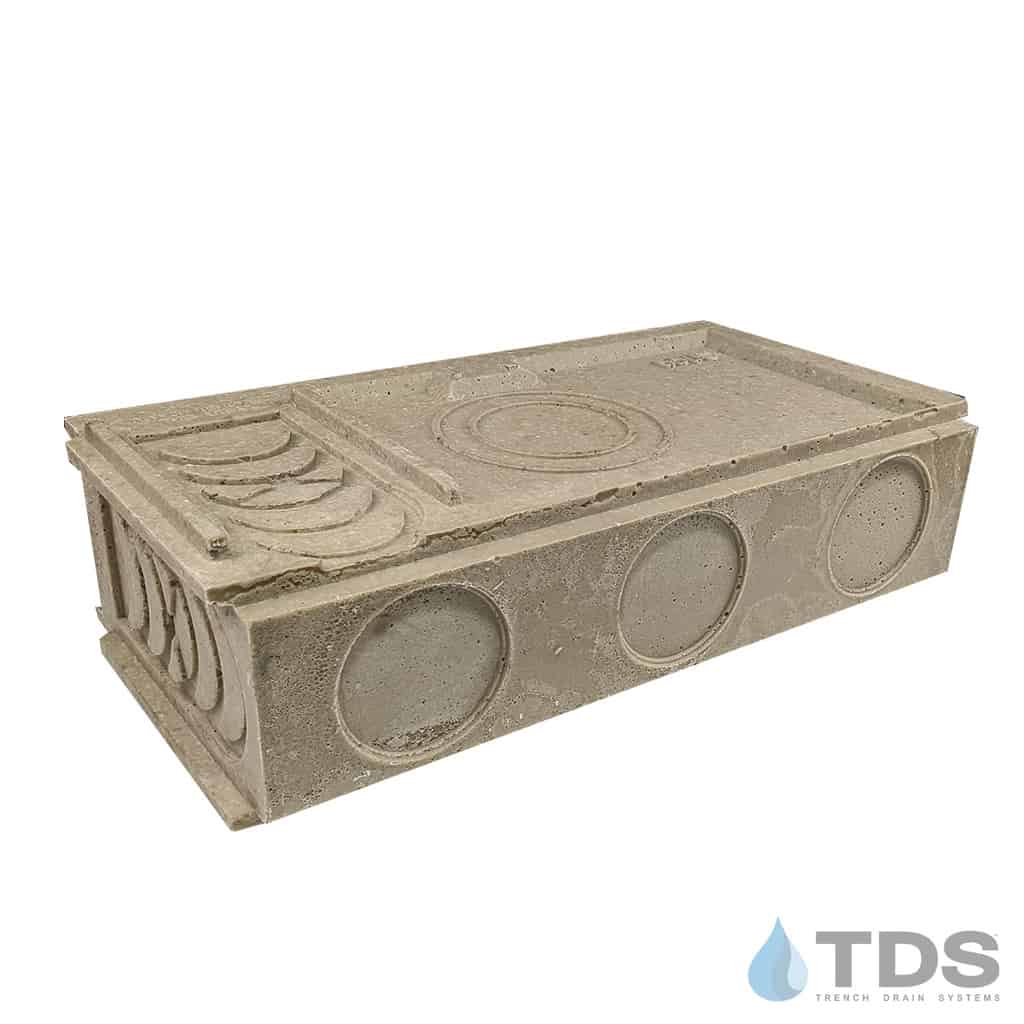

Cut-outs for side, bottom, and end outlets are located on the catch basin for ease of installation. A core drill is available before shipment (at an additional cost).

Catch Basin Actual Dimensions: 6 1/4″W x 24″L x 12″H

DG0675HD Grate Specification Sheet

Grating:

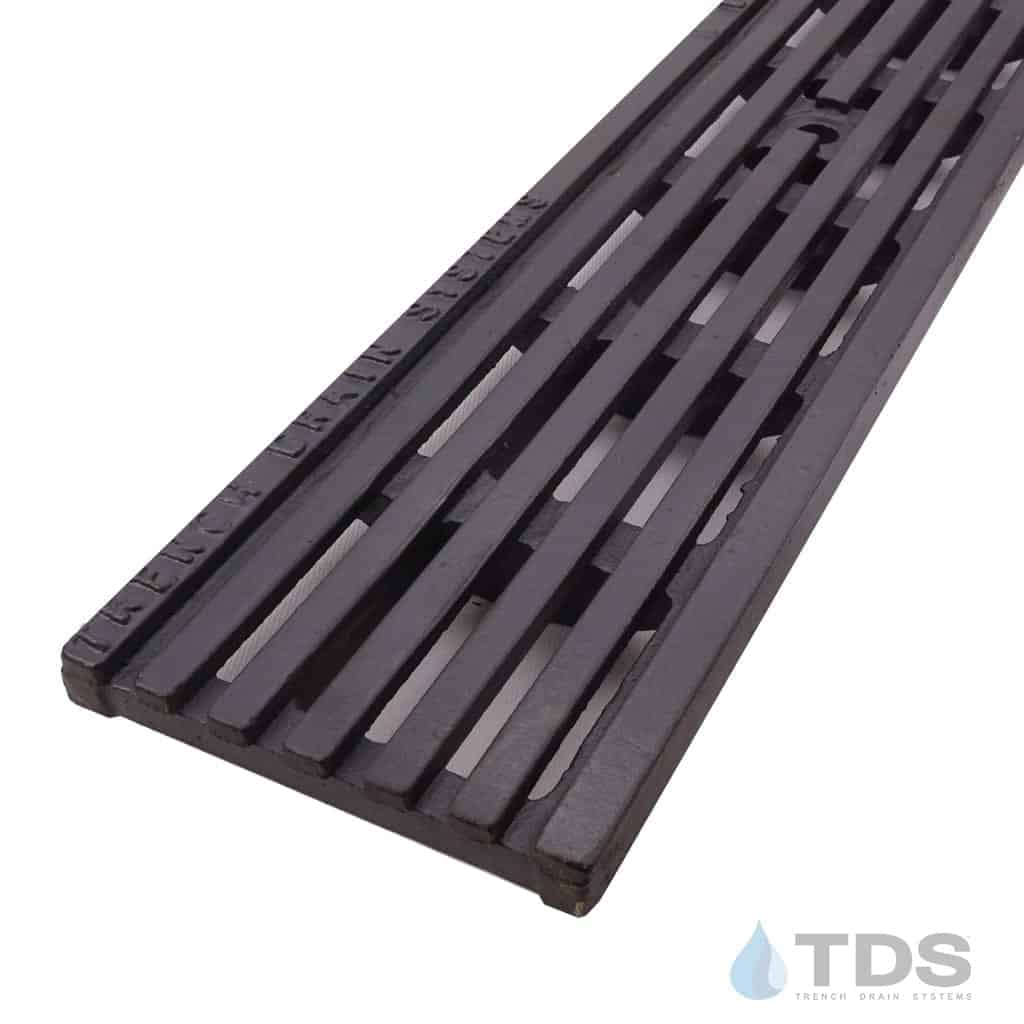

• DG0675HD - Ductile Iron Transverse Slotted Grate - (Class D Load Rating)
• Open Surface Area: 26% (32IN2)
• Color: Black

Catch Basin Kit Includes:

• Grate (Ductile Iron Transverse Slotted Grate)
• Locking Device
• Catch Basin
